- Page 1 NANOSECOND HIGH VOLTAGE RECTANGULAR WAVEFORM PULSE GENERATOR NRG1001 USER MANUAL v. 0.1 © 2018 Megaimpulse Ltd.
- Page 2 FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF MEGAIMPULSE LTD. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
-
Page 3: Table Of Contents
Front and rear panels view ................6 Package content ....................7 Putting the generator into operation ..............8 Triggering of the generator ................11 SYNC OUT pulse ..................... 12 Fuse replacement ....................13 Warranty ......................14 User manual of NRG1001 HV rectangular pulse generator... -
Page 4: Safety Manual
SAFETY MANUAL Electrical safety NRG1001 generator is high voltage equipment. Please be very careful and operate by qualified personnel only. There is a risk of electric shock, strong electromagnetic interference, damage of generator or other electronic equipment in case of improper use. -
Page 5: Description And General View Of The Generator

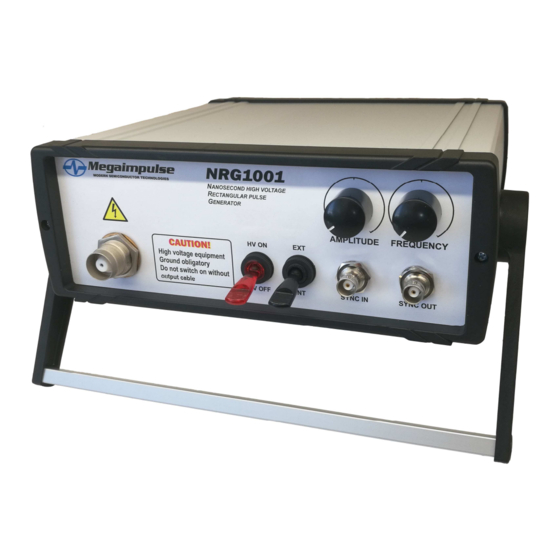

It means that the native load impedance should be equal to 50 Ohm, but NRG1001 can operate also with high impedance or non-linear load. Special internal circuit damps the reflected pulses and limits the after pulse ringing within the acceptable range. - Page 6 Fig.2. General view of NRG1001 nanosecond high voltage rectangular-like waveform pulse generator. Fig.3. Output modules with integrated 1:40 resistive coupler and with or without 1:3 divider. MEGAIMPULSE LTD.
-
Page 7: Technical Specification
BNC connector, +2.4 .. +5V amplitude Output pulse monitoring BNC connector, TTL level Power supply AC 110-230V / 50-60 Hz Size 248 х 90 х 250 mm Weight (without cables) 4.3 kg User manual of NRG1001 HV rectangular pulse generator... -
Page 8: Front And Rear Panels View
- HV ON/HV OFF - high voltage on/off switch –EXT/INT - external/internal triggering toggle switch - BNC SYNC IN connector - AMPLITUDE regulation knob - FREQUENCY regulation knob - BNC SYNC OUT connector - fans - ground terminal MEGAIMPULSE LTD. -
Page 9: Package Content
Two 20dB (1:10) attenuators with SMA connectors SMA-to-BNC adapter User manual Optional item(s): High voltage coaxial cable assembly consisting of RG214/U cable, special HV connector and N-type connector NPG-18/100k(N) nanosecond pulse generator user manual MEGAIMPULSE LTD. User manual of NRG1001 HV rectangular pulse generator... -
Page 10: Putting The Generator Into Operation
3. Screw the cable connector nut by hand, usually one or two turns. Do not rotate the cable connector body. 4. Press the cable connector toward the generator connector again. 5. Again screw the cable connector nut one or two turns. 6. Repeat steps 4 and 5 up to tight contact. MEGAIMPULSE LTD. - Page 11 1V maximum input pulse amplitude only. Please install one more 20dB attenuator (not included) in this case. Fig.4. Output module connection to NRG1001 generator, sample and oscilloscope. Attach the attenuators just to the oscilloscope input, but not to the SMA coupler output of the module.
- Page 12 AMPLITUDE regulation knob. Register the pulse waveform by the oscilloscope. Always stop the operation of the generator by HV ON/HV OFF switch, after that you can switch off the generator by power switch. MEGAIMPULSE LTD.
-
Page 13: Triggering Of The Generator
ENABLE signal. For example, if you need burst of ten pulses with 1 ms delay between them please set internal repetition rate to 1 kHz and apply 10 ms ENABLE pulse to SYNC IN connector. User manual of NRG1001 HV rectangular pulse generator... -
Page 14: Sync Out Pulse
SYNC OUT PULSE NRG1001 generator has BNC output connector for SYNC OUT pulse. The pulse amplitude is 2.5 V on 50 Ohm load and 5 V on high impedance load. The SYNC OUT pulse precedes output HV pulse by about 300 ns. -
Page 15: Fuse Replacement
Removing of the fuse holder by flat screwdriver. There are two fuses in the fuse holder including one spare (see Fig.7). Fig.7. Two fuses in fuse holder including one spare (upper in the figure). User manual of NRG1001 HV rectangular pulse generator... -
Page 16: Warranty
Please see your sales agreement to determine the warranty period and condition. The generator has warranty seals on the front and rear panels (see Fig.8.) Removing of the seals terminates the warranty. Fig.8. Warranty seals on the front and rear panels. MEGAIMPULSE LTD.
