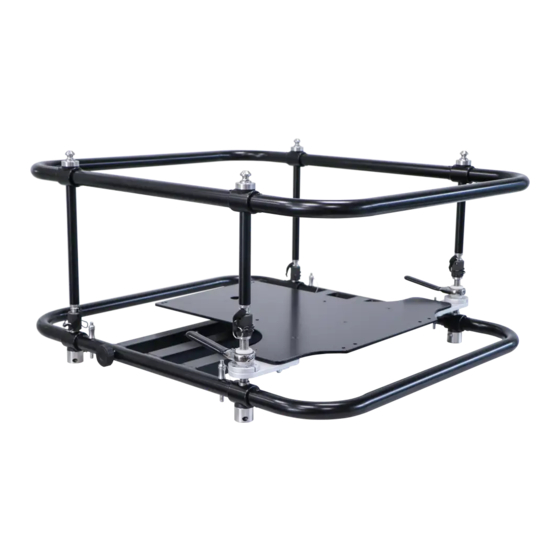

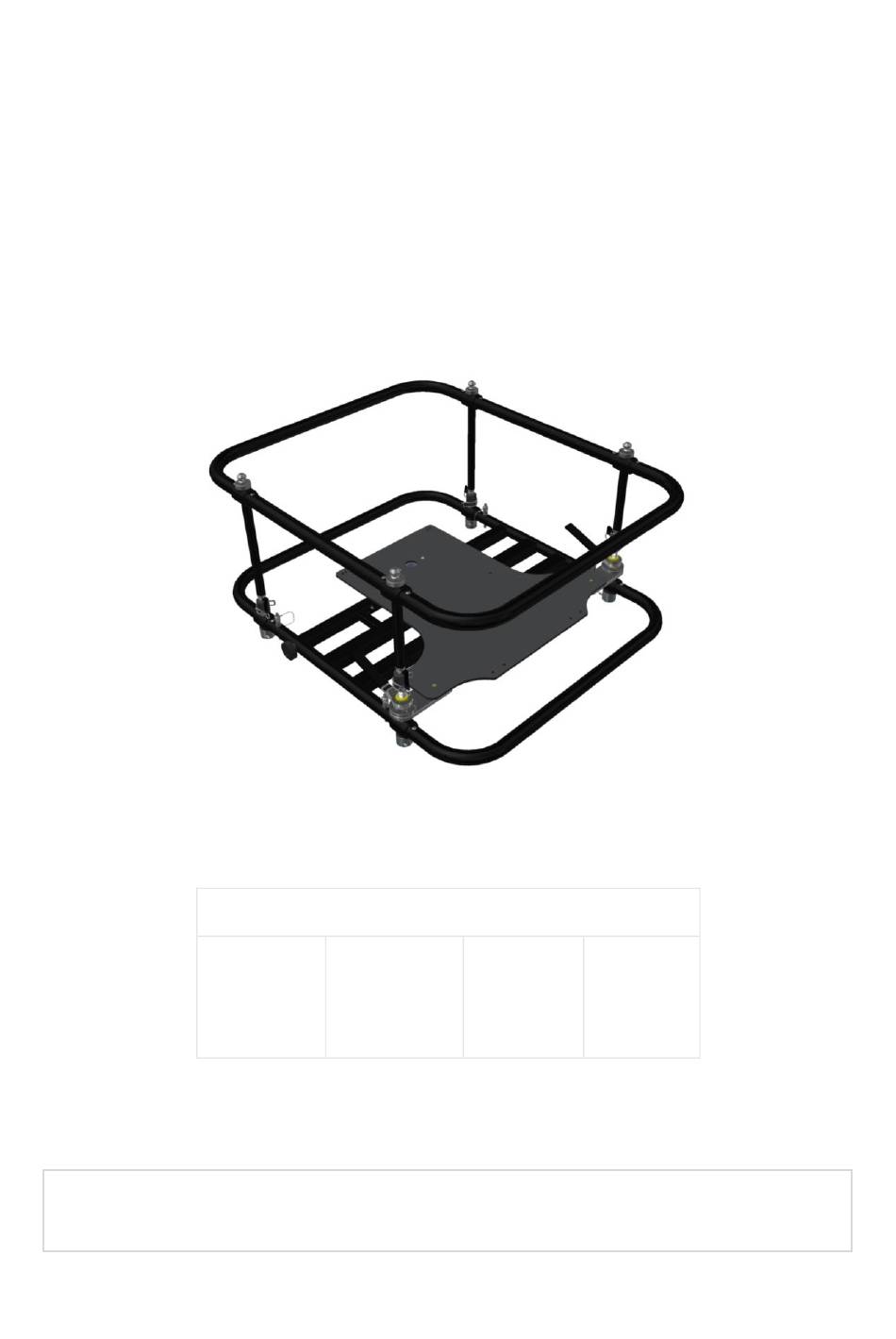

FRAME-EVO-P20 / P20-US
Mounting frame for projectors
The following projectors can be mounted in this frame:
PT-DZ21KU
PT-DZ21K2U
PT-DZ16KU
PT-DZ16K2U
These installation instructions must always be provided to the customer
MODEL
ET-PFD565
3 Chip DLP
PT-DS20KU
PT-RQ13KU
PT-DW17KU
PT-RQ22KU
PT-DW17K2U
PT-RZ12KU
PT-RZ21KU
PT-RS11KU
PT-RS20KU
Advertisement
Table of Contents
Related Manuals for Solutions4AV ET-PFD565
Summary of Contents for Solutions4AV ET-PFD565
- Page 1 MODEL ET-PFD565 FRAME-EVO-P20 / P20-US Mounting frame for projectors The following projectors can be mounted in this frame: 3 Chip DLP PT-DZ21KU PT-DS20KU PT-RQ13KU PT-RZ12KU PT-DZ21K2U PT-DW17KU PT-RQ22KU PT-RZ21KU PT-DZ16KU PT-DW17K2U PT-RS11KU PT-DZ16K2U PT-RS20KU These installation instructions must always be provided to the customer...
- Page 2 Manual FRAME-EVO-P20 / P20-US Version 1.6 Page 1 of 39 10.01.2019...
-
Page 3: Table Of Contents
Manual FRAME-EVO-P20 / P20-US Version 1.6 Table of content 1. Preamble ....................3 1.1 FRAME-EVO-P20 / P20-US designation ..................3 1.2 Optional accessory designation..................... 4 1.3 Tools required ..........................5 2. Safety instructions ..................6 3. What’s in the box? ..................11 4. -
Page 4: Preamble
Manufacturer m.no.: FRAME-EVO-P20 Manufacturer m.no.: FRAME-EVO-P20-US Panasonic EU m.no.: ET-RFD60 Panasonic USA m.no.: ET-PFD565 m.no. = model number Note: In this manual, when reference is made to the manufacturer model number it is also automatically a reference to the Panasonic EU / USA model number like described in the... -
Page 5: Optional Accessory Designation
Manual FRAME-EVO-P20 / P20-US Version 1.6 1.2 Optional accessory designation European market Non-European market Manufacturer m.no.: FRAME-PF-UNI-PORAD Manufacturer m.no.: FRAME-PF-UNI-PORAD Panasonic EU m.no.: ET-CLP-P Panasonic USA m.no.: - (non-USA product) Manufacturer m.no.: FRAME-PF-UNI-CLP5030 Manufacturer m.no.: FRAME-PF-UNI-CLP5030 Panasonic EU m.no.: ET-CLP50 Panasonic USA m.no.: ET-PFD50CLAMP Manufacturer m.no.: FRAME-PF-UNI-CLP30PT Manufacturer m.no.: FRAME-PF-UNI-CLP30PT... -
Page 6: Tools Required
Manual FRAME-EVO-P20 / P20-US Version 1.6 1.3 Tools required The only tool required is a 4 mm hex key to mount the projector in the FRAME-EVO-P20 / P20- 4 mm hex key (Allen key) These installation instructions must always be handed over to the installing person. Read these instructions carefully before installing the system. -
Page 7: Safety Instructions
Manual FRAME-EVO-P20 / P20-US Version 1.6 2. Safety instructions INTENDED USE The FRAME-EVO-P20 / P20-US frame is intended for use by fully qualified, trained and competent persons to provide safe and secure transportation, installation and adjustment of projectors. Only use the frame with projector in a closed environment (conference rooms, theaters, convention halls, etc.) where there is no wind, moisture, excessive heat etc. - Page 8 Manual FRAME-EVO-P20 / P20-US Version 1.6 WARNINGS Installation work should only be carried out by a qualified technician. • If this product is not installed correctly, serious accidents may result. Do not use the FRAME-EVO-P20 / P20-US frame outdoors. • This product is made only for indoor usage. If the FRAME-EVO-P20 / P20-US frame is mounted outdoor, there are many influences like wind or rain that can have an effect on the stability of the whole system.
- Page 9 Manual FRAME-EVO-P20 / P20-US Version 1.6 For stacking, make sure that all four locking pins pass completely through the female stacking bolt. • Make sure the four male bolts enter into the correspondent female bolts and are locked. Do not install the FRAME-EVO-P20 / P20-US or the projector while people are present under the mounting zone during the installation process.
- Page 10 Manual FRAME-EVO-P20 / P20-US Version 1.6 RISK SITUATIONS Risk of injury due to the possibility of falling objects during the assembly or disassembly of the FRAME-EVO-P20 / P20-US frame. • Protection objective: avoid injury from falling parts. • Wear appropriate safety shoes, gloves and helmet. •...
- Page 11 Manual FRAME-EVO-P20 / P20-US Version 1.6 The fingers or the hand of the user can be caught between the outer rings and the plates or projector. • Protection objective: prevent personal injury by using safety gloves. • When the adjustment of the image is made, the user must always keep his hands on the hand levers (see picture below).
-
Page 12: What's In The Box
Manual FRAME-EVO-P20 / P20-US Version 1.6 3. What’s in the box? FRAME-EVO-P20 / P20-US • Used for projector installation • Number of units: 1 • Weight: 16 kg / 35.27 lbs 1) 6 x M6x30 ISO 7380 screws (galvanized steel 10.9) 2) 6 x Ø6 Schnorr Washer Used to secure the projector in the frame... -
Page 13: Optional Accessories
Manual FRAME-EVO-P20 / P20-US Version 1.6 4. Optional Accessories Please refer to “1.1 FRAME-EVO-P20 / P20-US designation” to assign the Panasonic EU and USA model numbers to the model numbers below. Please refer to chapter “10. Mounting the frame on a truss” and the following for information regarding the usability of the optional accessories. - Page 14 Manual FRAME-EVO-P20 / P20-US Version 1.6 FRAME-PF-UNI-PORAD Portrait Adapter for Projector Frames Optional accessory for portrait mode truss mount installations. Does include the TH-SHORT-150-8 More information can be found in the FRAME-PF-UNI-PORAD installation manual. Page 13 of 39 10.01.2019...
- Page 15 Manual FRAME-EVO-P20 / P20-US Version 1.6 FRAME-PF-UNI-CLP5030 Optional accessory for hanging one FRAME- EVO-P20 / P20-US or two in tandem mode on a truss. FRAME-PF-UNI-CLP5030 represents a complete set of 4 pieces. FRAME-PF-UNI-CLP30PT Optional accessory for portrait mode table installation FRAME-PF-UNI-CLP30PT represents a complete set of 4 pieces The optional accessories must be purchased separately.
-
Page 16: Fitting The Projectors In The Frame
Manual FRAME-EVO-P20 / P20-US Version 1.6 5. Fitting the projectors in the frame Lens Step 1: Place the projector upside down on a suitable flat surface then remove the lens (if it is pre-installed). For easier access you may first remove the upper ring before mounting the projector. - Page 17 Manual FRAME-EVO-P20 / P20-US Version 1.6 Torque: 4±0.5 Nm Step 3: Place the 6 x Ø6 Schnorr Washers (2) over each corresponding hole. Secure the 6 x M6x30 ISO 7380 screws (1) into each hole with 4 Nm torque. Ensure each screw runs through the plate and catches into the corresponding M6 hole in the projector surface.
-
Page 18: Removing The Upper Ring - Installation Version
Manual FRAME-EVO-P20 / P20-US Version 1.6 6. Removing the Upper Ring - Installation Version The purpose of the Installation Version is to have a quick, simple and tool free possibility to install the ET-D75LE90 or ET-D75LE95 ultra-short throw lens, or any other short throw lenses, without any limitation regarding the frame. - Page 19 Manual FRAME-EVO-P20 / P20-US Version 1.6 Step 1: Remove the 4 x spring clips as presented in the above picture. Because the spring of the spring clip is strong, please be careful not to clamp your fingers between the spring and the attachment nut Step 2: Unscrew the 4 x attachment nuts (as presented in the above picture) until they are completely loose and can be move up and down freely.
- Page 20 Manual FRAME-EVO-P20 / P20-US Version 1.6 Step 4: Now the ET-D75LE90 or ET-D75LE95 ultra-short throw lens can be attached to the projector. Page 19 of 39 10.01.2019...
-
Page 21: Reinstalling The Upper Ring
Manual FRAME-EVO-P20 / P20-US Version 1.6 7. Reinstalling the Upper Ring Step 1: Remove the ET-D75LE90 or ET-D75LE95 ultra-short throw lens. Step 2: Reposition the Upper Ring on the top of the Bottom Ring in such a way that the 4 x attachment nuts are lying on the corresponding position. - Page 22 Manual FRAME-EVO-P20 / P20-US Version 1.6 Step 3: Tighten back the 4 x attachment nuts until there is no play and the attachment nuts can not be moved up or down. Step 4: In the process of attaching the Upper Ring back to the frame, as a last step, please don’t forget to reinsert the 4 x spring clips back into the attachment nut.
-
Page 23: Adjustment Options
Manual FRAME-EVO-P20 / P20-US Version 1.6 8. Adjustment options Roll Using the hand levers to the left and right you can adjust the position of the projector with an angle of ±2.6 degrees. You can lower or lift the front left or right corner. - Page 24 Manual FRAME-EVO-P20 / P20-US Version 1.6 By turning the adjustment screw below the projector, you can move the back of the projector to the left or to the right with an angle of ±2.6 degrees. Page 23 of 39 10.01.2019...
-
Page 25: Stacking Frames
Manual FRAME-EVO-P20 / P20-US Version 1.6 9. Stacking frames Female bolt Male bolt Locking pin Step 1: Place the upper frame with mounted projector on top of the lower frame with mounted projector. Make sure the four male bolts enter into the correspondent female bolts. -
Page 26: Mounting The Frame On A Truss
Manual FRAME-EVO-P20 / P20-US Version 1.6 10. Mounting the frame on a truss To hang the frame on a truss one must use the recommended 4 x M8 or/and the 4 x M10 threaded holes to attach a mounting accessory like the TH-SHORT-150-8 or TH-SHORT-350- 8/10. - Page 27 Manual FRAME-EVO-P20 / P20-US Version 1.6 Note: Always secure the frame using appropriate safety steel cables. Make sure they are chosen correctly regarding strength, format and length. Please avoid high dynamic forces by ensuring that the frame will not drop more than 5 cm into the safety.
-
Page 28: Maximum Stacking Information
Manual FRAME-EVO-P20 / P20-US Version 1.6 11. Maximum stacking information Please refer to the tables below to confirm proper usage. Do not try to setup the frame in another position as presented, because accidents can occur! With TH-SHORT-150-8 Landscape With TH-SHORT-350-8/10 Landscape Page 27 of 39 10.01.2019... - Page 29 Manual FRAME-EVO-P20 / P20-US Version 1.6 With rigging clamps FRAME-PF-UNI-CLP5030 Distance between the rigging clamps: • On X axis: 337 mm Portrait • On Y axis: between 240 mm and 350 mm Distance between the rigging clamps: • On X axis: 690 mm Landscape •...
- Page 30 Manual FRAME-EVO-P20 / P20-US Version 1.6 With Portrait Adapter FRAME-PF-UNI-PORAD together with TH-SHORT-150-8 Portrait Vertical Down Page 29 of 39 10.01.2019...
- Page 31 Manual FRAME-EVO-P20 / P20-US Version 1.6 On a table In this position one must use the FRAME-PF-UNI-CLP30PT and the Portrait frame has to be positioned with the adjustment screw on top. Landscape Not possible because of the cooling system that is located on the back side of Vertical Up the projector.
- Page 32 Manual FRAME-EVO-P20 / P20-US Version 1.6 Installation Version – without the Upper Ring With rigging clamps FRAME-PF-UNI-CLP5030 Portrait With rigging clamps On a table With TH-SHORT-150-8 FRAME-PF-UNI-CLP5030 Landscape Page 31 of 39 10.01.2019...
- Page 33 Manual FRAME-EVO-P20 / P20-US Version 1.6 With rigging clamps FRAME-PF-UNI-CLP5030 Vertical In this case, please always be sure that Down the minimum distance between the back of the projector and the nearby surface is respected. This value can be found in the projector manual. In this case, please always be sure that the minimum distance between the Vertical...
-
Page 34: System Maintenance And Inspection (Re-Examination)
Manual FRAME-EVO-P20 / P20-US Version 1.6 12. System maintenance and inspection (Re-examination) The FRAME-EVO-P20 / P20-US does not require special maintenance but a visual inspection must be done prior to every installation in which the system is involved: • Before and after each installation, the M8 and M10 mounting holes must be carefully inspected, as they may get damaged during the installation of the hanging accessory. - Page 35 Manual FRAME-EVO-P20 / P20-US Version 1.6 Bottom view: Top view: • On the three screws + nuts presented on the above picture a red color sealing wax was applied to be sure that the nuts will always be on the same position and no one will try to tighten or loose them.
- Page 36 Manual FRAME-EVO-P20 / P20-US Version 1.6 • If one notices that the sealing wax is broken or the nut is moved, please contact the manufacturer! • Except for the situation described on the previous points, please control, with corresponding tool, that all the other screws are properly tightened. Do not exchange broken or malfunctioning parts with ones that are not accredited by the manufacturer because serious injuries and property damage can occur! The inspection must be done by a qualified person!
-
Page 37: Declaration Of Conformity
Manual FRAME-EVO-P20 / P20-US Version 1.6 13. Declaration of Conformity Page 36 of 39 10.01.2019... -
Page 38: Dimensions
Manual FRAME-EVO-P20 / P20-US Version 1.6 14. Dimensions 14.1 FRAME-EVO-P20 / P20-US Frame weight: 16 kg / 35.27 lbs; (only frame) Page 37 of 39 10.01.2019... -
Page 39: Frame-Evo-P20 / P20-Us Installation Version - Without The Upper Ring
Manual FRAME-EVO-P20 / P20-US Version 1.6 14.2 FRAME-EVO-P20 / P20-US Installation Version - without the Upper Ring Frame weight: 11,7 kg / 25.79 lbs; (only frame) Page 38 of 39 10.01.2019... -
Page 40: Imprint
Manual FRAME-EVO-P20 / P20-US Version 1.6 Imprint LANG AG Schlosserstraße 8 51789 Lindlar GERMANY Tel.: +49 2266 4764 0 Fax: +49 2266 4764 43 E-Mail: info@lang-ag.com Web: www.lang-ag.com Page 39 of 39 10.01.2019...
