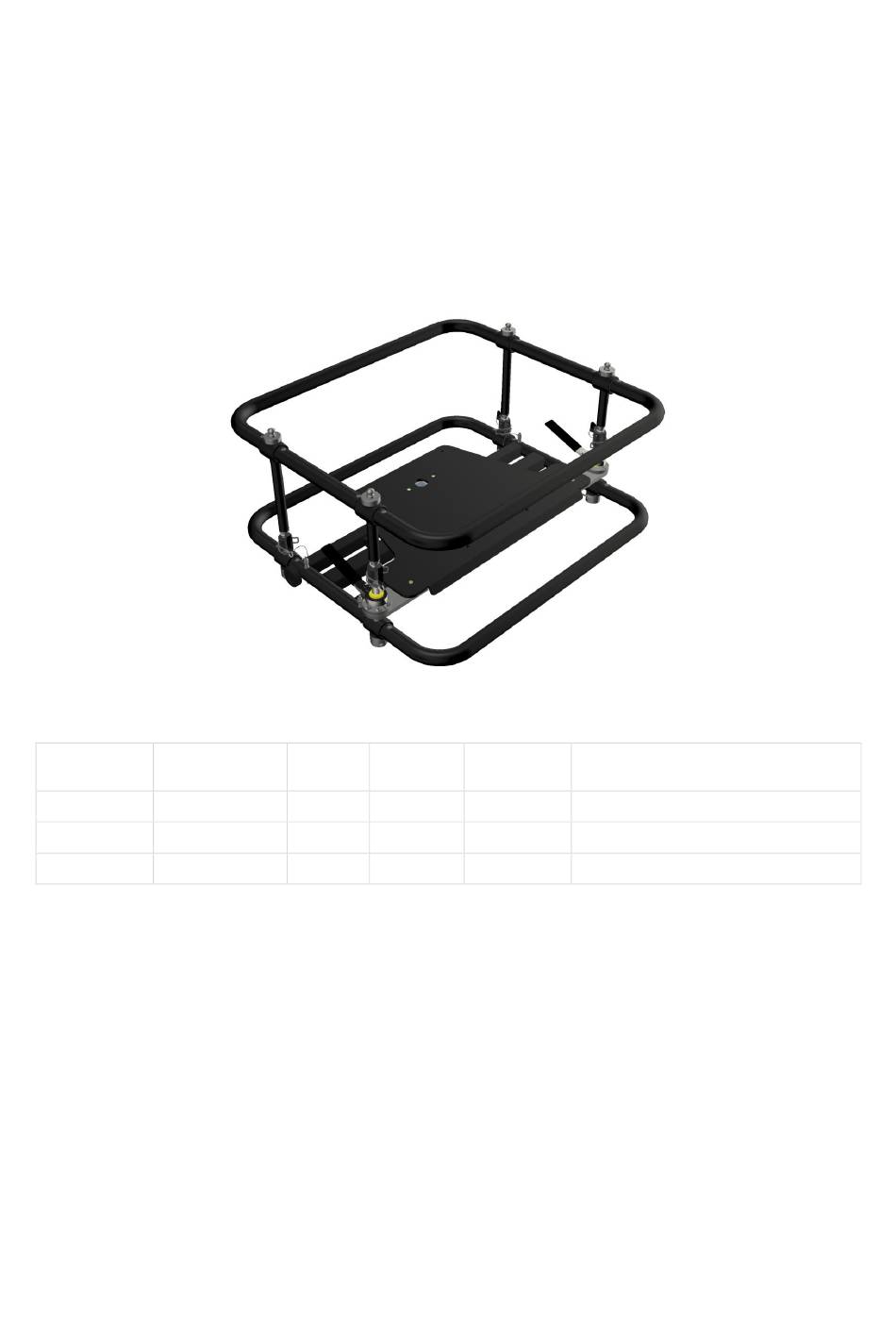

  • Page 1 FRAME-EVO-E10 Mounting frame for projectors Manual Version 1.6 Date Revision No. Author Checked Approved Description 18.12.2018 Epson model number changed 03.01.2019 US Version removed 14.01.2019 New layout The following projectors can be mounted in this frame: Epson 3LCD – EB-L1000 series Contact Tel.: +49 2266 4764 0...
  • Page 2 Manual FRAME-EVO-E10 Version 1.6 Page 1 of 39 14.01.2019...

  • Page 3: Table Of Contents

    12. System maintenance and inspection (Re-examination) ......33 13. Declaration of Conformity ............... 36 14 Dimensions ....................37 14.1 FRAME-EVO-E10 ........................37 14.2 FRAME-EVO-E10 Installation Version - without the Upper Ring ..........38 Imprint ......................39 Page 2 of 39 14.01.2019...

  • Page 4: Preamble

    Version 1.6 1. Preamble Congratulations on your purchase of the FRAME-EVO-E10 projector frame from LANG AG. Please read very carefully the instructions provided in this manual. In the following pages you will find all the information needed for a safe and fast installation.

  • Page 5: Tools Required

    Version 1.6 1.2 Tools required The only tool required is a 4 mm hex key to mount the projector in the FRAME-EVO-E10. 4 mm hex key (Allen key) These installation instructions must always be handed over to the installing person Read these instructions carefully before installing the system.

  • Page 6: Safety Instructions

    Version 1.6 2. Safety instructions INTENDED USE The FRAME-EVO-E10 frame is intended for use by fully qualified, trained and competent persons to provide safe and secure transportation, installation and adjustment of projectors. Only use the frame with projector in a closed environment (conference rooms, theaters, convention halls, etc.) where there is no wind, moisture, excessive heat etc.
  • Page 7 (363.76 lbs). Please refer to the corresponding instructions for the accessories used. Please also refer to chapter “4. Optional Accessories” and “11. Maximum stacking information”. 165 kg (363.76 lbs) = 3 x (weight of heaviest projector + weight of heaviest lens + weight of FRAME-EVO-E10) Page 6 of 39 14.01.2019...
  • Page 8 • Make sure the four male bolts enter into the correspondent female bolts and are locked. Do not install the FRAME-EVO-E10 or the projector while people are present under the mounting zone during the installation process. • When installing the projector, make sure no one is in the area underneath the installation zone.
  • Page 9 • Wear appropriate safety shoes, gloves and helmet. • Make sure the area under the installing places is clear. Risk of hitting the head with the FRAME-EVO-E10 frame during the hanging set up process. • Protection objective: avoid injury from hitting the head.
  • Page 10 Manual FRAME-EVO-E10 Version 1.6 The fingers or the hand of the user can be caught between the outer rings and the plates or projector. • Protection objective: prevent personal injury by using safety gloves. • When the adjustment of the image is made, the user must always keep his hands on the hand levers (see picture below).

  • Page 11: What's In The Box

    Manual FRAME-EVO-E10 Version 1.6 3. What’s in the box? FRAME-EVO-E10 • Used for projector installation • Number of units: 1 • Weight: 13,8 kg / 30.42 lbs 1) 4 x M6x20 ISO 7380 screws (galvanized steel 10.9) 2) 4 x Ø6 Schnorr Washer...

  • Page 12: Optional Accessories

    Manual FRAME-EVO-E10 Version 1.6 4. Optional Accessories Please refer to chapter “10. Mounting the frame on a truss” and the following for information regarding the usability of the optional accessories. TH-SHORT-60-6 Optional accessory for truss mount installations. More information can be found in the TH-SHORT-60-6 Installation manual.
  • Page 13 Manual FRAME-EVO-E10 Version 1.6 FRAME-PF-UNI-PORAD Portrait Adapter for Projector Frames Optional accessory for portrait mode truss mount installations. Does include the TH-SHORT-150-8 More information can be found in the FRAME-PF-UNI-PORAD installation manual. Page 12 of 39 14.01.2019...
  • Page 14 Manual FRAME-EVO-E10 Version 1.6 FRAME-PF-UNI-CLP5030 Optional accessory for hanging one FRAME-EVO-E10 or two in tandem mode on a truss. FRAME-PF-UNI-CLP5030 represents a complete set of 4 pieces. FRAME-PF-UNI-CLP30PT Optional accessory for portrait mode table installation. FRAME-PF-UNI-CLP30PT represents a complete set of 4 pieces.

  • Page 15: Fitting The Projector In The Frame

    Manual FRAME-EVO-E10 Version 1.6 5. Fitting the projector in the frame Step1: Place the projector upside down on a suitable flat surface. For easier access you may first remove the upper ring before mounting the projector. Please refer to chapter “6.
  • Page 16 Manual FRAME-EVO-E10 Version 1.6 Torque: 4±0.5 Nm Step 3: Place the 4 x Ø6 Schnorr Washers (2) over each corresponding hole. Secure the 4 x M6x30 ISO 7380 screws (1) into each hole with 4 Nm torque. Ensure each screw runs through the plate and catches into the corresponding M6 hole in the projector surface.

  • Page 17: Removing The Upper Ring - Installation Version

    Manual FRAME-EVO-E10 Version 1.6 6. Removing the Upper Ring - Installation Version The purpose of the Installation Version is to have a quick, simple and tool free possibility to install the ELPLX02 ultra-short throw lens, or any other short throw lenses, without any limitation regarding the frame.
  • Page 18 Manual FRAME-EVO-E10 Version 1.6 Step 2: Unscrew the 4 x attachment nuts (as presented in the above picture) until they are completely loose and can be move up and down freely. Step 3: Remove the Upper Ring and you will have the Installation Version of the frame.
  • Page 19 Manual FRAME-EVO-E10 Version 1.6 Step 4: Now the ELPLX02 ultra-short throw lens can be attached to the projector. Note: The image shown above is for illustration only, please refer to the Epson user manual for installation the lens ELPLX02. Page 18 of 39...

  • Page 20: Reinstalling The Upper Ring

    Manual FRAME-EVO-E10 Version 1.6 7. Reinstalling the Upper Ring Step 1: Remove the ELPLX02 ultra-short throw lens. Step 2: Reposition the Upper Ring on the top of the Bottom Ring in such a way that the 4 x attachment nuts are on the corresponding position.
  • Page 21 Manual FRAME-EVO-E10 Version 1.6 Step 3: Tighten back the 4 x attachment nuts until there is no play and the attachment nuts can not be moved up or down. Page 20 of 39 14.01.2019...
  • Page 22 Manual FRAME-EVO-E10 Version 1.6 Step 4: In the process of attaching the Upper Ring back to the frame, as a last step, please don’t forget to reinsert the 4 x spring clips back into the attachment nut. Because the spring of the spring clip is strong, please be careful not to clamp your fingers between the spring and the attachment nut.

  • Page 23: Adjustment Options

    Manual FRAME-EVO-E10 Version 1.6 8. Adjustment options Roll: Using the hand levers to the left and right you can adjust the position of the projector with an angle of ±2.7 degrees. You can lower or lift the front left or right corner.
  • Page 24 Manual FRAME-EVO-E10 Version 1.6 Yaw: By turning the adjustment screw below the projector, you can move the back of the projector to the left or to the right with an angle of ±3.3 degrees. Page 23 of 39 14.01.2019...

  • Page 25: Stacking Frames

    Manual FRAME-EVO-E10 Version 1.6 9. Stacking frames Female bolt Locking pin Male bolt Step 1: Place the upper frame with mounted projector on top of the lower frame with mounted projector. Make sure the four male bolts enter into the correspondent female bolts.

  • Page 26: Mounting The Frame On A Truss

    Manual FRAME-EVO-E10 Version 1.6 10. Mounting the frame on a truss To hang the frame on a truss one must use the recommended 4 x M6 or the 4 x M8 threaded holes to attach a mounting accessory like the TH-SHORT-60-6 or TH-SHORT-150-8.
  • Page 27 Manual FRAME-EVO-E10 Version 1.6 Always secure the frame using appropriate safety steel cables. Make sure they are chosen correctly regarding strength, format and length. Please avoid high dynamic forces by ensuring that the frame will not drop more than 5 cm into the safety.

  • Page 28: Maximum Stacking Information

    Manual FRAME-EVO-E10 Version 1.6 11. Maximum stacking information Please refer to the tables below to confirm proper usage. Do not try to setup the frame in other positions as presented, because accidents can occur! With TH-SHORT-60-6 Landscape With TH-SHORT-150-8 Landscape Page 27 of 39 14.01.2019...
  • Page 29 Manual FRAME-EVO-E10 Version 1.6 With rigging clamps FRAME-PF-UNI-CLP30PT Distance between the rigging clamps: • On X axis: 265 mm Portrait • On Y axis: between 380 mm and 390 mm Distance between the rigging clamps: Landscape • On X axis: 664,5 mm •...
  • Page 30 Manual FRAME-EVO-E10 Version 1.6 With Portrait Adapter FRAME-PF-UNI-PORAD together with TH-SHORT-150-8 • If using FRAME-EVO-E10 together with FRAME-PF-UNI-PORAD one of the four clamp must be removed so that only three clamps are used Portrait • More information can be found in the FRAME-PF-UNI-PORAD installation manual.
  • Page 31 Manual FRAME-EVO-E10 Version 1.6 On a table In this position one must use the FRAME-PF-UNI-CLP30PT and the frame has to be positioned with the Portrait adjustment screw on top. Landscape Not possible because of the cooling system that is located on the back side of the Vertical projector.
  • Page 32 Manual FRAME-EVO-E10 Version 1.6 Installation Version - without the Upper Ring With rigging clamps FRAME-PF-UNI-CLP30PT Portrait With TH-SHORT-60-6 or With rigging clamps On a table with TH-SHORT-150-8 FRAME-PF-UNI-CLP30PT Landscape Page 31 of 39 14.01.2019...
  • Page 33 Manual FRAME-EVO-E10 Version 1.6 With rigging clamps FRAME-PF-UNI-CLP30PT In this case, please always be sure that the minimum distance between the back of Vertical the projector and the nearby surface is Down respected. This value can be found in the projector manual.

  • Page 34: System Maintenance And Inspection (Re-Examination)

    Manual FRAME-EVO-E10 Version 1.6 12. System maintenance and inspection (Re-examination) The FRAME-EVO-E10 does not require special maintenance but a visual inspection must be done prior to every installation in which the system is involved: • Before and after each installation, the M6 and M8 mounting holes must be carefully inspected, as they may get damaged during the installation of the hanging accessory.
  • Page 35 Manual FRAME-EVO-E10 Version 1.6 Bottom view: Top view: • On the three screws + nuts presented on the above picture a red color sealing wax was applied to be sure that the nuts will always be on the same position and no one will try to tighten or loosen them.
  • Page 36 Manual FRAME-EVO-E10 Version 1.6 • Except for the situation described on the previous point, please control, with corresponding tool, that all the other screws are properly tightened. Do not exchange broken or malfunctioning parts with ones that are not accredited by the...

  • Page 37: Declaration Of Conformity

    Manual FRAME-EVO-E10 Version 1.6 13. Declaration of Conformity Page 36 of 39 14.01.2019...

  • Page 38: Dimensions

    Manual FRAME-EVO-E10 Version 1.6 14 Dimensions 14.1 FRAME-EVO-E10 Frame weight: 13,8 kg / 30.42 lbs; (only frame) Page 37 of 39 14.01.2019...

  • Page 39: Frame-Evo-E10 Installation Version - Without The Upper Ring

    Manual FRAME-EVO-E10 Version 1.6 14.2 FRAME-EVO-E10 Installation Version - without the Upper Ring Frame weight: 3,7 kg / 8.15 lbs; (only frame) Page 38 of 39 14.01.2019...

  • Page 40: Imprint

    Manual FRAME-EVO-E10 Version 1.6 Imprint LANG AG Schlosserstraße 8 51789 Lindlar GERMANY Tel.: +49 2266 4764 0 Fax: +49 2266 4764 43 E-Mail: info@lang-ag.com Web: www.lang-ag.com Page 39 of 39 14.01.2019...
