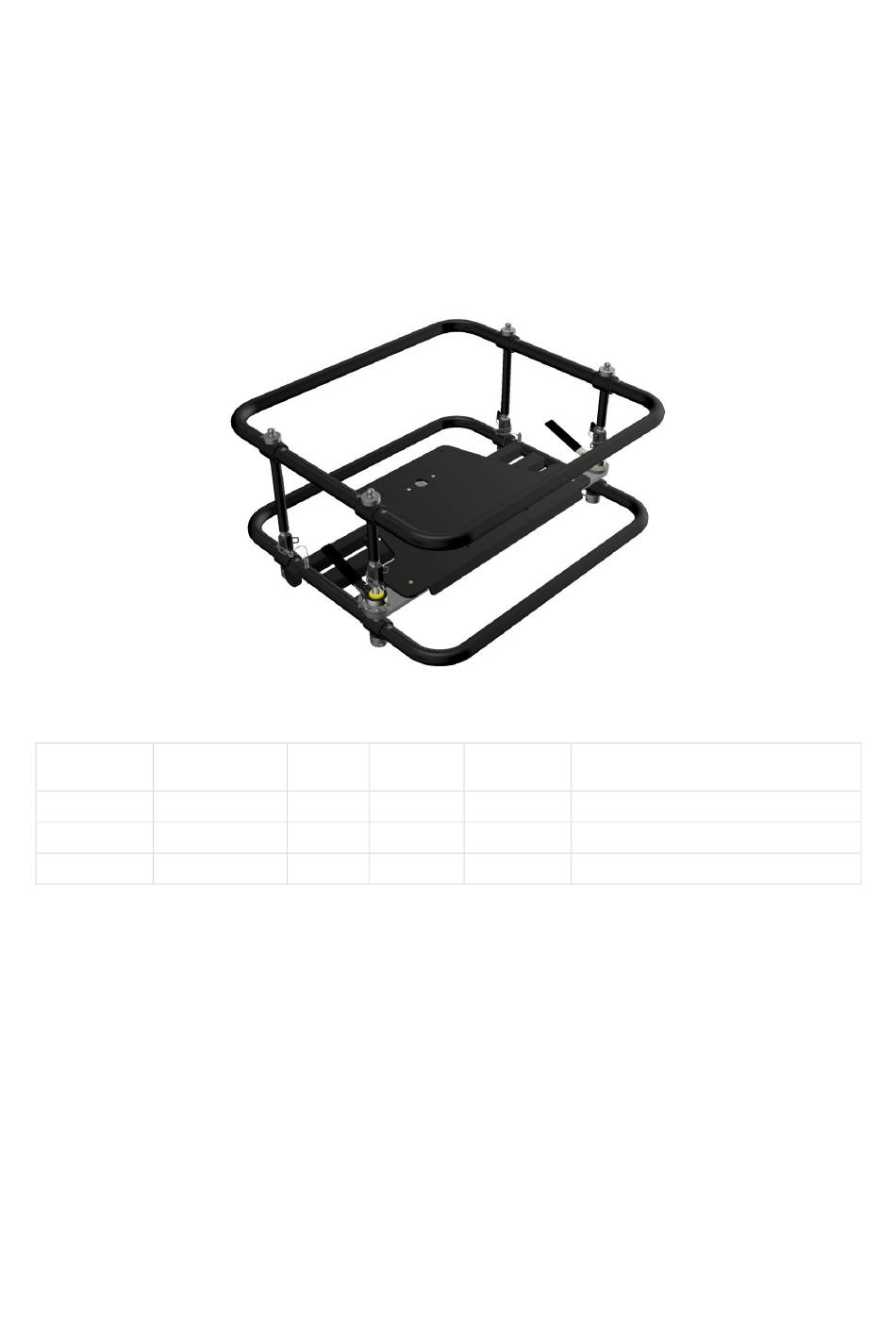

- Page 1 FRAME-EVO-E20 Mounting frame for projectors Manual Version 1.8 Date Revision No. Author Checked Approved Description 19.12.2018 Epson model number changed 04.01.2018 US Version removed 21.01.2019 New layout The following projectors can be mounted in this frame: Epson 3LCD: Epson EB-L20000U...
- Page 2 Manual FRAME-EVO-E20 Version 1.6 Page 1 of 39 21.01.2019...
-
Page 3: Table Of Contents
12. System maintenance and inspection (Re-examination) ......33 13 Declaration of Conformity ................ 36 14 Dimensions ....................37 14.1 FRAME-EVO-E20 ........................37 14.2 FRAME-EVO-E20 Installation Version - without the Upper Ring ..........38 Imprint ......................39 Page 2 of 39 21.01.2019... -
Page 4: Preamble
Version 1.6 1. Preamble Congratulations on your purchase of the FRAME-EVO-E20 projector frame from LANG AG. Please read very carefully the instructions provided in this manual. In the following pages you will find all the information needed for a safe and fast installation. -
Page 5: Tools Required
Version 1.6 1.2 Tools required The only tool required is a 4 mm hex key to mount the projector in the FRAME-EVO-E20. 4 mm hex key (Allen key) These installation instructions must always be handed over to the installing person Read these instructions carefully before installing the system. - Page 6 Please also refer to chapter “4. Optional Accessories” and “11. Maximum stacking information”. 280 kg (617.29 lbs) = 3 x (weight of heaviest projector + weight of heaviest lens + weight of FRAME-EVO-E20) Page 5 of 39 21.01.2019...
- Page 7 • Make sure the four male bolts enter into the correspondent female bolts and are locked. Do not install the FRAME-EVO-E20 or the projector while people are present under the mounting zone during the installation process. • When installing the projector, make sure no one is in the area underneath the installation zone.
- Page 8 Before installing the projector in the FRAME-EVO-E20 frame, please read the projector’s user manual. When the projector has a lens attached, please remove it. • The FRAME-EVO-E20 frame with the projector inside must be installed only in an environment that is recommended by the projector manufacturer.
- Page 9 • Wear appropriate safety shoes, gloves and helmet. • Make sure the area under the installing places is clear. Risk of hitting the head with the FRAME-EVO-E20 frame during the hanging set up process. • Protection objective: avoid injury from hitting the head.
- Page 10 Manual FRAME-EVO-E20 Version 1.6 The fingers or the hand of the user can be caught between the outer rings and the plates or projector. • Protection objective: prevent personal injury by using safety gloves. • When the adjustment of the image is made, the user must always keep his hands on the hand levers (see picture below).
-
Page 11: What's In The Box
Manual FRAME-EVO-E20 Version 1.6 3. What’s in the box? FRAME-EVO-E20 • Used for projector installation • Number of units: 1 • Weight: 16,2 kg / 35.715 lbs • 6 x M6x30 ISO 7380 screws (galvanized steel 10.9) • 6 x Ø6 Schnorr Washer... -
Page 12: Optional Accessories
Manual FRAME-EVO-E20 Version 1.6 4. Optional Accessories Please refer to chapter “10. Mounting the frame on a truss” and the following for information regarding the usability of the optional accessories. TH-SHORT-150-8 Optional accessory for truss mount installations. More information can be found in the TH-SHORT-150-8 Installation manual. - Page 13 Manual FRAME-EVO-E20 Version 1.6 FRAME-PF-UNI-PORADV2 Portrait Adapter Version 2 for Projector Frames Optional accessory for portrait mode truss mount installations. Does include the TH-SHORT-150-8 More information can be found in the FRAME-PF-UNI-PORADV2 Installation manual. Page 12 of 39 21.01.2019...
- Page 14 Manual FRAME-EVO-E20 Version 1.6 FRAME-PF-UNI-CLP5030 Optional accessory for hanging one FRAMES- EVO-E20 or two in tandem mode on a truss. FRAME-PF-UNI-CLP5030 represents a complete set of 4 pieces. FRAME-PF-UNI-CLP30PT Optional accessory for portrait mode table installation. FRAME-PF-UNI-CLP30PT represents a complete set of 4 pieces The optional accessories must be purchased separately.
-
Page 15: Fitting The Projector In The Frame
Manual FRAME-EVO-E20 Version 1.6 5. Fitting the projector in the frame Step1: Place the projector upside down on a suitable flat surface. For easier access you may first remove the upper ring before mounting the projector. Please refer to chapter “6. - Page 16 Manual FRAME-EVO-E20 Version 1.6 Torque: 4±0.5 Nm Step 3: Place the 6 x Ø6 Schnorr Washers (2) over each corresponding hole. Secure the 6 x M6x30 ISO 7380 screws (1) into each hole with 4 Nm torque. Ensure each screw runs through the plate and catches into the corresponding M6 hole in the projector surface.
-
Page 17: Removing The Upper Ring - Installation Version
Manual FRAME-EVO-E20 Version 1.6 6. Removing the Upper Ring - Installation Version The purpose of the Installation Version is to have a quick, simple and tool free possibility to install the ELPLX02 ultra-short throw lens, or any other short throw lenses, without any limitation regarding the frame. - Page 18 Manual FRAME-EVO-E20 Version 1.6 Step 2: Unscrew the 4 x attachment nuts (as presented in the above picture) until they are completely loose and can be move up and down freely. Step 3: Remove the Upper Ring and you will have the Installation Version of the frame.
- Page 19 Manual FRAME-EVO-E20 Version 1.6 Step 4: Now the ELPLX02 ultra-short throw lens can be attached to the projector. Page 18 of 39 21.01.2019...
-
Page 20: Reinstalling The Upper Ring
Manual FRAME-EVO-E20 Version 1.6 7. Reinstalling the Upper Ring Step 1: Remove the ELPLX02 ultra-short throw lens. Step 2: Reposition the Upper Ring on the top of the Bottom Ring in such a way that the 4 x attachment nuts are on the corresponding position. - Page 21 Manual FRAME-EVO-E20 Version 1.6 Step 3: Tighten back the 4 x attachment nuts until there is no play and the attachment nuts can not be moved up or down. Step 4: In the process of attaching the Upper Ring back to the frame, as a last step, please don’t forget to reinsert the 4 x spring clips into the attachment nut.
-
Page 22: Adjustment Options
Manual FRAME-EVO-E20 Version 1.6 8. Adjustment options Roll: Using the hand levers to the left and right you can adjust the position of the projector with an angle of ±2.5 degrees. You can lower or lift the front left or right corner. - Page 23 Manual FRAME-EVO-E20 Version 1.6 Yaw: By turning the adjustment screw below the projector, you can move the back of the projector to the left or to the right with an angle of ±2.6 degrees. Page 22 of 39 21.01.2019...
-
Page 24: Stacking Frames
Manual FRAME-EVO-E20 Version 1.6 9. Stacking frames Female bolt Male bolt Locking pin Step 1: Place the upper frame with mounted projector on top of the lower frame with mounted projector. Make sure the four male bolts enter into the correspondent female bolts. -
Page 25: Mounting The Frame On A Truss
Manual FRAME-EVO-E20 Version 1.6 10. Mounting the frame on a truss To hang the frame on a truss one must use the recommended 4 x M8 or/and the 4 x M10 threaded holes to attach a mounting accessory like the TH-SHORT-150-8 or TH-SHORT-350- 8/10. - Page 26 Manual FRAME-EVO-E20 Version 1.6 Always secure the frame using appropriate safety steel cables. Make sure they are chosen correctly regarding strength, format and length. Please avoid high dynamic forces by ensuring that the frame will not drop more than 5 cm into the safety.
-
Page 27: Maximum Stacking Information
Manual FRAME-EVO-E20 Version 1.6 11. Maximum stacking information Please refer to the tables below to confirm proper usage. Do not try to setup the frame in other positions as presented, because accidents can occur! With TH-SHORT-150-8 Landscape With TH-SHORT-350-8/10 Landscape Page 26 of 39 21.01.2019... - Page 28 Manual FRAME-EVO-E20 Version 1.6 With rigging clamps (FRAME-PF-UNI-CLP5030) Distance between the rigging clamps: • On X axis: 387 mm Portrait • On Y axis: between 240 mm and 350 mm Distance between the rigging clamps: Landscape • On X axis: 718,5 mm •...
- Page 29 Manual FRAME-EVO-E20 Version 1.6 With rigging clamps (FRAME-PF-UNI-CLP5030) Distance between the rigging clamps: • On X axis: between Vertical 240 mm and 450 mm Down • On Y axis: 387 mm Not possible because of the cooling system that is located on the back side of Vertical the projector.
- Page 30 Manual FRAME-EVO-E20 Version 1.6 With Portrait Adapter Version 2 FRAME-PF-UNI-PORADV2 together with TH-SHORT-150-8 Portrait Vertical Down Page 29 of 39 21.01.2019...
- Page 31 Manual FRAME-EVO-E20 Version 1.6 On a table In this position one must use the FRAME-PF-UNI-CLP30PT and the Portrait frame hast to be positioned with the adjustment screw on top. Landscape Not possible because of the cooling system that is located on the back side of Vertical the projector.
- Page 32 Manual FRAME-EVO-E20 Version 1.6 Installation Version – without the Upper Ring With rigging clamps FRAME-PF-UNI-CLP5030 Portrait With rigging clamps On a table With TH-SHORT-150-8 FRAME-PF-UNI-CLP5030 Landscape Page 31 of 39 21.01.2019...
- Page 33 Manual FRAME-EVO-E20 Version 1.6 With rigging clamps FRAME-PF-UNI-CLP5030 In this case, please always be sure that the minimum distance between the back of the projector and the nearby surface is Vertical respected. This value can be found in the Down projector manual.
-
Page 34: System Maintenance And Inspection (Re-Examination)
Manual FRAME-EVO-E20 Version 1.6 12. System maintenance and inspection (Re-examination) The FRAME-EVO-E20 does not require special maintenance but a visual inspection must be done prior to every installation in which the system is involved: • Before and after each installation, the M8 and M10 mounting holes must be carefully inspected, as they may get damaged during the installation of the hanging accessory. - Page 35 Manual FRAME-EVO-E20 Version 1.6 Bottom view: Top view: • On the three screws + nuts presented on the above picture a red color sealing wax was applied to be sure that the nuts will always be on the same position and no one will try to tighten or loosen them.
- Page 36 Manual FRAME-EVO-E20 Version 1.6 • Except for the situation described on the previous point, please control, with corresponding tool, that all the other screws are properly tightened. Do not exchange broken or malfunctioning parts with ones that are not accredited by the...
-
Page 37: Declaration Of Conformity
Manual FRAME-EVO-E20 Version 1.6 13 Declaration of Conformity Page 36 of 39 21.01.2019... -
Page 38: Dimensions
Manual FRAME-EVO-E20 Version 1.6 14 Dimensions 14.1 FRAME-EVO-E20 Frame weight: 16,2 kg / 35.715 lbs; (only frame) Page 37 of 39 21.01.2019... -
Page 39: Frame-Evo-E20 Installation Version - Without The Upper Ring
Manual FRAME-EVO-E20 Version 1.6 14.2 FRAME-EVO-E20 Installation Version - without the Upper Ring Frame weight: 11,8 kg / 26.014 lbs; (only frame) Page 38 of 39 21.01.2019... -
Page 40: Imprint
Manual FRAME-EVO-E20 Version 1.6 Imprint LANG AG Schlosserstraße 8 51789 Lindlar GERMANY Tel.: +49 2266 4764 0 Fax: +49 2266 4764 43 E-Mail: info@lang-ag.com Web: www.lang-ag.com Page 39 of 39 21.01.2019...
