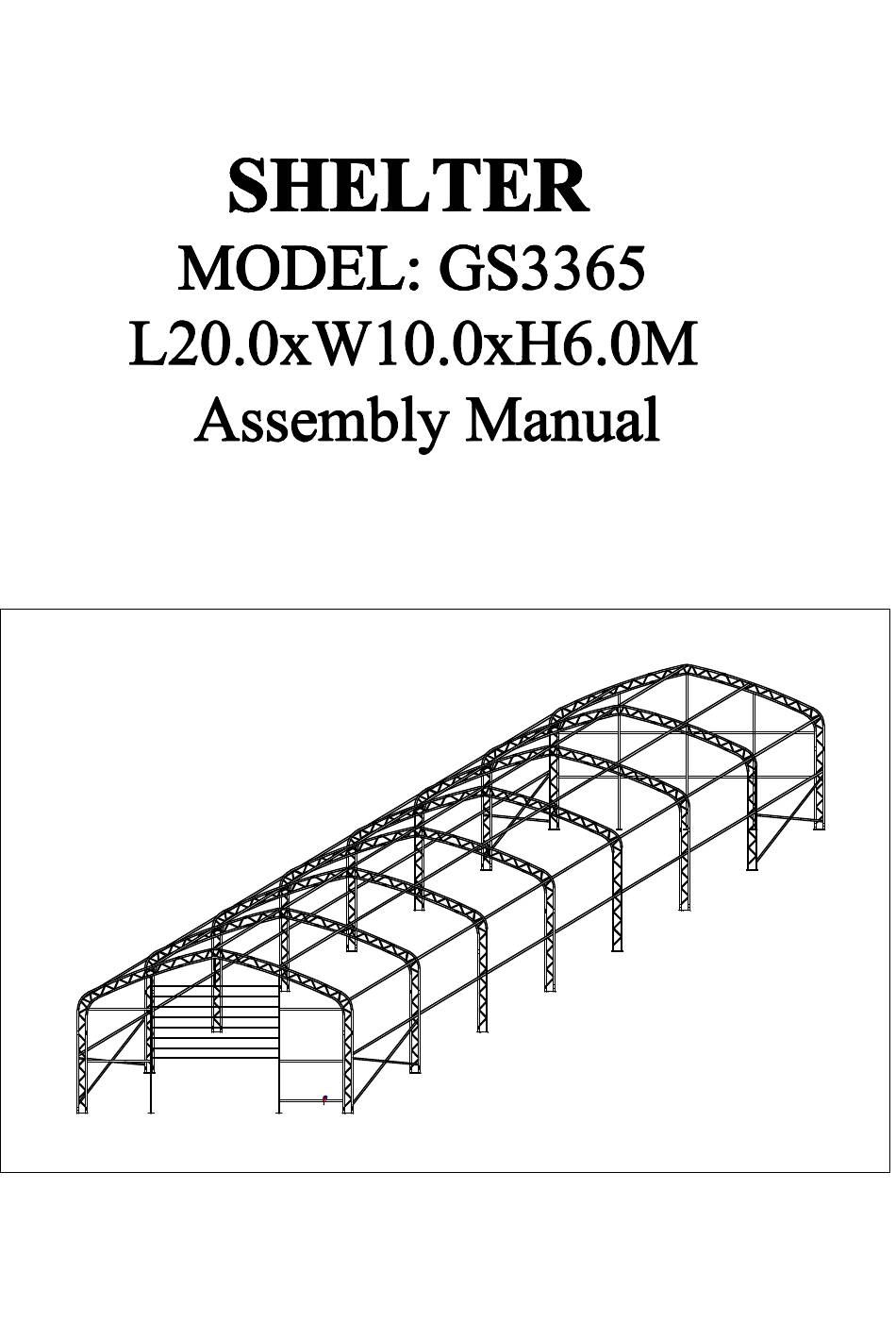

- Page 2 Congratulations on your purchase of our instant shelter. This unit is a combination of excellent manufacturing and design. It is comprised of a rigid frame and a durable cover. For easy assembly, we have marked all the parts with codes. With proper installation, use and maintenance, your unit will provide many years of good and suitable service.
-
Page 3: Assembly Procedure
ASSEMBLY PROCEDURE 1. Prepare location and place all unit boxes near location sight. Perform an inventory check before beginning, to be certain all components are available for installtion. 2. Secure base plates flanges to base surface. 3. Assemble every group of arch. 4. - Page 4 Parts List of GS3365 Part Code Description Quantity Top roof tube Top roof tube in the front and back panel Roof tube Roof tube in the front panel Roof tube in the back panel Roof tube at shoulder height Roof tube at shoulder height in the front panel...
- Page 5 Hexagonal bolt M10x30 for tube clips Plastic cap for tensioning tube Tie down ratchet Components for mechanical door 1 set Turnbuckle and steel wire 12 sets Roof cover front cover Back cover Door cover Rope for fastening the roof cover, the door cover and the front &...
