SHELTER SSC150905 Assembly Manual

L15.0 x w9.0 x h5.5m with overhead door
Hide thumbs

Advertisement

Quick Links

Download this manual
SHELTER
ASSEMBLY MANUAL
MODEL# SSC150905
L15.0 x W9.0 x H5.5m
with overhead door
2013GK8005

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSC150905 and is the answer not in the manual?

Questions and answers

Related Manuals for SHELTER SSC150905

Summary of Contents for SHELTER SSC150905

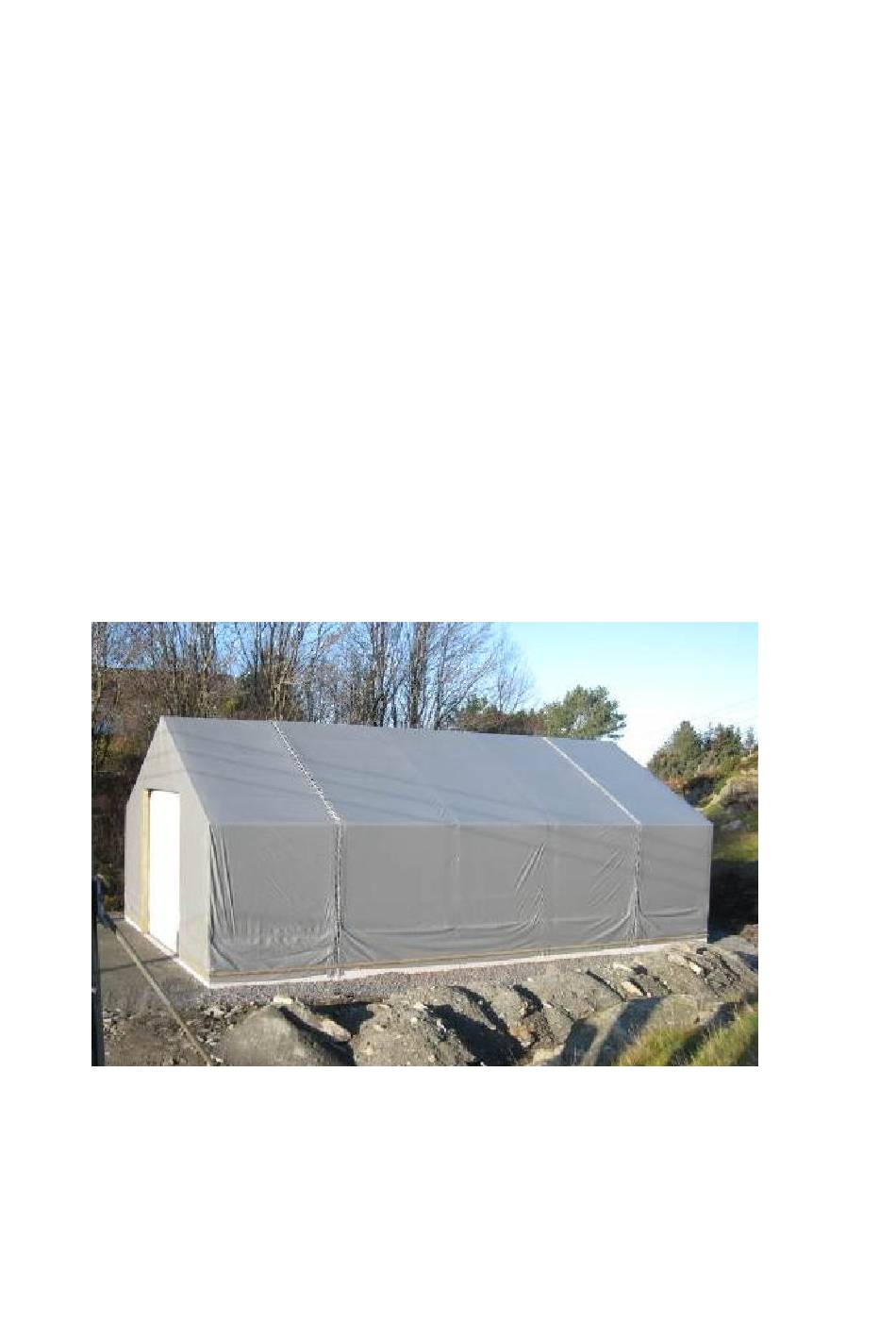

  • Page 1 SHELTER ASSEMBLY MANUAL MODEL# SSC150905 L15.0 x W9.0 x H5.5m with overhead door 2013GK8005...
  • Page 2 SPECIFICATION Length: 15m Width: 9.0m Height: 5.5m IMPORTANT-----READ MANUAL FIRST Improper site preparation, assembly and maintenance may invalidate warranty and cause unnecessary and costly mistakes. If you have any questions contact your local dealer. For user friendly assembly we have identified each individual component with the part code as indicated in the parts list.
  • Page 3 Part List Part Description Dimension Quantity(pc) Code Upright 3000mm Upright 3000mm Upright 3000mm Upright 3000mm Upright 3000mm Upright 3000mm Rafter of front panel for electric motor fixing 5150mm Rafter 5150mm Rafter of front panel for door track connection 5150mm Rafter 5150mm Rafter 5150mm...
  • Page 4 Part List Part Description Dimension Quantity(pc) Code Cover for back panel Inner Cover "L" shape Stake for square tensioning tube High Strength Bolt M16 for connection of arch Bolt M12 for connection of purlin Tool for self driling bolt 4 sets Steel Wire Rope (with parts) Knitting Rope for Cover 1 bundle...
  • Page 5 2013GK8005...
  • Page 6 INSTALLATION PROCESS A--FOUNDATION INSTALLATION 1. Please refer to “Anchor Sketch” and “Foundation Sketch” to lay the foundations and fix the Upright (No.A1 to A6). Please note the sequence number and direction of Upright (the opening direction of C-shaped steel tube) 2013GK8005...
  • Page 7 2. In order to reach the wind load and snow load, our suggestion is to dig 1.5m deep hole for the anchors. There are 3 Anchors (No. Q) for each hole (2 anchors for front and back panel). B--FRAME INSTALLATION 1.
  • Page 8 2. When finish installing all the 6 arches, connect the Front Door Frame (No. D1L, D1R) to the front panel and Back Door Frame (No. D2) to back panel by Bolt M14x30 (No. S) 3. When finish installing the main arches and door frames, connect Purlins (No. E1, E2, E4-A, E4-A1, E4-B) onto them by using Bolt M12.
  • Page 9 Roof Structure Planform Sidewall Sketch with Bracing Tube 2013GK8005...
  • Page 10 Option: Steel Wire Rope Installation Install the steel wire rope (No.N) between uprights according to your requirements. 2013GK8005...
  • Page 11 C--Cover Installation 1. There are three parts for the cover, which are front cover with front panel, mid cover and back cover with back panel (No.I1, I2 and I3). They are connected by the supplied rope (No.O) as Figure 1 shows. Figure 1 2.
  • Page 12 Instruction of Installing Garage Door Contents Ⅰ. Brief introduction of the garage door Ⅱ. The ways and standard to install garage door To make sure the gap size To install the track To install the track hanger and buffer To install the balance system To install the panels and door hardwares To adjust the whole door ENCLOSEMENT: the pass height for kinds of lift ways after installing...
  • Page 13 The ways and standard to install garage door 1. To make sure the gap size: 1.1. To measure the height and width of the both sides of gap size, to make sure it matches the door panel, and to make sure the differences of the two diagonal lines is less than 5mm.
  • Page 14 Piture 2-1 Position the vertical track 2013GK8005 -13-...
  • Page 15 Piture 2-2 Fix the vertical track: 2013GK8005 -14-...
  • Page 16 Piture 2-3 Fix the track of high lift parts for PB/2 and PB/3 lift way To fix the track of high lift parts for PB/2 lift way 2013GK8005 -15-...
  • Page 17 To fix the track of high lift parts for PB/3 lift way 2013GK8005 -16-...
  • Page 18 Piture 2-4 Fix the horizontal curvely track PB/1 lift way PB/2 lift way 2013GK8005 -17-...
  • Page 19 PB/4 lift way PB/5 lift way 2013GK8005 -18-...
  • Page 20 3. To install the track hanger and buffer 2013GK8005 -19-...
  • Page 21 2013GK8005 -20-...
  • Page 22 To install the buffer 2013GK8005 -21-...
  • Page 23 4. To install the balance system 4.1 the shaft and the spring 2013GK8005 -22-...
  • Page 24 4.2 Position the shaft bracket 4.2.1 To make sure the position of shaft bracket 2013GK8005 -23-...
  • Page 25 2013GK8005 -24-...
  • Page 26 4.2.2 To fix the shaft bracket with wall together In order to fix the shaft bracket with wall firmly together, we offer the fixing plate according to the wall material to fix the shaft plate (anti-break system), please find the below pictures: 2013GK8005 -25-...
  • Page 27 Some notes when installing the bolts: When using two springs or the weight of door panel is above 300kgs, need to add another one shaft plate on both sides of cable drum, please find the following picture: 2013GK8005 -26-...
  • Page 28 5. To install the door panel and door hardwares 5.1 To install the bottom panel and anti-break system Connect the anti-break system with the roller and cable, install them together with bottom panel, make the panel connect well with the vertical track by rollers, please find the below pictures: To install the anti-break system of PB/1, PB/2, PB/3, PB/5 lift way: 2013GK8005...
  • Page 29 5.2 To install other door panels Insert the roller into the side hinge, and connect well with the track; connect the second panel with the bottom panel through the middle hinges and side hinges. When installing, please note the hinge direction, there are two situations: When the panel width is above 5m, need to install double roller brackets and strength strut: To install other door panels, you can follow the above ways.
  • Page 30 5.3 To install top roller bracket After installing the top door panel, install the top roller bracket (insert the roller into bracket and connect with the track beforehand), adjust the position of top roller bracket according to the top panel and the track, and make sure the seals is good to prevent the outside items. 2013GK8005 -29-...
  • Page 31 To install top roller bracket of PB/4 and PB/5 double track lift way: 2013GK8005 -30-...
  • Page 32 5.5 Using the tapping screws for the whole door 1- top roller bracket, 4 galvanized tapping screws 6.3x19 2- middle hinge, 4 galvanized tapping screws 6.3x19 3- side hinge with rollers, 6 galvanized tapping screws 6.3x19 4- clevis pin lock, 6 galvanized tapping screws 6.3x19 5- anti-break system, 6galvanized tapping screws 6.3x19 5.6 To install the cable in the cable drum After installing the door and its accessories, to fix the cable terminal in the cable drum, to...
  • Page 33 6. To adjust the whole door When finish all the above installing, still need to adjust the whole door, then the door can be used normally. 6.1 To adjust the panel position To fix the hinge angle by adjust the rollers, make sure the rollers can be connected well with the track, in order to adjust the position of whole door panel, to make sure the door panel is vertical, the seal being fixed well, and no obstruction during the door traveling.
  • Page 34 6.2 Fasten the balance system Before using the lift door, measure the number of spring fastening circle, the fastening way is as below: Loose the fastening screws in the spring plug, take out the flat key; use vigorously plers to fix the shaft, to make sure the shaft will not move when fastening the spring.
  • Page 35 D= the wire diameter X the number of fastening circle 2013GK8005 -34-...
  • Page 36 Note: the direction of spring fastening is as bellow After fastening the spring, insert the flat key, and fasten the fastening screws in the spring plug. Finally, check the force of spring balance. 2013GK8005 -35-...
