LG LZ-H0356BA0 Owner's Manual

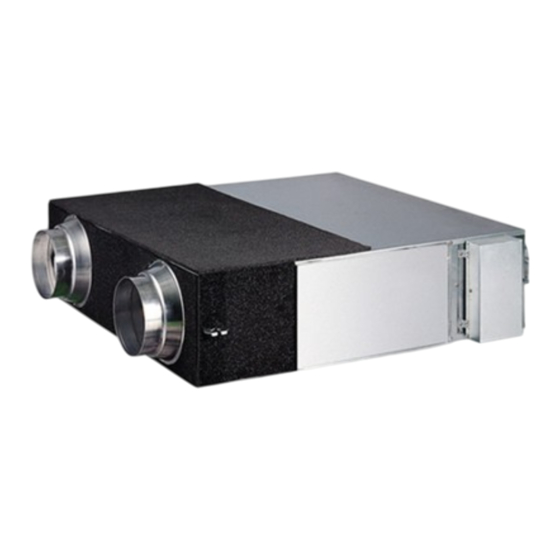

Eco v heat recovery ventilation system (350 cmh).
Hide thumbs

Advertisement

LG
Ventilator
OWNER'S MANUAL
website http://www.lgservice.com
Prior to installation, this ventilation unit
must be submitted for approval by the
utility service which provides electricity
(EN 61000-2, EN 61000-3 Norm).
IMPORTANT
• Please read this owner's manual carefully and thoroughly
before installing and operating your product.
• Please retain this owner's manual for future reference after
reading it thoroughly.
LG

Advertisement

   Related Manuals for LG LZ-H0356BA0

   Summary of Contents for LG LZ-H0356BA0

  • Page 1

    Ventilator OWNER'S MANUAL website http://www.lgservice.com Prior to installation, this ventilation unit must be submitted for approval by the utility service which provides electricity (EN 61000-2, EN 61000-3 Norm). IMPORTANT • Please read this owner's manual carefully and thoroughly before installing and operating your product. •...

  • Page 2: Table Of Contents

    Ventilator Owner’s Manual TABLE OF CONTENTS Safety Precautions...3 Prior to Operation ...8 Introduction ...9 Electrical Safety ...10 Characteristics ...11 Operating Instructions...12 Maintenance and Service ...20 Check Item prior to notify a failure ...23 2 Ventilator FOR YOUR RECORDS Write the model and serial numbers here: Model # Serial # You can find them on a label on the side of each unit.

  • Page 3: Safety Precautions

    Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. I Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. I Meanings of symbols used in this manual are as shown below.

  • Page 4

    Safety Precautions Do not modify or extend the power cable. • There is risk of fire or electric shock. For installation, always contact the dealer or an Authorized Service Center. • There is risk of fire, electric shock, explosion, or injury. For re-installation of the installed product, always contact the dealer or an...

  • Page 5

    I Operation Take care to ensure that power cable could not be pulled out or damaged during operation. • There is risk of fire or electric shock. Do not touch(operate) the product with wet hands. • There is risk of fire or electrical shock.

  • Page 6

    Safety Precautions Stop operation and close the window in storm or hurricane. If possible, remove the product from the window before the hurricane arrives. • There is risk of property damage, failure of product, or electric shock. Turn the breaker off when cleaning or maintaining the product.

  • Page 7

    I Installation Use two or more people to lift and transport the product. • Avoid personal injury. I Operation Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.) • This could harm to your health. Do not step on or put anyting on the product.

  • Page 8: Prior To Operation

    Prior to Operation Prior to Operation Preparing for operation 1. Contact an installation specialist for installation. 2. Plug in the power plug properly. 3. Use a dedicated circuit. 4. Do not use an extension cord. 5. Do not start/stop operation by plugging/unplugging the power cord. 6.

  • Page 9: Introduction

    Introduction Symbols used in this Manual This symbol alerts you to the risk of electric shock. This symbol alerts you to hazards that could cause harm to the ventilator. This symbol indicates special notes. NOTICE Features WARNING: This appliance should be installed in accordance with national wiring regulations.

  • Page 10: Electrical Safety

    Electrical Safety Electrical Safety WARNING: This appliance must be properly grounded. To minimize the risk of electric shock, you must alway plug into a grounded outlet. WARNING: Do not cut or remove the grounding prong from the power wire. WARNING: Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring.

  • Page 11: Characteristics

    Characteristics Ventilation via Total Heat Exchanger Exhausts indoor air via the Total heat exchanger outdoor. • The outdoor air heat exchanged is supplied to indoor. Operate the ventilator in the [Ventilation via Total heat exchanger] in summer/winter when cool/heat operation is done. Exhaust air Outdoor air Total Heat Exchanger...

  • Page 12: Operating Instructions

    Operating Instructions Operating Instructions LCD Remote Controller (Ventilation System Remote Controller AZLRAD0) 1. Display Window 2. Execute/Cancel of Time Reservation,Weekly Reservation/Weed Day Select/Holiday Select Button 3. Operation/Stop Button 4. Delay Time Button 5. Rapid Ventilation Button 12 Ventilator EXTERNAL VENTILATOR OPERATION SUB FUNCTION Heater Preheat Linked Run...

  • Page 13

    Method to operate and select air volume EXTERNAL VENTILATOR OPERATION SUB FUNCTION Linked Run Heater Preheat Auto Auto Defrost Humidify Dual Remote Central Run Heat XCH Auto Normal Fan Speed Z O N E Delay Time Filter Time 1 2 3 4 PLASMA e-SAVER fresh...

  • Page 14: Ventilation Mode Setting

    Operating Instructions Ventilation Mode Setting EXTERNAL VENTILATOR OPERATION SUB FUNCTION Heater Preheat Linked Run Auto Auto Defrost Humidify Dual Remote Central Run Heat XCH Auto Normal Fan Speed Z O N E Delay Time Filter Time 1 2 3 4 PLASMA e-SAVER fresh...

  • Page 15

    Rapid Ventilation/Power Saving Ventilation EXTERNAL VENTILATOR OPERATION SUB FUNCTION Linked Run Heater Preheat Auto Defrost Humidify Dual Remote Central Run Heat XCH Auto Normal Fan Speed Z O N E Delay Time Filter Time 1 2 3 4 PLASMA e-SAVER fresh Timer Program set...

  • Page 16: Additional Function

    Operating Instructions Additional function Setting of current time • You can easily set the current time. EXTERNAL VENTILATOR OPERATION SUB FUNCTION Heater Preheat Linked Run Auto Auto Defrost Humidify Dual Remote Central Run Heat XCH Auto Normal Fan Speed Z O N E Delay Time Filter Time 1 2 3 4...

  • Page 17

    Weekly Reservation Setup No reservation operation is done with the current time not setting up. Example) To operate the ventilator at 06:00 ~ 08:00 and 13:00 ~ 22:00 on Monday EXTERNAL VENTILATOR OPERATION SUB FUNCTION Linked Run Heater Preheat Auto Auto Dual Remote Defrost Humidify...

  • Page 18

    Operating Instructions Holiday Setup Example) In the case that it is holiday on Tuesday. EXTERNAL VENTILATOR OPERATION SUB FUNCTION Heater Preheat Linked Run Auto Auto Defrost Humidify Dual Remote Central Run Heat XCH Auto Normal Fan Speed Z O N E Delay Time Filter Time 1 2 3 4...

  • Page 19

    On/Off Reservation ‘On’ Reservation • Automatically turns on when the reservation time set up. Timer Timer Timer Cancel fresh Auto Program Week Holiday Set/Clr TIME RESET Hour Cover open status ‘Off’ Reservation • Automatically turns off when the reservation time set up. EXTERNAL VENTILATOR OPERATION SUB FUNCTION...

  • Page 20: Maintenance And Service

    Maintenance and Service Maintenance and Service Handling and Cleaning To prevent function of the ventilator deteriorating, clean dust adhered to the air filter and total heat exchanger regularly. Cleaning Cycle - Air filter: More than once every 6 months. - Total heat exchanger: More than once every 2 years (Cleaning cycle may increase according to pollution degree.) Method to take each part out 1.

  • Page 21

    Method to Clean and Replace Each Part 1. Cleaning of Air Filter Clean once every 6 months. • If the air filter is damaged, purchase it from the service center or professional agent. 2. Cleaning of Total Heat Exchanger Suck dusts adhered to the surface of the Total heat exchanger with a cleaner.

  • Page 22

    Maintenance and Service Assembly and Check after Maintenance 1. Assembly of Total heat exchanger Securely put the corner parts (6 parts) of the Total heat exchanger into the holder for assembly and slide them into the inside of the main body. 2.

  • Page 23: Check Item Prior To Notify A Failure

    Check Item prior to notify a failure Symptom The Product doesn't work The Product doesn't work through you press the 'ON' switch Through you change the Indoor Air Volume, the operation mode doesn't change And it changes to 'Auto' or Low'. Check Item prior to notify a failure Check Item Is power not supplied?

  • Page 24

    P/No.: 3828A20468A Printed in Korea After reading this manual, keep it in a place easily accessible to the user for future reference.
