LG LZ-H050GBA2 Owners & Installation Manual
Hide thumbs
Also See for LZ-H050GBA2:
- Installation manual (29 pages) ,
- Service manual (45 pages) ,
- Owner's manual (24 pages)
Advertisement

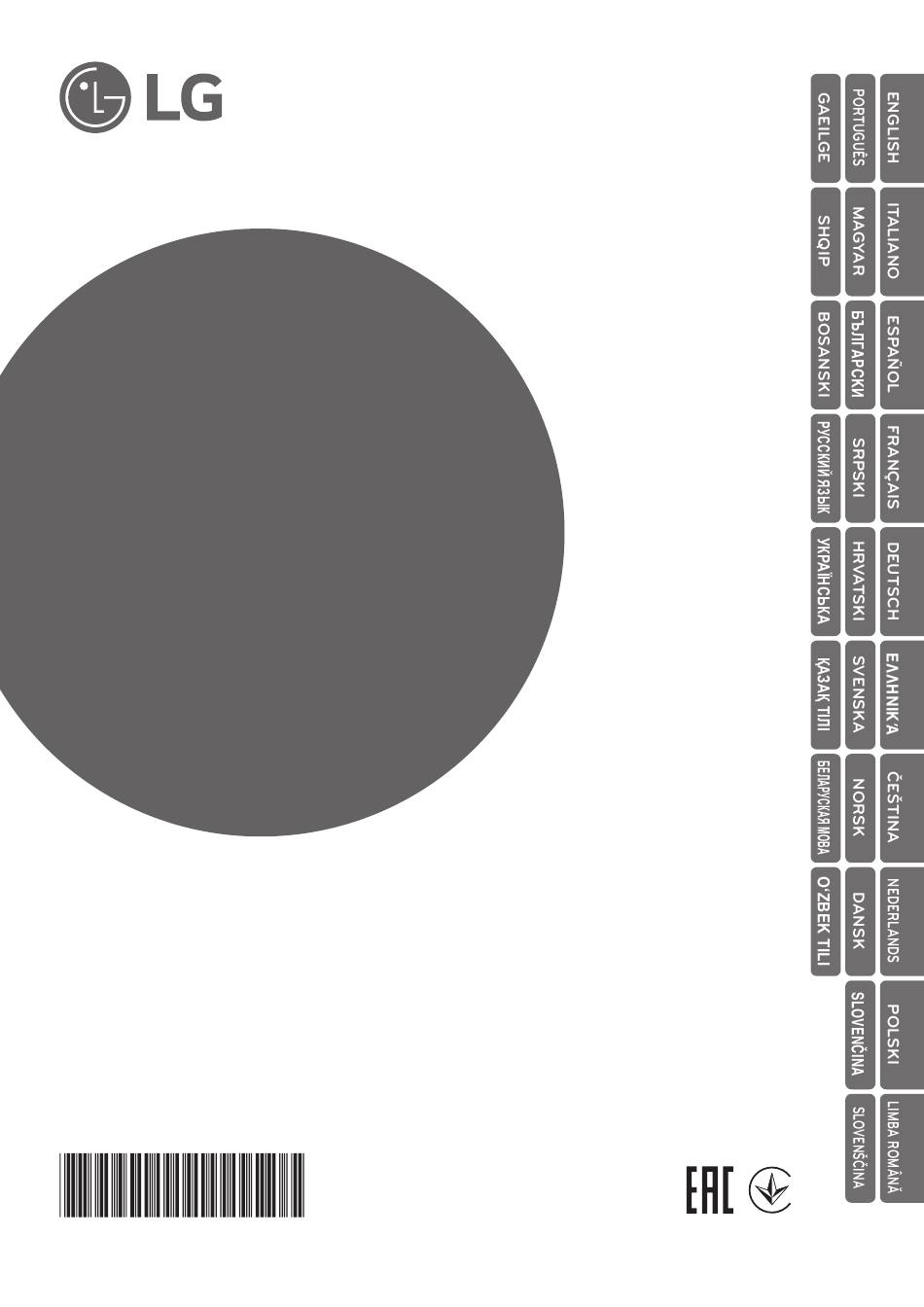

OWNER'S &
INSTALLATION MANUAL
VENTILATION
SYSTEM
Please read this installation manual completely before installing the product.
Please retain this installation manual for future reference after reading it thoroughly.
VENTILATOR
Original instruction
For commercial use
This manual is the simplified version of original manual.
You can obtain the original manual from website.
MFL69268903
Rev.09_021925
Copyright © 2016 - 2025 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG LZ-H050GBA2
Summary of Contents for LG LZ-H050GBA2
- Page 1 Please retain this installation manual for future reference after reading it thoroughly. VENTILATOR Original instruction For commercial use This manual is the simplified version of original manual. You can obtain the original manual from website. www.lg.com MFL69268903 Rev.09_021925 Copyright © 2016 - 2025 LG Electronics Inc. All Rights Reserved.
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk. - Page 3 • Do not install this product in a refrigerated warehouse, heated swimming pool or other location where the temperature and humidity are significantly different. - There is risk of electrical shock, malfunctioning. • Install this product in an environment where the temperature ranges from -10 °C to +45 °C and the relative humidity is less than 80 %.
- Page 4 - Otherwise, it may cause dispute with the neighbors. • If anyone other than a licensed Professional installs, repairs, or alters LG Electronics Air Conditioning Products, the warranty is voided. - All costs associated with repair are then the full responsibility of the owner.
-
Page 5: Prior To Operation
PRIOR TO OPERATION Preparing for operation Contact an installation specialist for installation. Plug in the power plug properly. Use a dedicated circuit. Do not use an extension cord. Do not start/stop operation by plugging/unplugging the power cord. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 6: Standards For Model
(Unit: mm) Heat Exchange Type H: Total Heat Recovery Capacity 250 / 350 / 500 1 020 Indicates that this is LG's VENTILATION system / 800 / 1 000 CMH 1 026 1 263 Duct slope: More than 1/30(wall side) obtaining of right distance Ceiling fixing bolt... -
Page 7: Group Control
- Make sure that the power cords may not be removed by pulling them. Signal wire LZ-H050GBA2 / LZ-H080GBA2 / LZ-H100GBA2 / LZ-H150GBA2 / LZ-H200GBA2 Power When controlling multiple indoor units with event communication function with one remote controller, you must change the master/slave setting from the indoor unit. - Page 8 Method to clean and replace each part When installing more than 2 wired remote controllers to one air conditioner, please connect as the right picture. Cleaning of air filter - When installing more than 2 units of wired remote controller to Clean once every 6 months.
- Page 11 ① ② LG Electronics Inc. Single Contact Point (EU/UK) : LG Electronics Deutschland GmbH ③ Alfred-Herrhausen-Allee 3-5, 65760 Eschborn, Germany ① ② ③ ENGLISH Single Contact Point Germany ITALIANO Punto di contatto unico Germania ESPAÑOL Punto de contacto único Alemania FRANÇAIS...
- Page 12 LG Electronics Inc. 84, Wanam-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, KOREA UK Importer : LG Electronics U.K. Ltd Velocity 2, Brooklands Drive, Weybridge, KT13 0SL Eco design requirement • The information for Eco design is available on the following free access website.
