- Page 1 Basic Operation Instructions LiNX Controller ™...

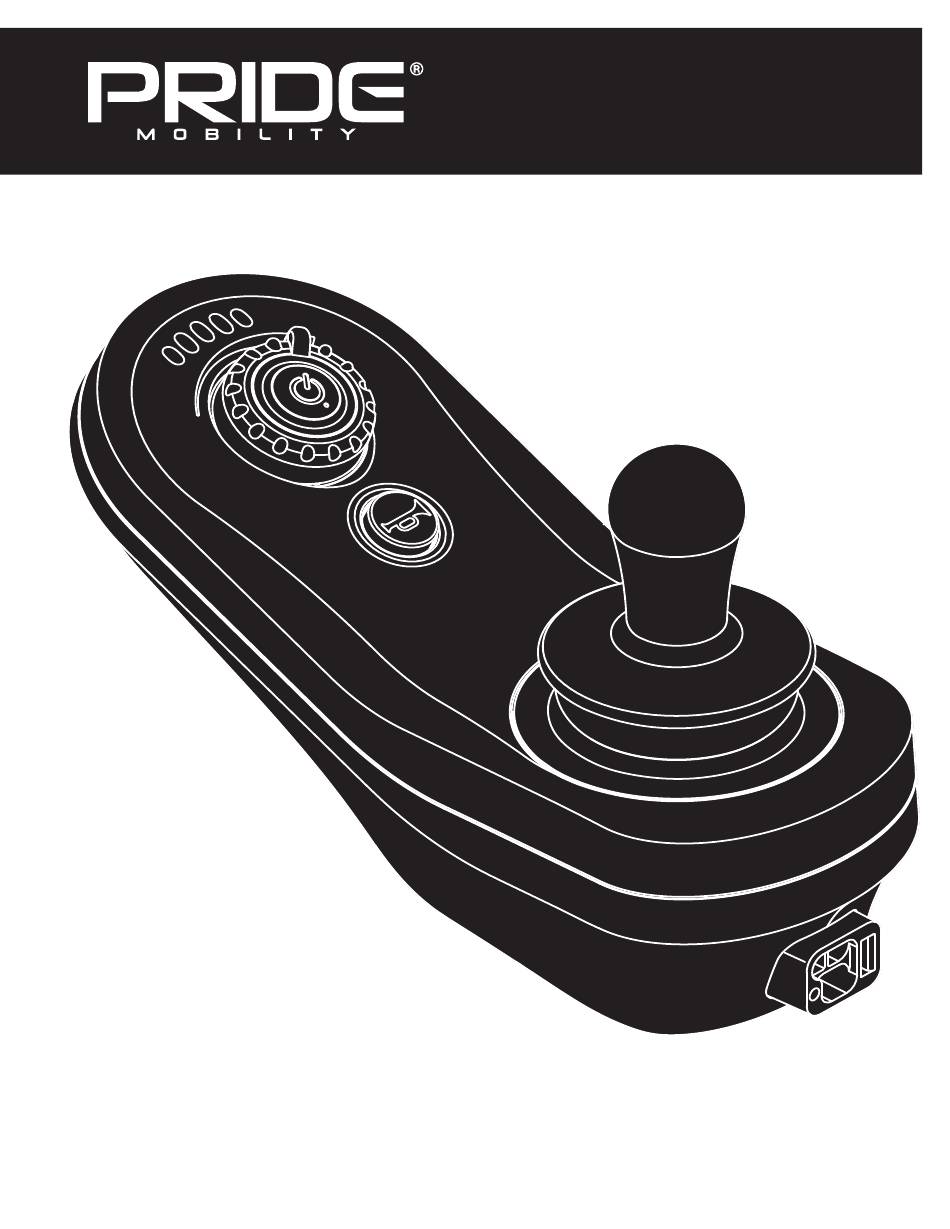

- Page 2 Identification Key Controller Battery Condition Meter On/Off Button Speed Symbol Horn Button Joystick Charger Port Speed Dial © Copyright 2021 INFMANU5164/Rev B/August 2021...
- Page 3 Safety Guidelines WARNING! An authorized Pride Provider or a qualified technician must perform the initial setup of this product and must perform all of the instructions in this manual. The symbols below are used throughout this owner’s manual and on the product to identify warnings and important information.
-
Page 4: Table Of Contents
Table of Contents Label Information ..........................5 LiNX Controller ........................... 6 Precautionary Guidelines ........................6 Operating the LiNX Controller ......................8 Controller Connector ........................10 Off-Board Charger/Programming Socket ..................10 Lock Mode ............................10 Sleep Mode (if enabled) ........................10 Out of Neutral at Power Up (OONAPU) ................... -
Page 5: Label Information
Label Information Product Safety Symbols The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner's manual. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. -
Page 6: Linx Controller
Precautionary Guidelines Before operating the LiNX controller, please read the following. These guidelines are provided for your benefit and will aid you in the safe operation of the controller system. Turn off the power to the controller when transferring to or from your power chair. - Page 7 LiNX Controller Features Figure 1 provides information on the LiNX controller components and connections. Use this diagram to familiarize yourself with the function and location of each component before using the LiNX controller. The following functions are available with the LiNX controller: ...
-
Page 8: Operating The Linx Controller
Operating the LiNX Controller The LiNX controller is used to operate your power chair and all of its components. The LiNX controller consists of (see figure 1): 1. joystick 2. keypad 3. off-board charger/programming socket 4. controller connector 5. power module... - Page 9 Horn Key The horn key activates a warning horn. Battery Condition Meter The battery condition meter consists of five lights arranged in an arc over the on/off key. As the battery voltage drops, the number of lights reduces from right to left. When the battery capacity drops to 10% or below, one left red LED will flash.
-
Page 10: Controller Connector
To unlock the LiNX controller: 1. While the LiNX controller is locked, press the on/off key to turn on the controller. All LEDs will flash briefly. The LEDs will then slowly ripple from right to left, then will flash briefly. -
Page 11: Error Codes
Error Codes The on/off key will flash red to indicate error codes when the LiNX controller detects an abnormal condition in the electrical system. The on/off key will flash a number of times quickly, then pause, then flash again. The on/off key will continue to flash the error codes until the problem is fixed. The following table identifies the individual error codes. - Page 16 The Netherlands (Authorised EU Representative) 401 York Avenue De Zwaan 3 Duryea, PA 18642 1601 MS Enkhuizen www.pridemobility.com www.pride-mobility.nl www.pridemobility.eu Canada 5096 South Service Road Italy Beamsville, Ontario L0R 1B3 Via del Progresso-ang. Via del Lavoro www.pridemobility.ca Loc. Prato della Corte 00065 Fiano Romano (RM) Australia www.pride-italia.it...
