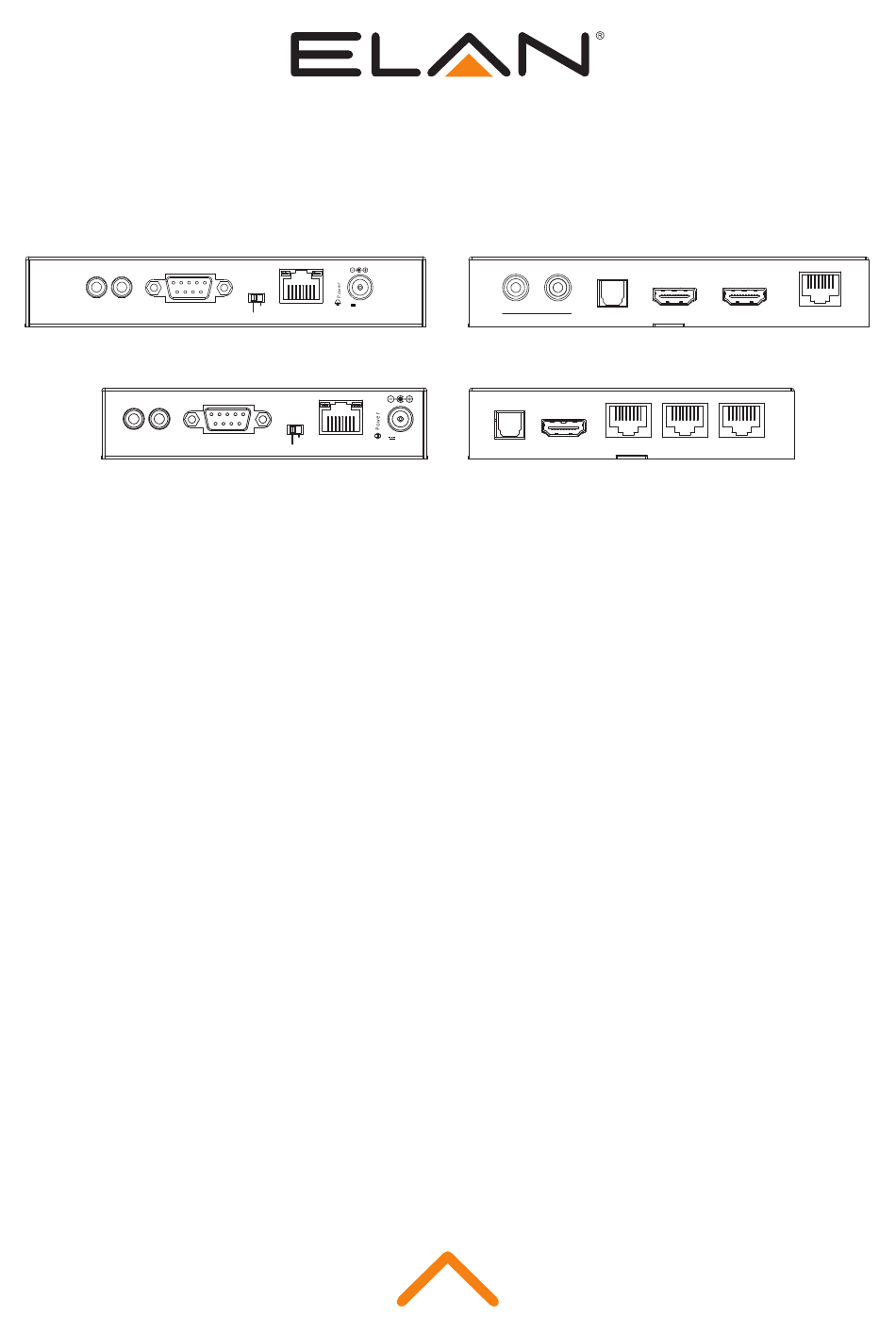

L
R
Optical Out
Audio Out
EL-4KHDBT-TX-70-E-ARC-IRS
IR TX IR RX
RS-232
EL-4KHDBT-RX-70-E-ARC-IRS
IR TX IR RX
Optical In
HDMI Out
EL-4KHDBT-TXRX-70-E-ARC-IRS
(ARC)
HDMI In
HDMI Loop Out
Ethernet
15V
ARC
HDBT OUT
2A
NON-ARC
RS-232
ARC
HDBT In
Optical
Ethernet 1
Ethernet 2
Ethernet 3
User Manual
EL-4KHDBT-RX-70-E-ARC-IRS
IR TX IR RX
L
R
Audio Out
EL-4KHDBT-TX-70-E-ARC-IRS
15V
2A
Optical In
HDMI Out
IR TX IR RX
(ARC)
RS-232
ARC
HDBT In
Optical Out
HDMI In
HDMI Loop Out
Optical
Ethernet 1
Ethernet 2
Ethernet 3
RS-232
ARC
HDBT OUT
NON-ARC
15V
2A
Ethernet
15V
2A
Advertisement
Related Manuals for Elan ELAN EL-4KHDBT-RX-70-E-ARC-IRS
Summary of Contents for Elan ELAN EL-4KHDBT-RX-70-E-ARC-IRS
- Page 1 (ARC) Optical Out HDMI In HDMI Loop Out Ethernet Audio Out EL-4KHDBT-RX-70-E-ARC-IRS EL-4KHDBT-TX-70-E-ARC-IRS (ARC) IR TX IR RX IR TX IR RX RS-232 HDBT In RS-232 HDBT OUT Optical Out HDMI In HDMI Loop Out Ethernet Optical NON-ARC Audio Out EL-4KHDBT-RX-70-E-ARC-IRS EL-4KHDBT-TX-70-E-ARC-IRS IR TX IR RX...
- Page 2 HDBaseT/Cat5e/6/6a cabling with or in close parallel proximity to mains power cables. Do not substitute or use any other power supply other than the enclosed unit, or a ELAN approved replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the manufacturer’s warranty.
- Page 3 EL-4KHDBT-TXRX-70-E-ARC-IRS USER MANUAL Introduction Our range of HDBaseT products offer the very best in performance and flexibility. The EL-4KHDBT-RX-70-E-ARC-IRS HDBaseT Receiver and EL-4KHDBT-TX-70-E-ARC-IRS HDBaseT Transmitter are industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 70m at 4K (100m at 1080p) over a single CAT cable.
- Page 4 NON-ARC Analog audio 2CH L/R output - Connects to third party audio to allow the 12v IR signals, such as the IR output on ELAN amplifier for audio breakout of either local HDMI or Audio Return system controllers or from the IR output on a Xantech, Niles, or Channel from EL-4KHDBT-RX-70-E-ARC-IRS.
- Page 5 • The Yellow HDBaseT status link light will blink when the output is on and working • The Green HDBaseT link light will blink if there is an unstable connection between the ELAN HDBaseT Transmitter and HDBaseT Receiver • The Green HDBaseT link light will be lit when a there is an active HDBaseT Receiver connected to the Transmitter •...
- Page 6 The ELAN range of HDBaseT products include multiple options for control and routing of IR. IMPORTANT: The ELAN HDMI Platinum, Matrix, & HDBaseT product lines output 5 volts to power an IR Receiver on the IR Input and include an EL-4KACC-IR-CAB, 3.5mm Mono to 3.5mm Stereo 5v to 12v IR converter cable. This cable is required when using 12v IR products from Xantech, Niles, and SpeakerCraft.
- Page 7 EL-4KHDBT-TXRX-70-E-ARC-IRS USER MANUAL contact techsupport@elanhomesystems.com...
- Page 8 EL-4KHDBT-TXRX-70-E-ARC-IRS USER MANUAL www.elanhomesystems.com...
- Page 9 EL-4KHDBT-TXRX-70-E-ARC-IRS USER MANUAL Specifications: EL-4KHDBT-TX-70-E-ARC-IRS EL-4KHDBT-RX-70-E-ARC-IRS Video Input Connectors: Video Input Connectors: 1x HDMI Type A, 19-pin, female, locking 1x HDBaseT™ RJ45 connector Video Output Connectors: Video Output Connectors: 1x HDMI Type A, 1x HDBaseT™ 1x HDMI Type A RJ45 connector Audio Input Connector: 1x Optical (TOSLINK) Audio Output Connectors:...
- Page 10 EL-4KHDBT-TXRX-70-E-ARC-IRS USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 11 EL-4KHDBT-TXRX-70-E-ARC-IRS USER MANUAL Notes –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– contact techsupport@elanhomesystems.com...
- Page 12 1 (800) 472-5555 - US techsupport@elanhomesystems.com 1 (707) 283-5900 - International web: 1 (707) 283-5901 - Fax elanhomesystems.com © 2017 ELAN is a registered trademark of Core Brands, LLC. 10014810 Rev-C0, 04/2017 ®...
