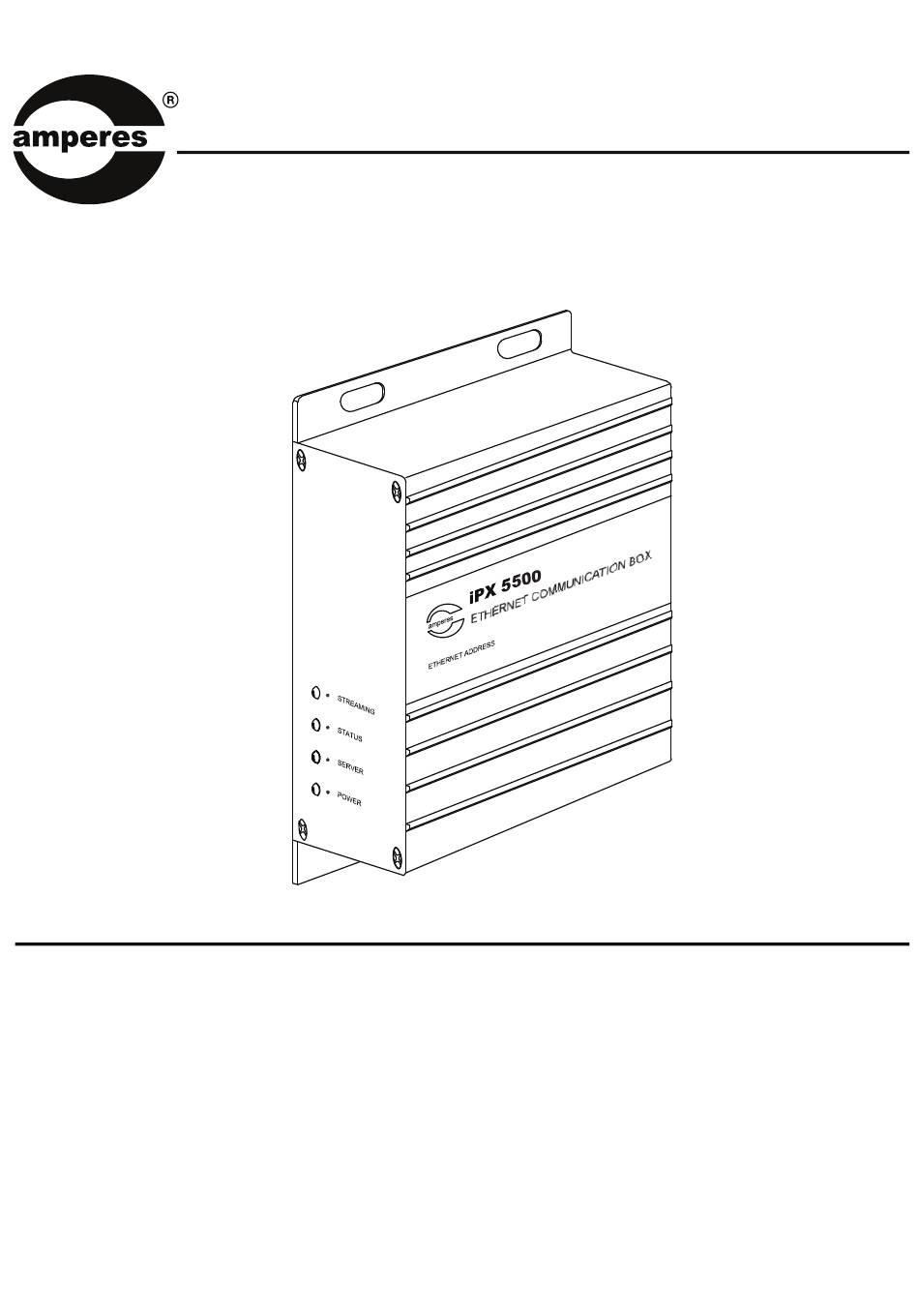

INSTRUCTION MANUAL
iPX5500
Ethernet Communication Box
Thank you
for choosing another quality product from Amperes Electronics.
iPX5500 is the communication interface for equipment with RS485 outputs and remote PC, enabling remote monitor-
ing and controls via Amperes PMX II LAN software. It converts RS485 data received from equipment into IP and shall
be received by remote PC in the LAN environment. Likewise for remote controlling, user would be able to perform
setting or changing parameters via the software modules available in PMX II LAN.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPX5500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amperes iPX5500

Summary of Contents for Amperes iPX5500

  • Page 1 RS485 outputs and remote PC, enabling remote monitor- ing and controls via Amperes PMX II LAN software. It converts RS485 data received from equipment into IP and shall be received by remote PC in the LAN environment. Likewise for remote controlling, user would be able to perform...

  • Page 2: Parts Identification

    A voltage free contact is recommended to trigger the message playback. 7. RS485 PORT Data port for connection to equipment to be monitored / controlled, such as QP Power Amp, BC9740 Battery Charger, PAGE 2 iPX5500 | ETHERNET COMMUNICATION BOX...
  • Page 3 PMX II LAN on PC iPX5500 QP2000 Devices can be connected to PMX II LAN by terminating RS485 port of the equipment to iPX5500’s RS485 terminals. For each data loop, max 16 nos of connections is possible. Other devices: MR1301...

  • Page 4: Device Setup

    Device Setup iPX5500 shall require some simple setups, kindly follow the step by step instructions as listed below. The unit shall be connected to LAN network for a complete system. The default IP address is 192.168.0.100. Login page shall appear and the default User ID and Password are both “admin”.
  • Page 5 ( See on the page 6 for detail ) Note: Ensure Server IP is correctly set. If PMX II LAN is used as Firmware Update the source, the Server IP shall correspond to the PC’s IP address. File iPX5500 | ETHERNET COMMUNICATION BOX PAGE 5...
  • Page 6 Click the Upload Firmware button to find the Find the updated firmware file. updated firmware file. Updating progress Ready to upload, click Upload button to upload the firmware. After finish updating firmware, the browser automati- cally restart. PAGE 6 iPX5500 | ETHERNET COMMUNICATION BOX...

  • Page 7: Technical Specification

    Case : 100 x 147 x 40 mm Dimension (WxHxD) 320 g Weight Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. iPX5500 | ETHERNET COMMUNICATION BOX PAGE 7...

  • Page 8: Warranty Conditions

    Information contained in this manual is subject to change without prior notice and does not represent a commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
