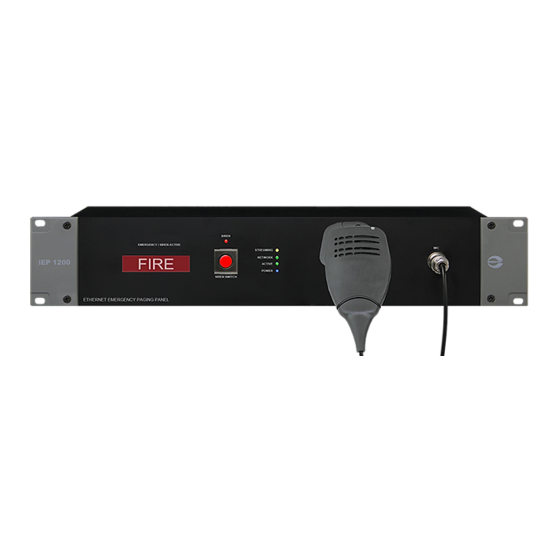

INSTRUCTION MANUAL
iEP1200
Ethernet Emergency Paging Microphone Panel
SIREN
EMERGENCY / SIREN ACTIVE
POWER
MIC
FIRE
STREAMING
iEP 1200
STATUS
amperes
SERVER
ETHERNET EMERGENCY PAGING PANEL
Thank you
for choosing another quality product from Amperes Electronics.
iEP1200 is an extension of the conventional EP1200 Emergency Panel which is now LAN ready. It is an essential tool for firemen
to access directly to EVAC system with highest priority. All other paging in progress, music streaming would be directly cut off upon
activation of the unit.
It has an added feature as compared to conventional type,ie. it can be programmed as local system's highest priority paging
device ( for distributed system ), or as a global highest priority. Although it is essentially an IP based device, other analogue ports
are available such as message player input, emergency dry contact and aux line audio output. Direct access to the unit's web page
is available for system setup.
Ver 2/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iEP1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Amperes iEP1200

Summary of Contents for Amperes iEP1200

  • Page 1 Amperes Electronics. iEP1200 is an extension of the conventional EP1200 Emergency Panel which is now LAN ready. It is an essential tool for firemen to access directly to EVAC system with highest priority. All other paging in progress, music streaming would be directly cut off upon activation of the unit.

  • Page 2: Parts Identification

    Streaming - Blink whenever iEP1200 streaming siren or paging to iPX5155 (Paging Client). Status - Blink whenever there is a network activity ongoing. Server - This green LED shall lit when iEP1200 successfully establish a connection with Paging Server (iPX5101). 4. HANDHELD PAGING MICROPHONE Pressing the microphone switch shall have priority over other inputs such as Siren, External Message input as well as normal paging or BGM feeds.
  • Page 3 Bootloader mode: To enter this mode, hold the reset button until POWER, SERVER, and STATUS LEDs lit. Enter this mode to do firmware updating if normal mode updating does not work. All iEP1200 settings remain intact in this mode. Reset to factory default settings: Hold the reset button until POWER, SERVER, STATUS and STREAMING LEDs lit will reset all iEP1200 settings to factory default settings.
  • Page 4 NETWORK SWITCH WITH FIBER LINK LOCAL PA EQUIPMENT INCL. PRE-AMPLIFIER MIXER ZONE 51 55 LINE BALAN OUTPU RESET DECODER POWER AMPLIFIERS ETHER ETC. Music / Paging Audio + Data SUB RACK PAGE 4 iEP1200 | ETHERNET EMERGENCY PAGING MICROPHONE PANEL...

  • Page 5: Connecting The Unit

    INPUT (BALANCED LINE) CONNECT TO ZONE SELECTORS FOR E/M OVERRIDING SIGNAL VOLUME ACTIVATION CONNECTIVITY TO NETWORK SWITCH. EXTERNAL SIREN ACTIVATION CONTACT (VOLTAGE FREE) ie. FIRE CONTROL CENTER / SMOKE DETECTORS, ETC iEP1200 | ETHERNET EMERGENCY PAGING MICROPHONE PANEL PAGE 5...
  • Page 6 The dry contact at the MR1301 is used to trigger iEP1200, thus overriding the normal audio source for priority paging. It is then connected to the Emergency Relay trigger at the Zone Selector, providing a dry contact for connecting 24V DC to override external volume controllers.
  • Page 7 AMP Output SPEAKER iEP1200, which is installed at main rack for a large system using IP as communication interface, shall be able to override remote buildings / system as similar to single rack installation. iEP1200 | ETHERNET EMERGENCY PAGING MICROPHONE PANEL...
  • Page 8 Signal FR. ZONE SELECTOR 100V LINE OUTPUT Volume Controller TO SPEAKERS The above diagram shows detailed connections for using iEP1200 to override volume control and activating ALL CALL at zone selector. PAGE 8 iEP1200 | ETHERNET EMERGENCY PAGING MICROPHONE PANEL...
  • Page 9 Device Setup Via Browser iEP1200 shall require some simple setups, kindly follow the step by step instructions as listed below. The unit shall be connected to LAN together with iPX5101 Paging Server and iPX5155 Paging Client to form a complete system. The default IP address is 192.168.0.100.

  • Page 10: Firmware Update

    Update firmware in Bootloader Mode: If the iEP1200 “hanged”, it is required to perform system reset by : 1. Press & hold the reset button until “STREAMING” LED is turned ON. This will set the IP address to default address 192.168.0.100.

  • Page 11: Technical Specifications

    Dimension (WxHxD) 482 x 88 x 180 Weight 2.85 kg Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. iEP1200 | ETHERNET EMERGENCY PAGING MICROPHONE PANEL PAGE 11...

  • Page 12: Warranty Conditions

    Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized dealers.
