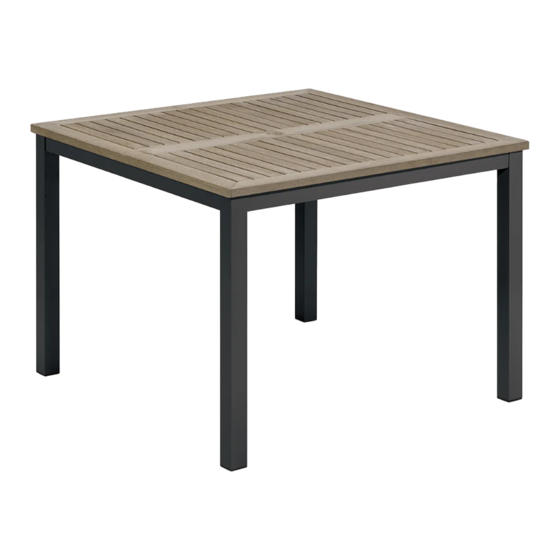

39" TRAVIRA TABLE
ASSEMBLY INSTRUCTIONS
COMPONENTS
Table Top Assembly
Quantity: 1
HARDWARE
Flat Washer
A
Quantity: 8
NOTE
Table top may vary from illustrations but the assembly is the same for all Travira 39" tables.
15 Kingbrook Parkway, Suite 100 Simpsonville, KY 40067 p. 877.866.3331
Corner Posts
Quantity: 4
Lock Washers
B
C
Quantity: 8
3
Parasol Hole Cap
Quantity: 1
Bolts
D
Quantity: 8
4
Aluminum Umbrella
Hole Reducer - optional
Quantity: 1
Wrench
Quantity: 1
f. 502.719.8888 oxfordgarden.com
Ver. 06.30.20
Advertisement
Table of Contents
Related Manuals for Oxford Garden TRAVIRA 39" TABLE
Summary of Contents for Oxford Garden TRAVIRA 39" TABLE
- Page 1 Ver. 06.30.20 39” TRAVIRA TABLE ASSEMBLY INSTRUCTIONS COMPONENTS Table Top Assembly Corner Posts Aluminum Umbrella Parasol Hole Cap Quantity: 1 Quantity: 4 Hole Reducer - optional Quantity: 1 Quantity: 1 HARDWARE Flat Washer Lock Washers Bolts Wrench Quantity: 8 Quantity: 8 Quantity: 8 Quantity: 1 NOTE...
- Page 2 INSTRUCTIONS STEP 1 STEP 2 On a flat surface, lay table top upside down. Using the provided wrench, secure corner post to the table top using a metal lock washer, washer bolt . Repeat for the remaining 3 corner posts. STEP 2 (detail) STEP 3 Carefully turn the assembled dinning table in an upright...
