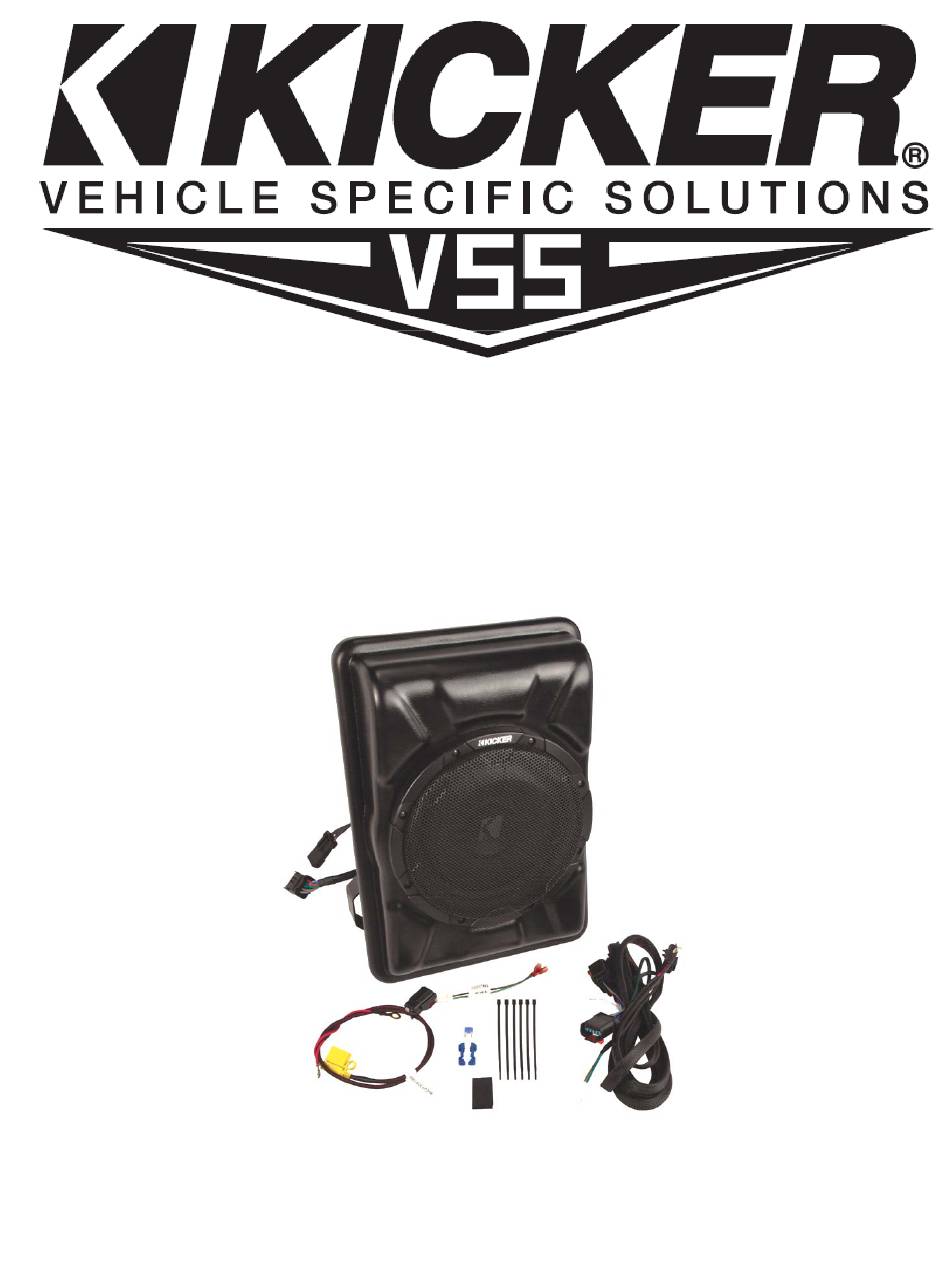

- Page 1 SSON12 Designed for 2012 and newer Chevrolet Sonic vehicles ® Subwoofer Assembly Subwoofer Harness Subwoofer Power Harness Fuse Wire Ties X 6 Foam Strip Wire Taps X 2 Adaptor Harness ©2015 Stillwater Designs SSON12-A4-20150930 ...
- Page 2 Power Harness Routing 1. Disconnect negative battery cable from battery. 2. Using a razor knife make a cross shaped incision in the large rubber grommet from inside the vehicle and feed the power wire from the engine compartment to the cabin. Using a fish tape wire is recommended.
- Page 3 Subwoofer Harness Routing Remove the driver’s side kick/threshold panel by Retainer – Rotate loosening the retainer at the top and then pulling counterclockwise loose. Fig. 4 Remove the lower portion of the rear seat by pulling straight up on the front edge. Snap loose the rear driver’s side threshold panel located along the bottom of the door opening.
- Page 4 Subwoofer Input Connection without Optional Amplifier 15. Connect the six inch adapter harness to the end of the two- pin connecter. Locate position 40 and position 32 on the radio connecter and install one of the wire taps onto the wire. Lay the wire in the open channel, fold the connecter body over and squeeze with a pair of pliers until connecter snaps shut, Fig 7.
- Page 5 20. Lay the poly bag that the subwoofer is packaged in on top of the carpet behind the driver’s side seat- back. (The poly bag prevents the Velcro® from engaging the carpet prematurely. Set the subwoofer on top of the poly bag and connect the subwoofer harness. 21.
- Page 6 NOTE: If installing the optional amplifier system, refer to the amplifier instruction manual to complete the installation. 28. Reinstall all previously removed parts in reverse order. 29. Install fuse into fuse holder. 30. Reconnect negative battery cable to battery. ...
- Page 7 Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: Check the battery voltage to make sure it is not discharged below 11 volts.
- Page 8 If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510 ...
