30AMP 24VDC / 40AMP 12VDC MAXIMUM POWER POINT TRACKING
CONFORMS TO:
UL STD. 1741
CERTIFIED TO:
CAN/CSA STD. E335-1/2E
2003167
CONFORMS TO:
EN 61326-1:2006
EN 60335-1:2002 + A11:2004 + A1:2004
EN 60335-2-29:2004
FCC CFR 47 Part 15 Subpart B
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: 1) This device may not cause
harmful interference, and 2) This device must
accept any interference received, including
interference
that
operations.
THIS MANUAL INCLUDES IMPORTANT SAFETY INSTRUCTIONS FOR MODELS SB3024iL, SB3024DiL
© Blue Sky Energy, Inc. 2017

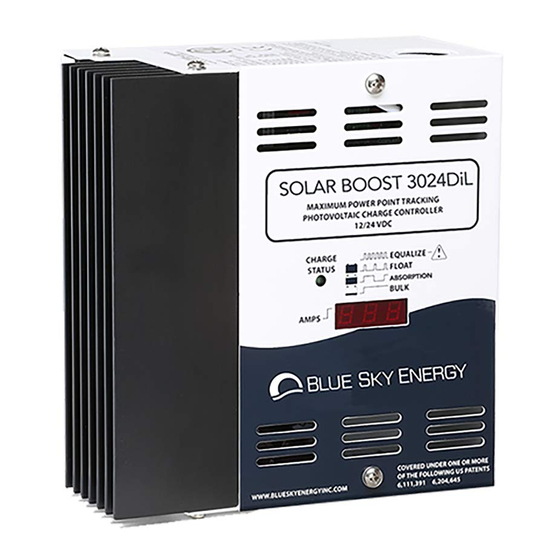

SB3024iL / SB3024DiL
(SOLAR BOOST™ 3024(D)iL MPPT)
SOLAR CHARGE CONTROLLER
INSTALLATION AND OPERATION MANUAL
may
cause
undesired
COVERED UNDER ONE OR MORE OF THE FOLLOWING US PATENTS
SAVE THESE INSTRUCTIONS
6,111,391 • 6,204,645
430-0024 F (EN)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blue Sky Energy SOLAR BOOST 3024DiL
Summary of Contents for Blue Sky Energy SOLAR BOOST 3024DiL
- Page 1 THIS MANUAL INCLUDES IMPORTANT SAFETY INSTRUCTIONS FOR MODELS SB3024iL, SB3024DiL SAVE THESE INSTRUCTIONS COVERED UNDER ONE OR MORE OF THE FOLLOWING US PATENTS 6,111,391 • 6,204,645 © Blue Sky Energy, Inc. 2017 430-0024 F (EN)
-
Page 2: Table Of Contents
Blue Sky Energy - Solar Boost 3024(D)iL TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........................2 PRODUCT DESCRIPTION ............................3 Part Numbers and Options ........................3 OPERATION ................................ 3 Charge Status Indicator ........................4 Optional Digital Display ........................3 Optional Remote Displays ........................3 Multi-Stage Charge Control ......................... -
Page 3: Important Safety Instructions
Never charge a frozen battery. Be sure battery is mounted in a well ventilated compartment. Add distilled water in each cell of a lead-acid battery until battery acid reaches level specified by battery manufacturer. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 4: Product Description
Blue Sky Energy - Solar Boost 3024(D)iL PRODUCT DESCRIPTION Solar Boost™ 3024iL is multi-stage Maximum Power Point Tracking (MPPT) photovoltaic battery charge controller capable delivering up to 30A or 40A depending on PV modules and battery voltage. The auxiliary output can serve as either a 2A auxiliary battery charger, or as a 20A load controller with or without variable Dusk-to-Dawn lighting control. -
Page 5: Charge Status Indicator
When mounted vertically as described in the installation section, the 3024 can deliver full output in an ambient temperature of up to 40C (104F). If an over temperature condition exists, the 3024 will cycle on/off, reducing average power delivery to within safe limits. During thermal shutdown the Charge Status Indicator will display an OFF condition. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 6: Optional Temperature Compensation
Blue Sky Energy - Solar Boost 3024(D)iL OPTIONAL TEMPERATURE COMPENSATION The optional battery temperature sensor automatically adjusts charge voltage setpoints based on battery temperature which enhances battery performance and life, and decreases maintenance. The default compensation factor of 5.00mV/C/cell is suitable for most lead- acid chemistry batteries. -
Page 7: Selecting Pv Modules
5. If display is present, set display DIP’s to #4 ON, #1-3 OFF 3. Restore battery power for 10 seconds, then remove battery power. 6. The unit is now set to as shipped factory default settings. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 8: Battery And Pv Voltage
Blue Sky Energy - Solar Boost 3024(D)iL Battery and PV Voltage ➢ Nominal battery and PV voltage are determined automatically. The battery is considered to be 12V if battery voltage when first connected is less than 16V, or 24V if battery voltage is greater. PV voltage is also determined automatically. -
Page 9: Output Current Display
Do not connect to the 20A Load terminal for auxiliary battery charge. ➢ (*) The LOAD indicator light will be ON whenever power is available at the Load and Auxiliary Battery Charge terminals. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 10: Auxiliary Battery Charge
Blue Sky Energy - Solar Boost 3024(D)iL AUXILIARY BATTERY CHARGE – DIP #4 OFF The auxiliary charge function is used to charge an auxiliary battery of the same voltage as the primary battery. If the primary battery is charging in Absorption (Acceptance) or Float, up to 2A is diverted to the auxiliary battery at roughly the same charge voltage. Auxiliary battery charge is disabled during bulk or equalization. -
Page 11: Multi-Controller Wiring And Setup
➢ CAUTION: Mount the unit with heatsink fins oriented vertically to promote cooling and do not enclose in a confined space. The 3024 is not watertight and must be protected from rain, snow and excessive moisture. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 12: Troubleshooting Guide
Blue Sky Energy - Solar Boost 3024(D)iL DETAILED DIMENSIONAL DRAWING This knockout symmetrically duplicated in opposite wall (cabinet top) Combination ½ - ¾ inch conduit knockouts, 3 places FIGURE 6 TROUBLESHOOTING GUIDE: SYMPTOM PROBABLE CAUSE ITEMS TO EXAMINE OR CORRECT... - Page 13 Auxiliary battery will not receive charge unless primary battery is highly charged in Absorption (Acceptance) or Float. Load on Auxiliary battery too high Maximum auxiliary charge current is roughly 2A. Load may need to be reduced. Blue Sky Energy | USA | www.blueskyenergyinc.com...
- Page 14 Blue Sky Energy - Solar Boost 3024(D)iL SYMPTOM PROBABLE CAUSE ITEMS TO EXAMINE OR CORRECT System appears Not set for 3 stage charge Check Float voltage setpoint. OK, but will not System will not switch out of Bulk Battery is highly discharged or very large relative to relative to available...
-
Page 15: Specifications
Factory default voltages unless programmed via DIP switches or with an IPN ProRemote display or UCM. NB. As a part of our continuous improvement process specifications are subject to change without prior notice. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 16: Two Year Limited Warranty
FIVE (5) YEAR LIMITED WARRANTY Blue Sky Energy, Inc. (hereinafter BSE), hereby warrants to the original consumer purchaser, that the product or any part thereof shall be free from defects due to defective workmanship or materials for a period of five (5) years subject to the conditions set forth below.
