Reliable G4 XLO-QR ECLH Quick Start Manual

Quick-Response for Light Hazard and
Ordinary Hazard occupancies
Spacing up to 20ft x 20ft (6.1m x 6.1m)

Features

1. Extended Coverage protection to 400 ft
(37.2 m ) per sprinkler.
2
2. Nominal K-factor of 11.2 (160 metric).
3. Ordinary temperature rated - 165°F (74°C).
4. Flat cover plate with ½ inch (13 mm) assem-
bly adjustment.
5. Smooth aesthetic ceiling profile.
6. Solid or perforated cover plate available in a
wide variety of colors and finishes.
7. Threaded cover plate does not require clips
or springs.

Approvals

1. Listed by Underwriters Laboratories, Inc.
and certified by UL for Canada (cULus).
UL Listing Category
Sprinklers, Automatic and Open Extended Coverage Sprin-
klers-Light Hazard and Ordinary Hazard Occupancy UL
Guide Number – VNIV.

Product Description

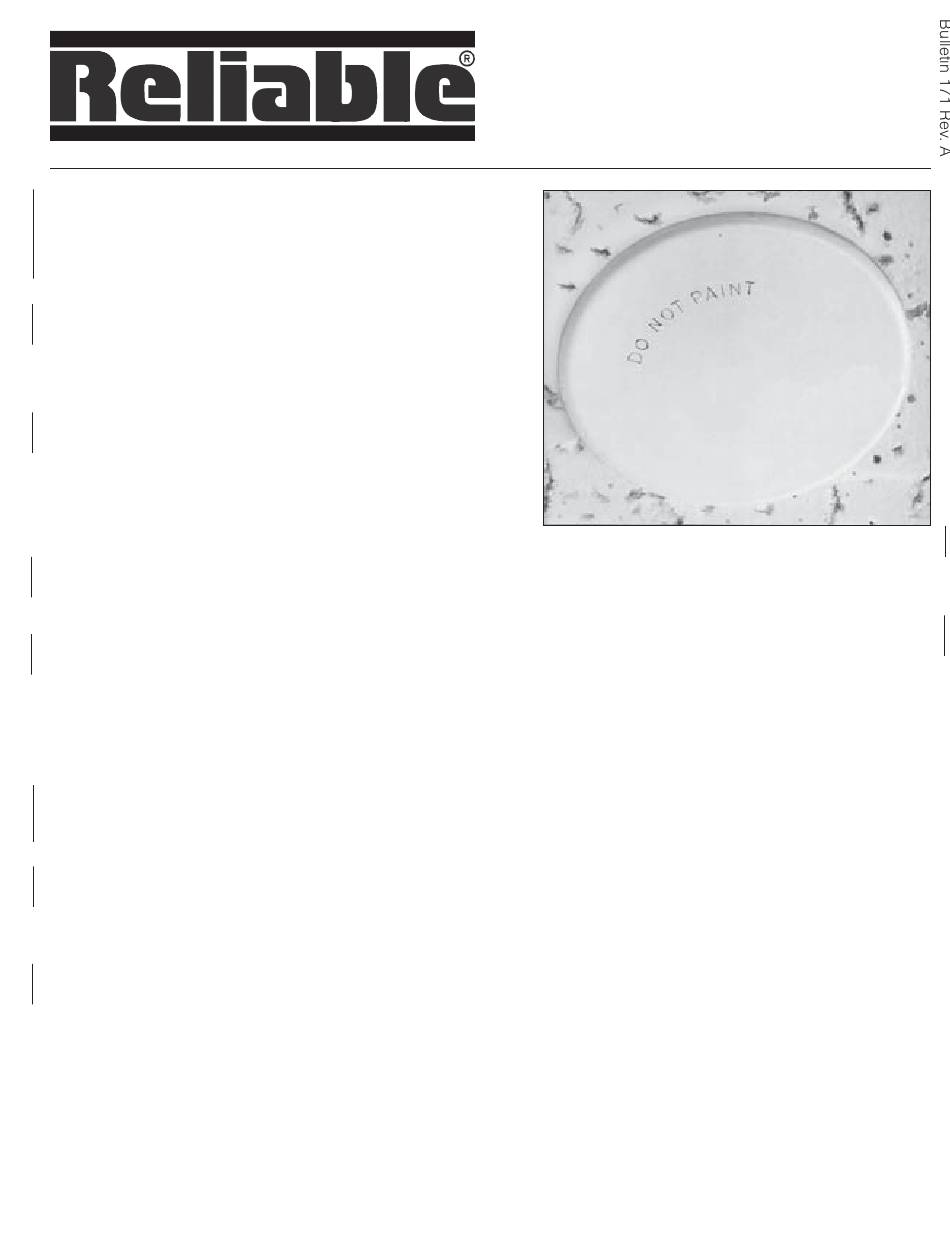

The Reliable Model G4 XLO-QR ECLH/ECOH Concealed
sprinkler is an Extended Coverage Sprinkler for use in Light
Hazard and Ordinary Hazard occupancies with a coverage
area of up to 400 square feet (37.2 m
The use of extended coverage sprinklers can provide lower
Installation costs by requiring fewer sprinklers, less piping and
reduced labor. The larger K-factor 11.2 (160 metric) provides
for reduced pressures to achieve the required flow compared
with smaller K-factor sprinklers.
The G4 XLO-QR ECLH/ECOH can eliminate the need for
precise cutting of drop nipples. The Thread-on/Thread-off cov-
er plate assembly provides up to 1/2" (13 mm) of adjustment
to allow the cover to fit accurately against the ceiling. The fire
protection system need not be shut down when adjusting or
removing the Thread-on/Thread-off cover plate assembly.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
2
) per sprinkler.
2
Model G4 XLO-QR ECLH/ECOH
Quick-Response Extended Coverage
K11.2 (160 metric)
Concealed Pendent (SIN R7146)
G4 XLO-QR ECLH/ECOH Concealed

Design Criteria

G4XLO-QR ECLH/ECOH sprinklers are to be installed ac-
cording to the design criteria shown in this Bulletin, NFPA 13,
and all other local codes and ordinances. Flows and pres-
sures, as shown in the Flow Requirements chart on page 2
of this Bulletin, must be selected based on the spacing and
hazard classifications.
The following criteria also apply:
• Minimum sprinkler spacing is 9 ft (2.75 m).
• Sprinklers have a minimum flow requirement for each
spacing as shown in the Flow Requirements chart on
page 2.
• Sprinklers are only to be used in systems hydraulically
designed per NFPA 13.
• Deflector to commodity clearance shall be a minimum
of 18 inches (457 mm).
• Sprinklers shall be installed in unobstructed construc-
tion as defined in NFPA 13.
• Sprinklers can be installed under a sloping ceiling not
exceeding 2 inches (50.8 mm) of rise in 12 inches
(304.5 mm).
• Maximum working pressure is 175 psi (12.1 bar) at the
sprinkler.
Bulletin 171 Rev. A
