- Page 1 HLI3000C01 3G/HD/SD-SDI DIGITAL VIDEO LOGO INSERTER Version 1.0 Albalá Ingenieros, S.A. 21 April 2016 - © Albalá Ingenieros S.A. - All rights reserved Medea, 4 - 28037 Madrid - Spain...
- Page 2 HLI3000C01...
-
Page 3: Table Of Contents
4.3. Supported video formats ......................19 4.4. Image files ............................19 4.4.1. File formats ........................... 20 4.5. Module remote control and supervision ................21 4.5.1. Details of the HLI3000C01 registers ................22 5. GLOSSARY ........................29 6. REGULATIONS ........................31 7. VERSIONS ......................... 33... - Page 4 HLI3000C01...
-
Page 5: Description
SNMP management and the ability to record events in a file including date and time information for further analysis. The HLI3000C01 is a TL3000 terminal line module and can be housed in a three rack unit (3 RU) UR3000 mounting frame or a 1 RU UR3100 mounting frame. -
Page 6: Features
• Module control and supervision can be done remotely when the mounting frame is equipped with a communications controller module. • One UR3000 mounting frame can house up to 12 HLI3000C01 modules. If power supply redundancy is required and FA3000 or FA3001 modules are used then only 10 modules can be housed in the mounting frame. -
Page 7: Block Diagram
Albalá Ingenieros | Manual HLI3000C01 1.3. Block diagram... - Page 8 Albalá Ingenieros | Manual HLI3000C01 HLI3000C01...
-
Page 9: Specifications
Albalá Ingenieros | Manual HLI3000C01 2. SPECIFICATIONS SD/HD/3G-SDI digital video signal input Connector Impedance 75 Ω ± 1 % Return loss: Up to 3 GHz >10 dB Up to 1.5 GHz >15 dB Input Return loss when bypass is active: Up to 3 GHz >10 dB... - Page 10 Albalá Ingenieros | Manual HLI3000C01 Accepted formats 625i50, 525i59.94, 720p50, 720p59.94, 1080i50, 1080i59.94, 1080p25, 1080p29.97, 1080p50, 1080p59.94 Embedded audio format According to SMPTE 272M, SMPTE ST 299-1 standards Input to output delay: 270 Mbit/s 7.8 us aprox. 1.5 Gbit/s 1.7 us aprox.
-
Page 11: Installation
ELECTROSTATIC DISCHARGE. Always use antistatic bags clearly identified with a high degree of shielding for storage and transportation. The HLI3000C01 module is composed of two parts: one HDE3000P19 main board and one HDE3000P18 rear board. Both parts must be installed in a UR3000 or UR3100 mounting frame following the instructions in the corresponding section of this chapter. -
Page 12: Environmental Considerations
3.5. Installing the module in the mounting frame The steps needed to install the HLI3000C01 module with the rear board in the mounting frame are: 1 - Disconnect all power cords from the power supplies of the mounting frame. - Page 13 Albalá Ingenieros | Manual HLI3000C01 Details for installation of the module in 3 RU mounting frames Details for installation of the module in 1 RU mounting frames...
-
Page 14: Interconnection
Albalá Ingenieros | Manual HLI3000C01 3.6. Interconnection The following figure shows the HLI3000C01 module rear board connector layout. Rear view of the HLI3000C01 The HLI3000C01 module provides an input (IN) and four outputs (OUT1-PGM(LOOP), OUT2-PGM, OUT1-PVW, OUT2-PVW) for 3G/HD/SD-SDI digital video. The connector marked OUT1-PGM (LOOP) corresponds to a signal output protected by a bypass relay that maintains the input signal during a loss of power or removal of the module. -
Page 15: Electrical Sdi Video Connections
All coaxial cable used must be Belden 1694A or similar. This type provides the greatest lengths because it is used to calculate the equalizers in the HLI3000C01. Cables carrying signal between the module and the devices should use single piece construction, avoiding spliced sections with double BNC female or barrel connectors. -
Page 16: Gpo Connections
Albalá Ingenieros | Manual HLI3000C01 3.6.3. GPO connections The outputs GPO1-4 are used to indicate if logos 1-4 are being inserted into the program output. The outputs GPO5-6 are used to indicate if logos 1 and 2 are being inserted into the preview output. -
Page 17: Operation

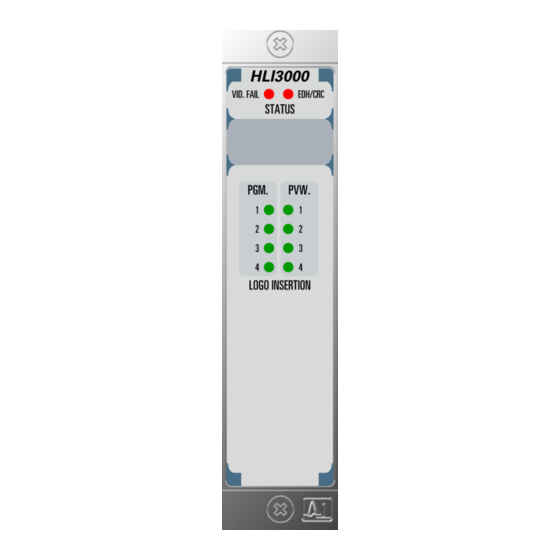

Albalá Ingenieros | Manual HLI3000C01 4. OPERATION This section describes the significance of the front panel indicators of the HLI3000C01 module and their remote control and monitoring ability. 4.1. Front panel description The appearance of the front panel and the elements it contains are shown in the following illustration. -
Page 18: Functional Description
4.2. Functional description The HLI3000C01 allows the simultaneous insertion of up to four logos from a palette of 32 stored in non volatile FLASH memory. The HLI3000C01 has two logo insertion channels on the input signal, called program channel and preview channel. Logos selected in both channels and their positions in the image are the same at all times, but the inclusion of each logo on each channel can be enabled and disabled independently. -
Page 19: Supported Video Formats
- 32 logos of up to 256 kB. The HLI3000C01's factory settings are for operation with eight logos of up to 1 MB If this parameter is modified all logo files stored in module will be erased. This parameter only affects the size occupied by the logos in memory and does not affect the size of the image to be rendered, which can always be up to 1920x1080 pixels. -
Page 20: File Formats
Albalá Ingenieros | Manual HLI3000C01 4.4.1. File formats To be accepted by HLI3000C01 module, the logo image files must have the following characteristics: - They should be type 6 (RGB + ALPHA) .png format files. - They should not use the palette or interlaced options. This is not usually a problem because the files generated by most image editing programs do not use these options by default. -
Page 21: Module Remote Control And Supervision
Albalá Ingenieros | Manual HLI3000C01 4.5. Module remote control and supervision The HLI3000C01 requires remote control for configuration. In order to perform remote configuration and supervision of the module an optional TL3000 family remote communications controller must be installed in the mounting frame. -
Page 22: Details Of The Hli3000C01 Registers
- Control of the timecode information OSD insertion. - Preset definition and recall. 4.5.1. Details of the HLI3000C01 registers The HLI3000C01 module provides control and status registers that can be read and written by means of specific commands described in the communication control module user manuals. - Page 23 Albalá Ingenieros | Manual HLI3000C01 PVW_INS_LOGO_2 0x01 0x20 Allows inserting the logo in the preview output (Logo 2) 0=No, 1=Yes PVW_INS_LOGO_3 0x01 0x40 Allows inserting the logo in the preview output (Logo 3) 0=No, 1=Yes PVW_INS_LOGO_4 0x01 0x80 Allows inserting the logo in the preview output (Logo 4)
- Page 24 Albalá Ingenieros | Manual HLI3000C01 Name snmp trap Description INPUT_F_PRES_SEL 0x00 0x31 0xFF Preset loaded when input fails 0=Preset 1, 1=Preset 2, 2=Preset 3, 3=Preset 4, 4=Preset 5, 5=Preset 6, 6=Preset 7, 7=Preset 8, 8=Preset 9, 9=Preset 10, 10=Preset 11, 11=Preset 12, 12=Preset...
- Page 25 Albalá Ingenieros | Manual HLI3000C01 PGM_INS_LOGO_2 0x01 0x02 Allows inserting the logo in the program output (Logo 2) 0=No, 1=Yes PGM_INS_LOGO_3 0x01 0x04 Allows inserting the logo in the program output (Logo 3) 0=No, 1=Yes PGM_INS_LOGO_4 0x01 0x08 Allows inserting the logo in the program output (Logo 4)
- Page 26 Albalá Ingenieros | Manual HLI3000C01 INVERT_GPO4_POL 0x18 0x08 Changes GPO4 polarity to normally closed 0=No, 1=Yes NO_SIGNAL_MASK 0x19 0x01 Allows masking no SDI signal fail 0=Disabled, 1=Enabled UNLOCK_MASK 0x19 0x02 Allows masking the unlock fail 0=Disabled, 1=Enabled EDH_ERROR_MASK 0x19 0x04...
- Page 27 Albalá Ingenieros | Manual HLI3000C01 CLOCK_FORMAT 0x00 0x39 0x03 Allows selectign the clock format 0=hh:mm:ss:fr:f, 1=hh:mm:ss:fr, 2=hh:mm:ss, 3=hh:mm CLOCK_AM_PM 0x00 0x39 0x0C Allows selecting the clock mode 0=24h, 1=12h, 3=12h+AM/PM CLOCK_SIZE 0x00 0x39 0x10 Allows selecting the clock size 0=Small, 1=Big...
- Page 28 Albalá Ingenieros | Manual HLI3000C01 HLI3000C01...
-
Page 29: Glossary
Albalá Ingenieros | Manual HLI3000C01 5. GLOSSARY 3G/HD/SD-SDI 3G/HD/SD - Serial Digital Interface for high definition or standard definition digital television capable of transmitting bitrates of 2.970 Gbit/s, 2.967 Gbit/s, 1.485 Gbit/s, 1.483 Gbit/s and 270 Mbit/s. Ancillary Time Code. Ancillary data packet inserted into the digital video signal for transmission of VITC or LTC information. - Page 30 Albalá Ingenieros | Manual HLI3000C01 On Screen Display. A display of text or graphics overlayed on the actual television image being transmitted. Using the OSD information about the configuration and status of the OSD insertion module or about the signals passing through the module can be seen.
-
Page 31: Regulations
Albalá Ingenieros | Manual HLI3000C01 6. REGULATIONS SMPTE ST 259 (2008) SDTV Digital Signal/Data Serial Digital Interface. See also: ITU-R BT.656-5 SMPTE 272M (2004) Formatting AES/EBU Audio and Auxiliary Data into Digital Video Ancillary Data Space. SMPTE ST 292-1 (2011) 1.5 Gb/s Signal/Data Serial Interface. - Page 32 Albalá Ingenieros | Manual HLI3000C01 HLI3000C01...
-
Page 33: Versions
Albalá Ingenieros | Manual HLI3000C01 7. VERSIONS Ver. Date Description 13-06-2013 Preliminary Version 21-04-2016 First version... - Page 34 Albalá Ingenieros, S.A. Medea, 4 - 28037 Madrid Spain +34 913274453 www.albalaing.com info@albalaing.com...
