Hoist Fitness CF Commercial Freeweight CF-3252-A Owner's Manual

Vertical knee raise
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

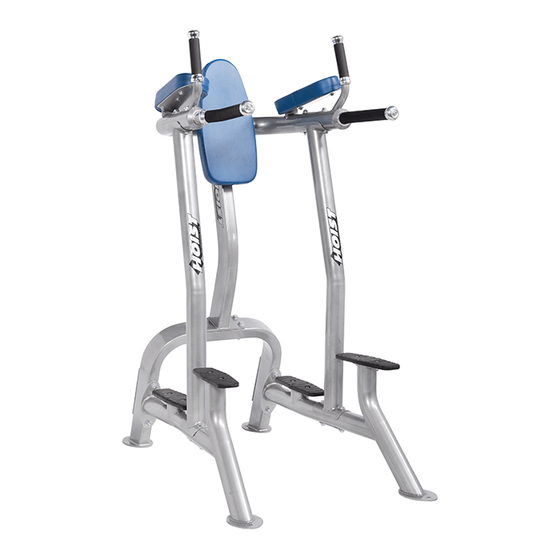

CF-3252-A VERTICAL KNEE RAISE (VKR)
TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE
EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
MACHINE CODE
A05
CF-3252-A
**WARNING!**
INJURY OR DEATH.
Customer Service
(800) 548-5438
(858) 578-7676
Fax
(858) 578-9558

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF Commercial Freeweight CF-3252-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoist Fitness CF Commercial Freeweight CF-3252-A

Summary of Contents for Hoist Fitness CF Commercial Freeweight CF-3252-A

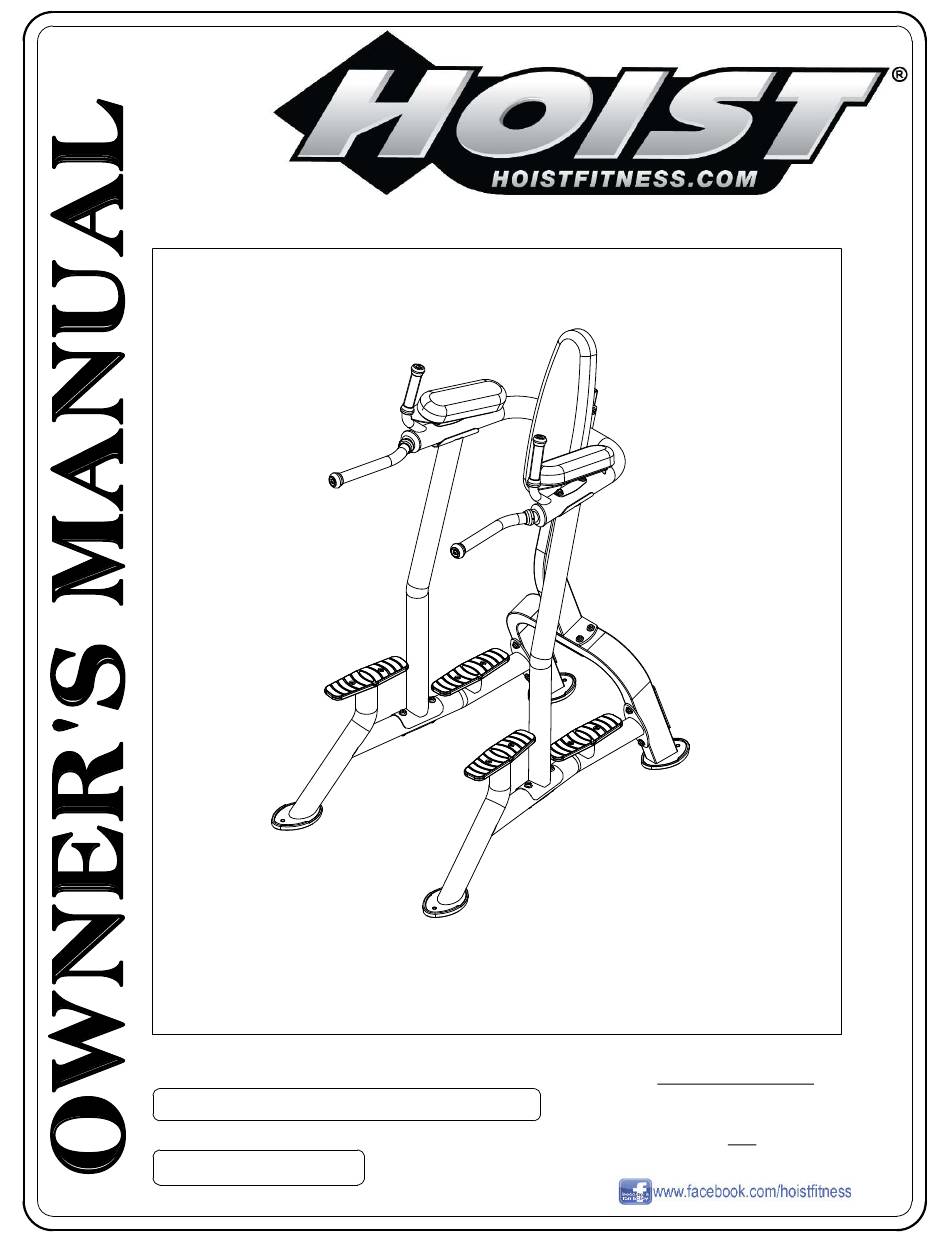

  • Page 1 CF-3252-A CF-3252-A VERTICAL KNEE RAISE (VKR) **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438...

  • Page 2: Table Of Contents

    OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............PAGE 01 CF-3252-A ASSEMBLY...

  • Page 3: Instructions

    OWNER'S MANUAL INSTRUCTIONS Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only HOIST replacement parts when servicing.
  • Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 CF-3252-A ASSEMBLY...

  • Page 5: Frame Assembly

    OWNER'S MANUAL FRAME ASSEMBLY CF-3252-A ASSEMBLY PAGE 04...
  • Page 6 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. PAGE 05 CF-3252-A ASSEMBLY...
  • Page 7 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. CF-3252-A ASSEMBLY PAGE 06...
  • Page 8 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. PAGE 07 CF-3252-A ASSEMBLY...
  • Page 9 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. **BACKBONE ASSEMBLY FOR CF-3252-A** IMPORTANT! IF ASSEMBLING A FITNESS TREE (CF-3962-A), SKIP TO THE ASSEMBLY STEP ON THE NEXT PAGE CF-3252-A ASSEMBLY PAGE 08...
  • Page 10 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. **BACKBONE ASSEMBLY FOR CF-3962-A** IMPORTANT! FOR CF-3962-A ASSEMBLY, REFER TO THE CF-3962-A OWNER'S MANUAL ONCE THIS ASSEMBLY STEP IS COMPLETE. 026-01X3739 (UPRIGHT PULL UP ASSEMBLY) SHIPPED SEPARATELY WITH CF-3962A-OPT-1 PAGE 09 CF-3252-A ASSEMBLY...
  • Page 11 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. *IMPORTANT* NOW THAT THE CF-3252-A IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF NOT, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
  • Page 12 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - REPEAT ASSEMBLY FOR OPPOSITE SIDES. PAGE 11 CF-3252-A ASSEMBLY...
  • Page 13 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. CF-3252-A ASSEMBLY PAGE 12...
  • Page 14 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 13 CF-3252-A ASSEMBLY...

  • Page 15: Pre-Assembly

    OWNER'S MANUAL PRE-ASSEMBLY CF-3252-A ASSEMBLY PAGE 14...

  • Page 16: Decal Placement

    OWNER'S MANUAL DECAL PLACEMENT PAGE 15 CF-3252-A ASSEMBLY...

  • Page 17: Decal Reference

    OWNER'S MANUAL DECAL REFERENCE 021-0003135 021-0003008 021-0003221 400 LBS. MAXIMUM WEIGHT RATING SERIAL # DECAL 021-0003226 CF-3252-A ASSEMBLY PAGE 16...

  • Page 18: Part List

    OWNER'S MANUAL PART LIST NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01X3738 BACK SUPPORT ASSEMBLY 026-01X5107 REAR FOOT ASSEMBLY 026-01X5117 LOWER SIDE FRAME , LEFT ASSEMBLY 026-01X5118 SIDE UPRIGHT ASSEMBLY 026-01X5119 ARM REST, RIGHT SIDE ASSEMBLY 026-01X5120 ARM REST, LEFT SIDE ASSEMBLY 026-01X5162...
  • Page 19 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 011-0116117 1/2"-13UNC X 3.50" LOW HEAD SHCS (Ni) 011-0116118 1/2"-13UNC X 3.75" LOW HEAD SHCS (Ni) 011-0116123 1/2"-13UNC X 5.00" LOW HEAD SHCS (Ni) 012-0504005 3/8"-16 UNC THIN NYLOCK NUT (Ni) 012-0504002...

  • Page 20: Abbreviations

    OWNER'S MANUAL ABBREVIATIONS BZ = Black Zinc WZ = White Zinc SS = Stainless Steel Ni = Nickel Plated HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw...
  • Page 21 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** CF-3252-A ASSEMBLY PAGE 20...

  • Page 22: Bolt Sizing Chart

    OWNER'S MANUAL BOLT SIZING CHART HEX HEAD BOLT 1/4" HHB RECOMMENDED TORQUE RANGE: 6-8 ft-lbs 5/16" HHB RECOMMENDED TORQUE RANGE: 14-17 ft-lbs 3/8" HHB RECOMMENDED TORQUE RANGE: 24-30 ft-lbs 1/2" HHB RECOMMENDED TORQUE RANGE: 60-75 ft-lbs PAGE 21 CF-3252-A ASSEMBLY...
  • Page 23 OWNER'S MANUAL BOLT SIZING CHART FLAT HEAD CAP SCREW 1/4" FHCS RECOMMENDED TORQUE RANGE: 5-7 ft-lbs 3/8" FHCS RECOMMENDED TORQUE RANGE: 19-26 ft-lbs 1/2" FHCS RECOMMENDED TORQUE RANGE: 47-65 ft-lbs CF-3252-A ASSEMBLY PAGE 22...
  • Page 24 OWNER'S MANUAL BOLT SIZING CHART BUTTON HEAD CAP SCREW 1/4" BHCS RECOMMENDED TORQUE RANGE: 5-7 ft-lbs 5/16" BHCS RECOMMENDED TORQUE RANGE: 11-15 ft-lbs 3/8" BHCS RECOMMENDED TORQUE RANGE: 19-26 ft-lbs 1/2" BHCS RECOMMENDED TORQUE RANGE: 47-65 ft-lbs PAGE 23 CF-3252-A ASSEMBLY...
  • Page 25 OWNER'S MANUAL BOLT SIZING CHART SOCKET HEAD CAP SCREW 1/4" SHCS RECOMMENDED TORQUE RANGE: 11-14 ft-lbs 5/16" SHCS RECOMMENDED TORQUE RANGE: 23-29 ft-lbs 3/8" SHCS RECOMMENDED TORQUE RANGE: 39-49 ft-lbs CF-3252-A ASSEMBLY PAGE 24...
  • Page 26 OWNER'S MANUAL BOLT SIZING CHART LOW HEAD SOCKET HEAD CAP SCREW 1/4" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 4-6 ft-lbs 5/16" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 9-12 ft-lbs 3/8" LOW HEAD SHCS RECOMMENDED TORQUE RANGE: 18-23 ft-lbs 1/2" LOW HEAD SHCS RECOMMENDED TORQUE RANGE:...
  • Page 27 OWNER'S MANUAL BOLT SIZING CHART SOCKET HEAD SHOULDER SCREW 1/4" SHSS RECOMMENDED TORQUE RANGE: 3-4 ft-lbs 5/16" SHSS RECOMMENDED TORQUE RANGE: 8-10 ft-lbs 3/8" SHSS RECOMMENDED TORQUE RANGE: 17-22 ft-lbs CF-3252-A ASSEMBLY PAGE 26...

  • Page 28: Washer Sizing Chart

    OWNER'S MANUAL WASHER SIZING CHART 013-0102026 013-0102004 013-0002004 013-0402005 013-0102003 013-0002003 1/2" 1/4" 5/16" 3/8" 3/8" 1/2" FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER LARGE, USS, 34mm SMALL, SAE, 13mm LARGE, USS, 22mm SMALL, SAE, 21mm LARGE, USS, 25mm SMALL, SAE, 27mm 013-0402007...
  • Page 29 OWNER'S MANUAL WASHER SIZING CHART (CONTINUED) 026-01M0211 026-01M0760 026-01M0198 1/4" LONG 1/2" LONG HEAVY 1/2" LONG FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M211T 026-01M0532 026-01M0551 1/4" LONG HEAVY 11/16" LONG HEAVY 1" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0780 026-01M0788 026-01M0761...

  • Page 30: Maintenance Schedule

    OWNER'S MANUAL MAINTENANCE SCHEDULE COMMERCIAL / HOME ROUTINE LATEST DATE ENTRY LIGHT COMMERCIAL MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; WEEKLY DAILY Upholstery Inspect; Cables or Belts and their WEEKLY DAILY tension Inspect;...

  • Page 31: General Maintenance Information

    OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately.

  • Page 32: Weight Training Tips

    OWNER'S MANUAL WEIGHT TRAINING TIPS Use this manual to guide you through the basic exercises you can perform on your CF-3252-A HOIST® Fitness System. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program.

  • Page 33: Exercise Log

    OWNER'S MANUAL CF-3252-A ASSEMBLY PAGE 32...

  • Page 34: Limited Warranty

    Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
