Summary of Contents for Silentnight divan
- Page 1 instructions...
- Page 2 before you start you’ll need · Wooden/rubber mallet · Phillips/slotted/pozidriv screwdriver · Pliers · Scissors To avoid the risk of injury, it is recommended that a minimum of two people assemble and install this product.
- Page 3 Glides/Castors: Push into the corner sockets and gently tap with a wooden/rubber mallet until it is fully ‘home’ . Do not use a metal hammer or object as this may damage the castors or divan base.
- Page 4 2. Make sure both screws have been fastened securely. Repeat on all 4 corners. Next screw the black glides into the remaining four holes in the divan base - two on each side. Hole 1 Hole 2...
- Page 5 Stand the divan halves on their side and attach the U clips as indicated on the diagram below. drawer storage To release the drawers, please cut the temporary restraining straps and trim off any excess. Pulling the straps off may tear the fabric.
- Page 6 attaching a headboard First of all decide which end of the bed is to be used for a headboard, then use scissors to carefully pierce the fabric where the hole can be felt underneath the stickers. Strutted headboards 1. Place the headboard bolt into the hole and fasten into place.
- Page 7 If additional fittings have been supplied, please use these instead of the standard fittings issued with the Divan Base. Pierce the Divan with the bolts and screw into the base until the shorter thread is no longer visible. Position the headboard in place.
- Page 8 *The additional cap can also be used as a spacer between the Headboard and the Divan. This should only be used as a spacer if the Divan Drawer is restricted from opening by the Headboard.

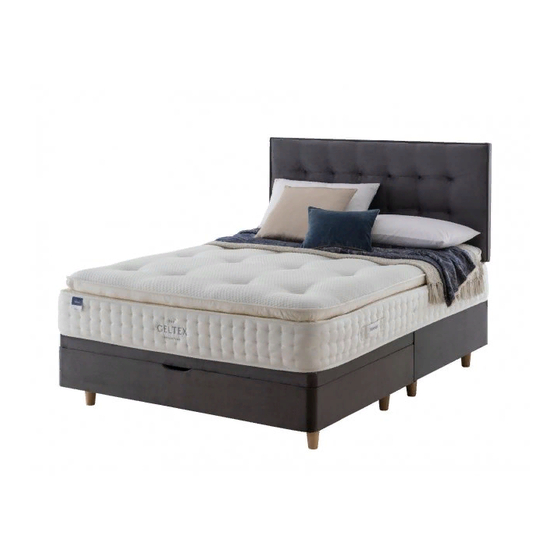

- Page 9 ottoman storage The Ottoman storage solution helps you to maximise your bedroom space. To get the best out of your new bed please follow these instructions at all times.
- Page 10 The polythene bag is recyclable. 2. Remove any proud packaging staples. 3. Stand the divan vertically on the short side. 4. Before cutting the strap, please note that the lid will open automatically.
- Page 11 Ottoman divan base. • Ensure bed linen does not get caught within the recliner mechanisms. • Close the Ottoman divan base by pushing down with both hands centrally on the mattress. • Do not operate the mechanism while the bed is being used.
- Page 12 These assembly instructions apply to the half ottoman divan base only. Please disregard the plastic clip in the standard Divan half fittings pack. Please use the metal clips to join the Divan and Ottoman halves together. Step 1 Position the two divan halves on the floor together.
- Page 13 full ottoman assembly instructions Before you start you’ll need · 2x Medium/Large Posi and/or Flat-head screwdriver or similar · Wooden/rubber mallet · Large bradawl or similar · Scissors To avoid the risk of injury, it is recommended that a minimum of two people assemble and install this product.
- Page 14 Base connection 1. Identify the 2 drilled connecting holes on the outer sides of each base unit (blue arrows) and fit the beige plastic hole plugs. Remove the ‘Pierce Here’ labels from the outside of the base units. 2. Identify the 2 drilled connecting holes on the inner sides of each base unit (red arrows) identified on the outside of the base by ‘Pierce Here’...
- Page 15 4. After applying a metal washer, insert the ‘female connector’ from the inside of one of the base units. Also using a metal washer, insert the ‘male connector’ from the inside of the other base unit. Note: This can be quite fiddly; please persevere! 5.
- Page 16 lid connection 1. Identify the 2 drilled connecting holes on the front, inner sides of each lid (green arrows), identified with a ‘Pierce Here’ label. Using the large bradawl, pierce the fabric and make a hole large enough for the ‘female’ connector in both holes.
- Page 17 headboard connection 1. The head end of each base unit has 4x threaded inserts (only 2 may be required). Identify which you need to fit your headboard and using the large bradawl, pierce the fabric (‘Pierce Here’ labels are positioned on the outside of the cover).
- Page 18 silentnight.co.uk/guarantee...
