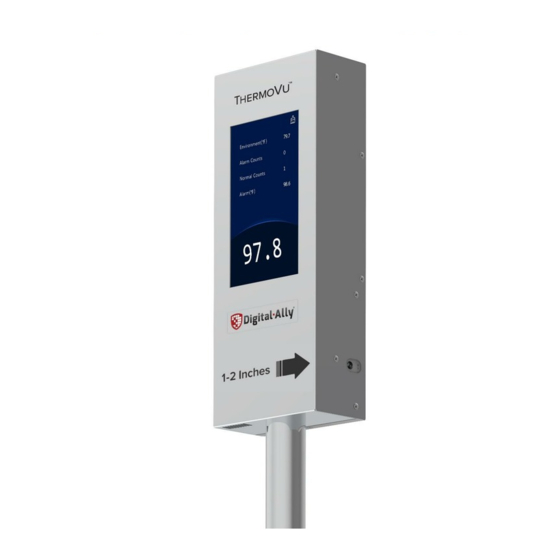

Digital-Ally ThermoVu DTM-500 Manual

Ethernet to wi-fi adapter
Hide thumbs Also See for ThermoVu DTM-500:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
ThermoVu
DTM-500, DTM600
Ethernet to Wi-Fi Adapter Guide
860-00349-00 Rev B 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ThermoVu DTM-500 and is the answer not in the manual?

Questions and answers

Related Manuals for Digital-Ally ThermoVu DTM-500

Summary of Contents for Digital-Ally ThermoVu DTM-500

  • Page 1 ThermoVu DTM-500, DTM600 Ethernet to Wi-Fi Adapter Guide 860-00349-00 Rev B 1...
  • Page 2 1. Overview 2. Setup 2.1. IOGEAR GWU637 2.2. DHCP – default setup 2.3. Static IP 2.3.1. DTM-500 2.3.2. DTM-600 3. Network Options 3.1. Web Portal 3.2. Guard Station Contact Us 860-00349-00 Rev B...
  • Page 3 Overview The Ethernet to Wi-Fi Adapter can be used to eliminate the use of an ethernet cable to connect to a network. This type of device relies on DHCP relaying, which requires the use of a static IP on some networks. Setup 2.1.

  • Page 4: Assigning A Static Ip Address

    2.3. Assigning a Static IP Address 2.3.1. DTM-500 Log into the OSD by pressing the display screen for approximately 3 seconds. Enter the password (the default is admin) in the pop-up. Select the Network Setting Icon Set the IP Address, Subnet Mask, and Default Gateway. Press Save to continue.
  • Page 5 2.3.2. DTM-600 Log into the OSD by pressing the display screen for approximately 3 seconds. Enter the password (the default is admin) in the pop-up. Select the Network Setting Icon Set the IP Address, Subnet Mask, and Default Gateway. Press Save to continue. Press the back arrow at the top left to exit the Network Settings page.

  • Page 6: Web Portal

    Web Portal From the web portal a number of settings can be configured. Using Internet Explorer, type the IP address of the device into the URL. At the prompt, type the username and password. DTM-500 DTM-600 DTM-500 DTM-600 860-00349-00 Rev B...

  • Page 7: Guard Station

    Guard Station Guard Station can be utilized for Real-Time Monitoring (Temp only for the DTM-500), Live View (Temp only for the DTM-500), Pass-Thru Records, and Entry/Exit Record Export (DTM-600 only). Reference the Real-Time Monitoring Guide for additional details: 860-00337-00. Launch Guard Station. Log-In using the following credentials: default user is admin default password is 123456...
  • Page 8 Note: with a static IP address, use of the Device Discovery Configuration may be required to detect the device. Select the Device management Icon from the Guard Station home screen. Select the Access Control Device option from the navigation pane on the left. Select the Search Config button as shown below.
  • Page 9 Select the IP Segment Option the Device Discovery Configuration pop-up. Enter the static IP address of the device. Select OK to continue. The device should now be listed as an Online Device. Contact Us 15612 College Blvd Lenexa, KS 66219 Web: www.digitalallyinc.com E-mail:...

This manual is also suitable for:

Thermovu dtm600
