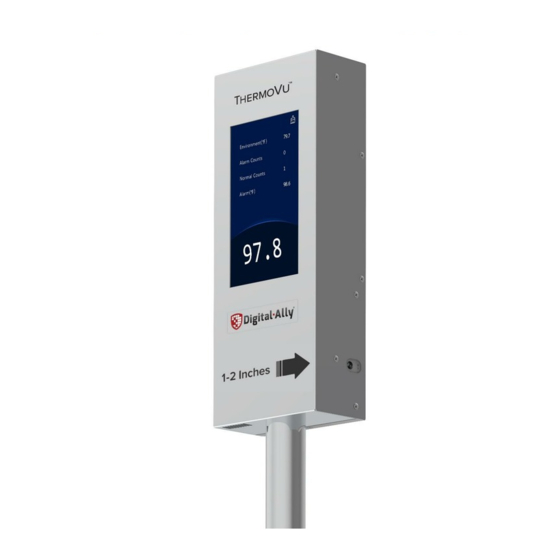

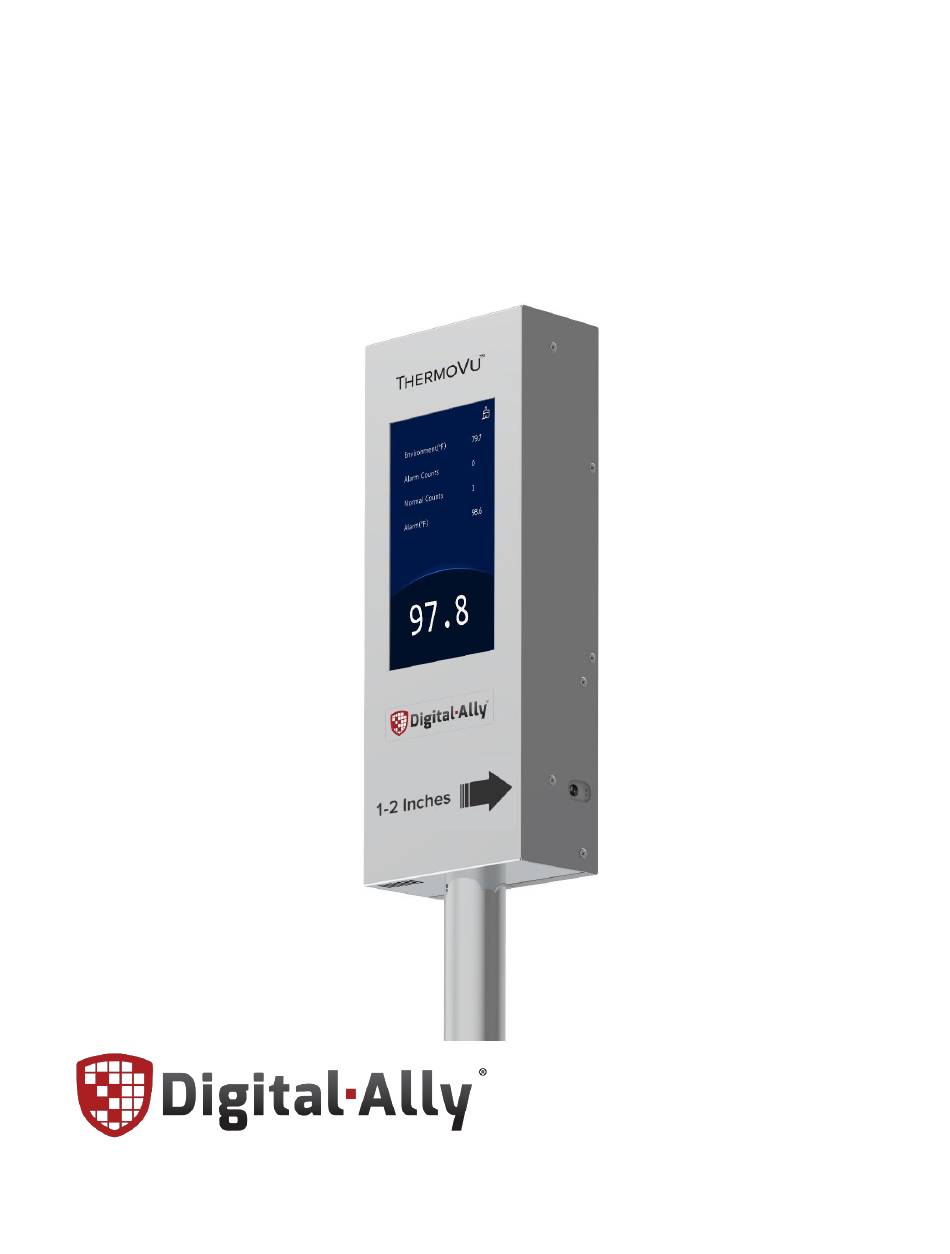

Page 1: User Guide
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B User Guide ThermoVu DTM-500... -
Page 2: Table Of Contents
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B User Guide ......................1 ThermoVu DTM-500 ........................1 Section 1 Web Portal ..................4 1.1 | Portal Access ..........................4 1.1.1 | IP Address ........................4 1.1.2 | Login ..........................5 1.1.3 | Forgot Password ......................6 1.1.4 | Reset ..........................6... - Page 3 ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.7.4 | Device Restart Device Restart interface allows the user to remotely restart the device. 25 Section 2 Contact, Spec, Warranty, Disclaimer, Safety, and Regulatory ..... 26 2.1 | Contact Information ......................26 2.2 | Specifications ........................
-
Page 4: Section 1 Web Portal
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B Section 1 Web Portal 1.1 | Portal Access 1.1.1 | IP Address To log in to the web portal, you will need the device IP address. Press and hold the display screen for approximately 3 seconds. -
Page 5: Login
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B From the touchscreen, select the Network Setting icon in the Activation Config interface. Note the IP Address. 1.1.2 | Login Open a web browser and type the IP address in the URL. -
Page 6: Forgot Password
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.1.3 | Forgot Password In the event the user has forgotten their password, select Forgot Password? A pop-up will appear noting to email dtm500@digitalallyinc.com to generate a temporary password. Option: Email the device’s serial number and date(yyyyMMdd) to dtm500@digitalallyinc.com... -
Page 7: Network Configuration
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.2 | Network Configuration 1.2.1 | Ethernet There are three options for obtaining and IP address. 1.2.1.1 | DHCP This is the default Ethernet configuration 1.2.1.2 | Static Users can configure a Static IP Address if... -
Page 8: Pppoe
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.2.1.3 | PPPoE An option for Point to Point over Ethernet. Username and Password are provided by your Internet Service Provider. -
Page 9: Dns
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.2.2 | DNS Under Network, select the DNS option. Update as needed. Click Save. 1.2.3 | Port Setting • Port Under Network, select the Port option, and the Port tab. Update as needed. -
Page 10: Ddns
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B • Port Mapping Under Network, select the Port option, and the Port Mapping tab. Update as needed. Click Save. 1.2.4 | DDNS Under Network, select the DDNS option. Update as needed. Click Save. -
Page 11: 802.1X
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.2.5 | 802.1x 802.1x provides authentication to devices trying to connect to a network. Only the authenticated devices can connect the network. This enhances security. Under Network, select the DDNS option Update as needed. -
Page 12: Network Security
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.3.2 | Network Security The following options offer an information security channel to ensure data transmission security. • HTTPS Under Security, select the Network Security option, select the HTTPS tab. Update as needed. -
Page 13: Registration Info - Not Support
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B • IP Address Filtering Use IP address filtering to allow or deny access from specified IP address(es). Under Security, select the Network Security option, select the HTTPS tab. Update as needed. Click Save. -
Page 14: System Configuration
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4 | System Configuration 1.4.1 | Device Info • Basic Info The Basic Info interface allows you to view the status of the current device. Under System, select the Basic Info option. -
Page 15: Time Setting
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.2 | Time Setting • Time The Time Interface offers several options for setting the time. Under System, select the Time option. Update as needed. Click Save. Parameter Description and Configuration Sync with System Configuration: The time is synchronized with the initially ⚫... -
Page 16: Server - Not Supported
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B • The DST Interface offers the option of enabling/disabling daylight saving time. Update as needed. Click Save. 1.4.3 | Server – not supported... -
Page 17: Advanced Setting
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.4 | Advanced Setting The Advanced Setting Interface allows configuring the temperature measurement options. Under System, select the Advanced option. NOTE: by default Temperature Measure is selected Update as needed. Click Save. -
Page 18: Ports And Devices
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.5 | Ports and Devices • IO Configuration The device has an alarm output interface which can be configured to provide an output to an external device through a normally open or normally closed connection. The alarm can be configured to an active state when either a Normal or High temperature is detected. - Page 19 ThermoVu DTM-500 User Guide | 860-00320-00 Rev B • Volume Control The Volume Control interface allows controlling the audio level. Under System, select the Ports & Devices option, and the Volume Control tab. Update as needed. Click Save.
-
Page 20: Personalization
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.6 | Personalization The Screensaver Mode interface allows customizing the image and intervals for the screensaver. Under System, select the Personalization option. Parameter Description and Configuration • On – enables screensaver Screensaver Mode •... -
Page 21: Maintenance
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.7 | Maintenance 1.4.7.1 | Software Upgrade The DTM-500 firmware can be upgraded through the Software Upgrade section. Note: it is important not to remove power during the firmware update Under System, select the Maintenance option. -
Page 22: Config Management
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.7.2 | Config Management The DTM-500 configuration can be managed through the Config Management interface. • Restore factory defaults When Default is selected, all parameters are restored to factory defaults except the administrator login password, network port parameters, and system time. - Page 23 ThermoVu DTM-500 User Guide | 860-00320-00 Rev B • Complete restore of factory defaults When Restore all settings to defaults without keeping current network and user settings is selected, all parameters are restored to factory defaults. This includes the administrator login password, network port parameters, and system time.
-
Page 24: Diagnosis Info
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.7.3 | Diagnosis Info The Diagnosis Info interface can be used to export a file containing system logs and the configuration. Select Export to begin. Note: select the Collect Image Debugging Info checkbox to include images Note: The webpage will gray out during the export. -
Page 25: Device Restart Device Restart Interface Allows The User To Remotely Restart The Device
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 1.4.7.4 | Device Restart Device Restart interface allows the user to remotely restart the device. Select Restart to begin. Select OK to continue Note: the webpage will gray out during the export. -
Page 26: Section 2 Contact, Spec, Warranty, Disclaimer, Safety, And Regulatory
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B Section 2 Contact, Spec, Warranty, Disclaimer, Safety, and Regulatory 2.1 | Contact Information 15612 College Blvd Lenexa, KS 66219 Web: www.digitalallyinc.com E-mail: info@digitalallyinc.com Phone: 913.814.7774 Fax: 913.814.7775 Customer Portal: www.digitalallyinc.com/login.cfm Support E-mail: support@digitalallyinc.com... -
Page 27: Specifications
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 2.2 | Specifications Feature Specification Measurement Area Wrist Measurement Range 30˚C to 45˚C, 86˚F to 113˚F Precision 0.1˚C, 0.2˚F Measurement Deviation ≤±0.3˚C, ≤±0.5˚F Measurement Distance 1-2in Display 7” touchscreen Alarm Mode Sound Alarm... -
Page 28: Product Repair
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 2.3 | Product Repair The ThermoVu should be returned to Digital Ally Inc. for service. The warranty may be voided if the device is opened by any unauthorized individual. Please contact Digital Ally to obtain an authorized Return Materials Authorization (RMA). -
Page 29: Disclaimer
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 2.5 | Disclaimer This manual is intended for multiple software versions, and the illustrations and descriptions in this ⚫ manual may be different from the actual GUI and functions of the software. -
Page 30: Safety
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 2.6 | Safety The device must be installed, serviced, and maintained by a trained professional with necessary safety knowledge and skills. Before you start using the device, please read through this guide carefully and make sure all applicable requirements are met to avoid danger and loss of property. -
Page 31: Regulatory Compliance
ThermoVu DTM-500 User Guide | 860-00320-00 Rev B 2.7 | Regulatory Compliance FCC Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
