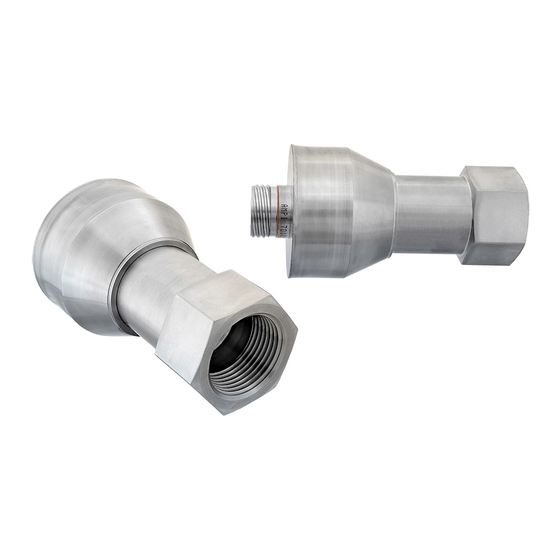

- Page 1 Flame Tracker* Lite SiC Flame Sensor Reuter-Stokes Operation and Maintenance Manual FS-9100OM Rev. B October 2020 * A trademark of Baker Hughes Holdings LLC ©2020 Baker Hughes Holdings LLC. All rights reserved. Technical content subject to change without notice.
- Page 2 FROM ANY FAILURE OF PERFORMANCE, ERROR, OMISSION, YOUR LOSS OF PROFITS, DESTRUCTION, AND ANY OTHER TANGIBLE OR INTANGIBLE LOSS. Copyright © 2020 Baker Hughes Holdings LLC. Contains Baker Hughes Holdings LLC Confidential Information. Copyright 2020 Baker Hughes Holdings LLC. All rights reserved...
- Page 3 FS-9100OM – REV B Revision History DATE ECN# AUTHOR 8/4/2020 500000374115 M. Spalding 500000375247 8/28/2020 M. Spalding 500000378953 9/30/2020 A Kebert Copyright 2020 Baker Hughes Holdings LLC. All rights reserved...
- Page 4 FS-9100OM – REV B Certification Information ATTENTION! The RS-FS-9100 Flame Tracker Lite sensor complies with the following standards: Control Number 9900287 Ex ec IIC T* Gc SPECIAL CONDITION OF USE: Transient protection shall be provided that is set at a level not exceeding 140% of the peak voltage value at the supply terminals to the equipment.
- Page 5 Do not install a sensor that has a cracked window, damaged threads, or one that has been disassembled. CAUTION The operating temperature range of the Flame Tracker Lite is -40°C to 120°C. Do not attempt to touch the Flame Tracker Lite until it has reached a safe handling temperature.
-
Page 6: Table Of Contents
2.2 ELECTRICAL..............................4 2.3 CONNECTOR PINOUT ............................7 2.4 SENSOR CHECKOUT ............................7 2.5 CONTROLLER SETUP ............................7 MAINTENANCE ..............................7 3.1 WARNING ................................7 3.2 CAUTION ................................7 TROUBLESHOOTING ............................8 4.1 WARNING ................................8 4.2 CAUTION ................................8 Copyright 2020 Baker Hughes Holdings LLC. All rights reserved... -
Page 7: Introduction
< 100 milliseconds Power Requirements: 12 - 30 vdc @ > 100 mA Temperature Range (ambient): -40F to 248F (-40C to 120C) Relative Humidity 100% Non-Condensing Process Pressure 100 psig (0.7 Mpa) Copyright 2020 Baker Hughes Holdings LLC. All rights reserved... -
Page 8: Interconnecting Cable Rs-E2-0285Pxxx Or 362A1053Pxxx
Jacket Extruded PFA Armor Stainless steel braid Connector MIL-C-38999 series III, shell size 15, 5 #16 pins (only 3 pins are used) Operating Voltage (max) 300 vrms Temperature (max) 482F (250C) Copyright 2020 Baker Hughes Holdings LLC. All rights reserved... -
Page 9: Reference
FS-9100OM – REV B 1.2 REFERENCE Copyright 2020 Baker Hughes Holdings LLC. All rights reserved... -
Page 10: General Description
2.1 MECHANICAL Mount the Flame Tracker Lite on a sight tube with 1” NPT male threads. Ensure that the sight tube has an unobstructed view of the flame. The sight tube should be adjusted to maximize the view of the flame. The line of sight for the sensor should be at a shallow angle to the burner center line and should pass through the primary combustion zone of the flame. - Page 11 Local ground if present. Do no Run in grounded conduit connect outside ground potential of fired equipment +Vdc Signal = I X R sense sense -Vdc Shield GND FIGURE 1 - FLAME SENSOR WIRING DIAGRAM Copyright 2020 Baker Hughes Holdings LLC. All rights reserved...
- Page 12 FS-9100OM – REV B The Flame Tracker Lite is connected to the control system as a typical two wire current transmitter. It can be operated from any well-filtered dc supply from 12 volts to 30 volts. The supply should be capable of supplying 100 milliamps.
-
Page 13: Connector Pinout
2.4 SENSOR CHECKOUT A UV light source in the range of 200-400 nm is required to test the Flame Tracker Lite. Many LED flashlights do not emit UV light. Incandescent flashlights will work. A good solution is a light that is specifically made to emit UV light, such as the Streamlight Stylus UV pen light, manufacturer part number 65069. -
Page 14: Troubleshooting
Misalignment of the sight tube Check the squareness of all flanges operation and pipes of the sensor mount. Verify that the sensors have a clear view of the primary combustion zone of the flame. Copyright 2020 Baker Hughes Holdings LLC. All rights reserved...
