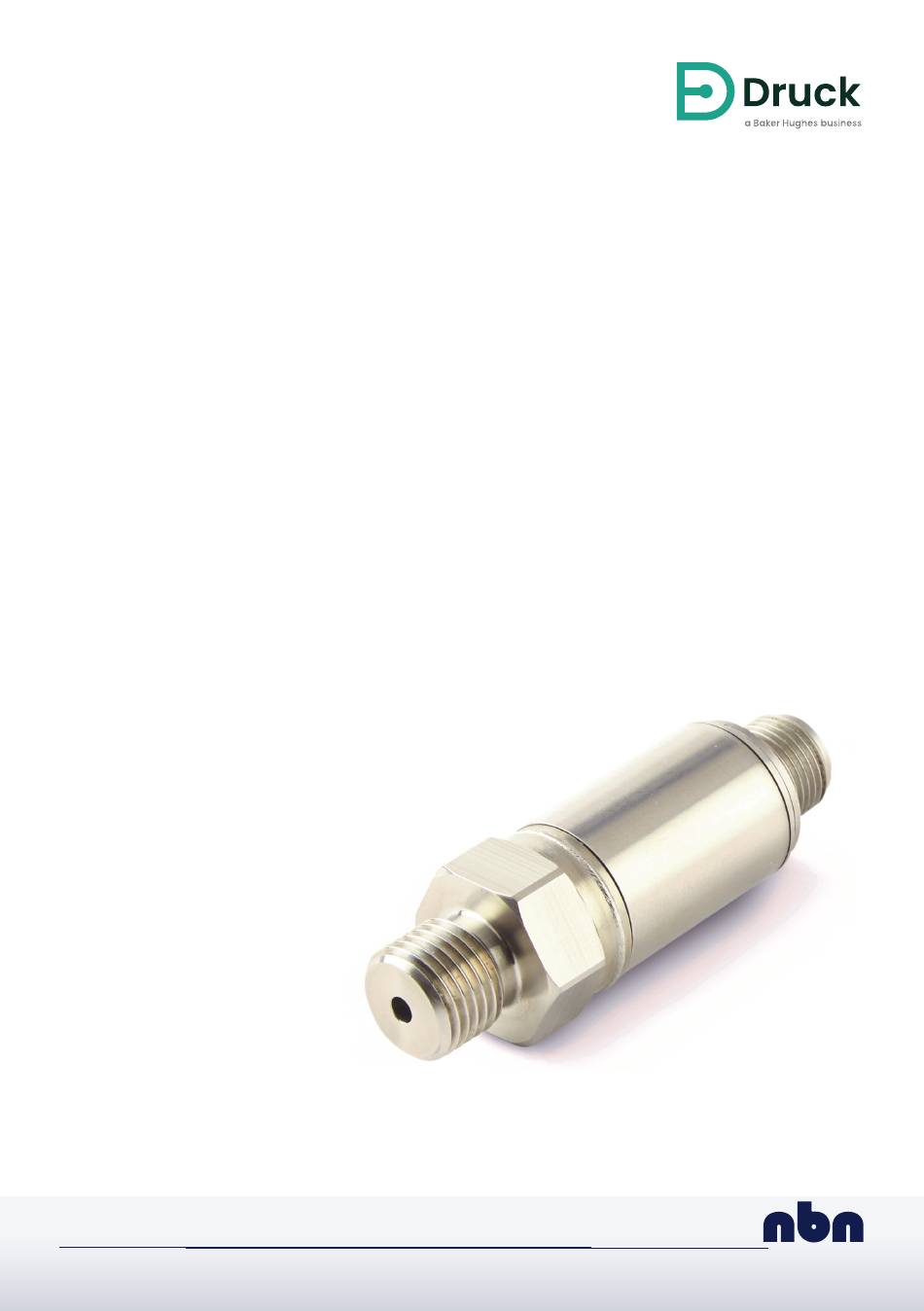

- Page 1 ADROIT6000 Pressure Sensor Instruction Manual Druck.com nbn Austria GmbH...
-
Page 3: Technical Specification
Model numbers appended with a eight-digit alphanumeric string denote the use of a customer- specific specification drawing indicating the use of additions or deviations to the data sheet specification. Refer to the specification drawing if applicable. Copyright 2020 Baker Hughes Company. English–ADROIT6000 Instruction Manual | 1... -
Page 4: General Requirements
For both gaseous and liquid media operating at low temperatures it is necessary to exclude crystallization or freezing components of the media from the working chambers and connecting pipelines. Copyright 2020 Baker Hughes Company. 2 | ADROIT6000 Instruction Manual–English... -
Page 5: Safety Measures
The metrological characteristics of the sensor correspond to the declared values during the inter- testing interval as long as the consumer observes the storage, transportation and operation rules specified in this manual. Copyright 2020 Baker Hughes Company. English–ADROIT6000 Instruction Manual | 3... -
Page 6: Storage And Transport
Section 3.7. To adjust the sensor connect the sensor as detailed below. +ve Supply PC or Android™ Signal (Voltage only) N/C Phone running ADROIT-Interface ADROIT6### ADROIT6000 App -ve Supply Copyright 2020 Baker Hughes Company. 4 | ADROIT6000 Instruction Manual–English... - Page 7 Once the sensor is connected as shown, follow the on-screen instructions to adjust the ADROIT6###. Please note that you will only be able to recalibrate up to 5 % of the span from the original settings of the sensor. Copyright 2020 Baker Hughes Company. English–ADROIT6000 Instruction Manual | 5...
-
Page 8: Key Documents
A calibration certificate will have been shipped with your ADROIT6### pressure sensor. The calibration certificate is printed exclusively in English. Please find attached a translated shell of the calibration certificate. Copyright 2020 Baker Hughes Company. 6 | ADROIT6000 Instruction Manual–English... - Page 9 Calibration data collected at a supply voltage of 15 V in a vertical orientation. The ADROIT6000 can be adjusted using the ADROIT6000 Interface and software. See www.Druck.com or Google Play Store for software download. PS1628 V1.0.0 Copyright 2020 Baker Hughes Company. English–ADROIT6000 Instruction Manual | 7...
- Page 10 Copyright 2020 Baker Hughes Company. 8 | ADROIT6000 Instruction Manual–English...
- Page 11 Copyright 2020 Baker Hughes Company. English–ADROIT6000 Instruction Manual | 9...
-
Page 12: Office Locations
Copyright 2020 Baker Hughes Company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third- party product and company names are trademarks of their respective holders. bakerhughes.com 151M7273 Revision - | English Aufgrund laufender Weiterentwicklungen sind Änderungen der Spezifikationen vorbehalten.
