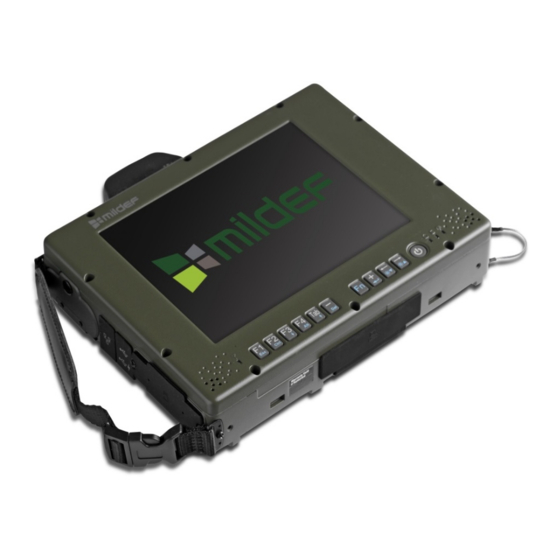

MilDef Crete DR13 User Manual

Hide thumbs Also See for DR13:
Table of Contents

Advertisement

Quick Links

Download this manual
○
BC
TABLET COMPUTER
DR13
USER'S GUIDE
(Preliminary Version)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR13 and is the answer not in the manual?

Questions and answers

Related Manuals for MilDef Crete DR13

Summary of Contents for MilDef Crete DR13

  • Page 1 ○ TABLET COMPUTER DR13 USER’S GUIDE (Preliminary Version)
  • Page 2 No part of this publication may be reproduced and modified without the written permission of MilDef Crete Inc. MilDef Crete Inc. reserves the right to make changes in the products or the product specifications without any prior notice. Customers are advised to contact MilDef Crete Inc.
  • Page 3 Radiation Exposure Statement This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
  • Page 4 FCC (Federal Communications Commission) regulatory compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 CE Declaration of Conformity It is confirmed to comply with the requirements set out in the Council Directive on the approximation of the laws of the member states relating to Electromagnetic Compatibility (2004/108/EC), Low-voltage Directive (2006/95/EC), Amendment Directive (93/68/EEC), and the procedures given in European Council Directive (99/5/EC and 2004/108/EC ).
  • Page 6 Power Conservation This tablet computer consumes less power compared to conventional consumer computers. The power consumption may be further reduced by properly configuring the Power Management Setup. It is recommended that the power saving features be enabled even when not running on battery power.
  • Page 7 Battery Preservation Precaution  Only use batteries designed for this computer. Using incompatible battery types may cause explosion, leakage or damage to the computer.  Do not store your battery in high moisture condition, low temperature or high temperature. Proper storage temperature is 5~20°C and capacity is suggested to remain 50%.
  • Page 8 short time. Battery protection If a battery keeps being charged with high voltage, the cell would age faster. To prevent this, once the battery is charged to 100%, the system will not keep charging it and the capacity might decrease and remain between 90~100%. Notice: For safety, recharging will stop if the internal temperature of the battery is out of range(<0°C;...
  • Page 9 Environmental Information, Material Safety & Recycling All materials used in the manufacturing of this equipment are recyclable or environmentally friendly. Please recycle the packing materials in accordance with local regulations at the end of the product's service life. Notice:  The equipment may contain insignificant amount of hazardous substances for health and environment below control level.

  • Page 10: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 - GETTING STARTED .............. 1 ........................1 NPACKING ....................2 PPEARANCE VERVIEW CHAPTER2 - OPERATING INFORMATION ..........6 ................. 6 TART SING ABLET OMPUTER ................7 SING ABLET OMPUTER ..................8 NSTALLING PERATING YSTEM ..................8 SING NDICATORS AND EYPAD...
  • Page 11 ........................30 TORAGE ........................31 UDIO I/O P ........................31 ORTS ......................... 32 .................... 32 IMENSIONS AND EIGHT ........................32 OWER ......................32 ERTIFICATION & S ................ 33 PERATING TORAGE EMPERATURE ..................33 ATERIALS AND ECYCLING CHAPTER 7 – OPTIONAL DEVICES ............34 ......................

  • Page 12: Chapter 1 - Getting Started

    Getting Started Chapter 1 - Getting Started Unpacking The following components come with your computer. If anything is missing or damaged, please notify the dealer immediately.  Tablet omputer unit  AC Adapter  Quick Guide Chapter One - 1...

  • Page 13: Appearance Overview

    Getting Started Appearance Overview Front Touch Screen Optional Wi-Fi/Bluetooth Antenna LED Indicators Function Keys Icon Function ↓ ↑ Ctrl Icon ← → Function Function Brightness Brightness Lock Enter Down Note:  To prevent wrongly trigger, do not press any function buttons when using keyboard.
  • Page 14 Getting Started Rear 1. 2nd Battery Connector Left 2. Battery Slot 3. GLAN x 1 4. USB 3.1 Type A x 2 5. SD Card Slot x1 6. SIM Card Slot x1 7. Express Card Slot x1 Chapter One - 3...
  • Page 15 Getting Started Right 1. DC-In x 1 2. COM x 1 1. SSD slot 2. Optional GPS Antenna 3. Optional Wi-Fi Antenna Chapter One - 4...
  • Page 16 Getting Started Bottom 1. Docket Port (120 pin) Chapter One - 5...

  • Page 17: Chapter2 - Operating Information

    Operating Information Chapter2 - Operating Information Start Using Your Tablet Computer Always turn on your tablet computer by using the power button. Press the power button about 2 seconds and the tablet will boot up. This is the standard operating procedure to start using your tablet computer.

  • Page 18: Stop Using Your Tablet Computer

    Operating Information Stop Using Your Tablet Computer Each time when you finish working with your tablet computer, there are several ways to stop your tablet computer from operating. Shut down Directly click “Shut down” from your OS to turn OFF the power of your computer. Before shutting down, please do remember to save unfinished works and close your applications to prevent your SSD from suffering possible data loss or damage.

  • Page 19: Installing Operating System

    Operating Information Installing Operating System Your computer is designed to operate with Microsoft Windows 10 / 64-bit Operating System. Please connect your computer with an external USB-interface drive to start the OS installation. Note:  A USB hub may be required during installation to connect with an external USB-interface ODD, as the System USB port may not supply enough power.

  • Page 20: System Manager

    Operating Information Input Lock key To prevent from unexpected input by buttons and touch screen, you can press Input Lock key. When Input Lock function is on, the input from devices including buttons and touch screen will be locked. To cancel the input lock function, just press the Input Lock key again and the indicator will be turned off.
  • Page 21 Operating Information 2. Battery information: 3. RF Device control panel: Chapter Two - 10...
  • Page 22 Operating Information 4. Function key control panel. Available Function Items List None Open/ Execute a selected file Open URL in default browser Change display output Brightness up Brightness down Volume up Volume down Volume mute Launch on-screen keyboard Launch Windows Mobility Center Launch File Explorer Note: ...

  • Page 23: Chapter3- Managing Power

    Managing Power Chapter3- Managing Power AC Adapter The AC adapter performs two functions: It powers the computer from an external AC source. It charges the computer battery. The adapter automatically detects the AC line voltage (110V or 220V) and adjusts accordingly.

  • Page 24: Battery

    Managing Power Battery The computer will automatically switch to battery when the external power source (AC adapter or optional vehicle adapter) is disconnected. Battery Power Saving Tips The computer comes with an intelligent power-saving feature. You may extend the battery life by: Setup power saving functions in Operating System Power Management options (e.g.
  • Page 25 Managing Power Battery Level You may check battery status from Operating System. In Windows, you can click the power/battery icon to reveal the battery gauge window. The following is the illustration of Battery Gauge in Windows OS. Note:  Battery characteristic varies depending on factors such as ambient temperature, charging method, load current, aging, etc.

  • Page 26: Battery Recalibration

    Managing Power Battery Recalibration Battery recalibration allows users to maintain the battery in a healthy condition. To perform battery recalibration, please follow the steps as below: 1. Update BIOS & EC to the latest version. 2. Insert the battery to the computer, and connect it to AC adapter. 3.

  • Page 27: Acpi Support

    Managing Power ACPI Support Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. With ACPI and an ACPI-compliant operating system (such as Microsoft Windows), this feature will allow you to reduce the power consumption and conserve energy. By supporting ACPI, the AC adapter LED and the Power indicator LED will show in different ways.

  • Page 28: Chapter 4 - Bios Setup

    Optional Devices BIOS Setup Chapter 4 - BIOS Setup Press [F2] at boot up to enter BIOS setup. Use arrow keys to select options and [+/-] to modify them. When finished, move to “Exit” and press [Enter] then confirm save by pressing [Y].

  • Page 29: Advanced Menu

    Optional Devices BIOS Setup Advanced Menu Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Configure Gigabit Ethernet device parameters ► PCH-FW Configuration ► Platform Settings ► Realtek PCIe GBE Family Controller(MAC:_____) ► Intel® Ethernet Connection I219-LM-(MAC:_____) →← : Select Screen ►...

  • Page 30: Pch-Fw Configuration Sub-Menu

    Optional Devices BIOS Setup Feature Options Description Network Stack Disabled Enable / Disable UEFI Network Stack Configuration Enabled Disabled Enable / Disable CSM support Configuration Enabled PCH-FW Configuration Sub-Menu Aptio Setup Utility Advanced Configure Management ME FW Version Engine Technology ME Firmware Mode Parameters ME Firmware Type...
  • Page 31 Optional Devices BIOS Setup Realtek PCIe GBE Family Controller Aptio Setup Utility Advanced Driver Information Driver Name: Driver version: Driver Released Date: →← : Select Screen Device Information ↑↓: Select Item Device Name: Enter: Select –/+: Change Opt. PCI Slot: F1: General Help MAC Address: F2: Previous Values...

  • Page 32: Trusted Computing Sub-Menu

    Optional Devices BIOS Setup Trusted Computing Sub-Menu Aptio Setup Utility Advanced Enables or Disables TPM20 Device Found BIOS support Security Device Support security device. O.S. Pending operation will not show Security Device. protocol INT1A interface will not be available. →← : Select Screen ↑↓: Select Item Enter: Select...

  • Page 33: Ac In Boot Control Sub-Menu

    Optional Devices BIOS Setup AC In Boot Control Sub-Menu Aptio Setup Utility Advanced AC In Boot Setting AC In Boot AC In Boot Control [Disabled] USB CHARGE Control Sub-Menu Aptio Setup Utility Advanced USB CHARGE Setting USB CHARGE USB CHARGE Control [Disabled] →←...

  • Page 34: Battery Recalibration Sub-Menu

    Optional Devices BIOS Setup Battery Recalibration Sub-Menu Aptio Setup Utility Advanced Start Battery recalibration function Battery Recalibration Utility *For Main Battery Only! Calibration Frequency Battery Capacity Battery Charge Mode Battery Learning Mode →← : Select Screen ↑↓: Select Item Note: For Primary battery (left hand side) only, while the Enter: Select Utility is executing, please remove secondary battery (right –/+: Change Opt.

  • Page 35: Network Stack Configuration Sub-Menu

    Optional Devices BIOS Setup Network Stack Configuration Sub-Menu Aptio Setup Utility Advanced Enable/Disable UEFI Network Stack [Disabled] Network Stack →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...

  • Page 36: Chipset Menu

    Optional Devices BIOS Setup Chipset Menu Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit PCH Parameters ► PCH-IO Configuration →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...

  • Page 37: Security Menu

    Optional Devices BIOS Setup Security Menu Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Administrator Password Description Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.
  • Page 38 Optional Devices BIOS Setup Setting Password Once you set HDD passwords successfully, you must enter user password to boot in the future. The master password provides an alternative entry in case the user password is lost. Clearing the master password in BIOS setup will also clear the current user password. Master password is used as a backup key, it’s better not to be changed frequently.

  • Page 39: Boot Menu

    Optional Devices BIOS Setup Boot Menu Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Set the system boot order. Boot Option Priorities Boot Option #1 [Windows Boot Manager (P1: XXXXXXXX) ] →← : Select Screen ↑↓: Select Item Enter: Select –/+: Change Opt.

  • Page 40: Chapter 5 - Drivers And Applications

    Optional Devices Drivers and Applications Chapter 5 – Drivers and Applications The Utility DVD includes all the drivers for the devices installed in your tablet computer. Please consult your dealer if there are any driver missing. Also, you could update the driver or check if there any driver need to be installed by "Windows device manager".

  • Page 41: Chapter 6 - Specifications

    Specifications Chapter 6 – Specifications Platform Intel® Kaby Lake-U Platform Intel® 7th Generation Dual Core™ i7-7600U Processor (4M Cache, up to 3.60 GHz) Memory 16GB System Memory Industrial grade DDR4 2133MHz Touch Screen • Type: 8.4” XGA • Resolution: 1024 x 768 pixels •...

  • Page 42: Audio

    Specifications Audio  HD Audio and mono Speakers  Embedded Digital Mic I/O Ports Left:  GLAN*1  USB3.1 Gen. 1 Type A *2  Multi Bay -Express Card Slot*1 -SIM Card Slot*1 -SD Card Slot*1 Right:  DB9*1 Bottom: ...

  • Page 43: Case

    Specifications Case  Magnesium  Color: Black, NATO Green Dimensions and Weight  Dimensions (mm): 250 (L) x 190(W) x 45.2(H) (w/ bumper)  Weight: 2.3kg (With battery) Note:  Weight varies depending on system configurations. Power  Primary Battery: Type: 6 x 18650 cells Lithium Ion Capacity:...

  • Page 44: Operating & Storage Temperature

    Specifications CE, FCC, WEEE, REACH, RoHS, IP65, MIL-STD-810G, MIL-STD-461G, Optional GA Operating & Storage Temperature Operating Temp.: Std: -20 °C ~ +50 °C Optional: -30 °C ~ +50 °C *Battery Mode at least -10°C Storage Temp.: -40 °C ~ +70 °C Materials and Recycling Materials of the computer are as follows: Magnesium case:...

  • Page 45: Chapter 7 - Optional Devices

    Optional Devices Chapter 7 – Optional Devices Communication  WiFi/Bluetooth: Intel Dual Band wireless- AC 9260 Board Form Factor: M.2 2230 E-key Card Wi-Fi Certified: 802.11 a/b/g/n/ac Bluetooth: Supports BT 5.0 Interface: PCIe (WiFi)/USB (BT)  GPS: U-blox M8N (USB interface) Security BIOS password and Kensington cable lock slot are available to safely secure your computer.

  • Page 46: Multi-Battery Charger Mcdr

    Optional Devices Multi-Battery Charger MCDR MCDR provides four slots(Primary*2; Secondary*2), each slot works independently. It takes 4~5 hours to charge a primary battery while charging a secondary battery takes 6~7 hours. The operating temperature ranges from 0 to 45℃. Chapter Seven - 35...

  • Page 47: Chapter 8 - Maintenance And Service

    Chapter 8 – Maintenance and Service Cleaning ALWAYS turn OFF the power, unplug the power cord and remove the battery before cleaning. The exterior of the system and display may be wiped with a clean, soft, and lint-free cloth. If there is difficulty removing dirt, apply non-ammonia, non-alcohol based glass cleaner to the cloth and wipe.

  • Page 48: Rma Service

    RMA Service If troubleshooting solutions are unsuccessful, consult your dealer for RMA. Shipping instructions: 1. Remove any personal add-on devices or other media. 2. Use the original shipping container and packing materials, if possible. 3. If the original packing materials are not available, wrap the equipment with soft material (e.g.
