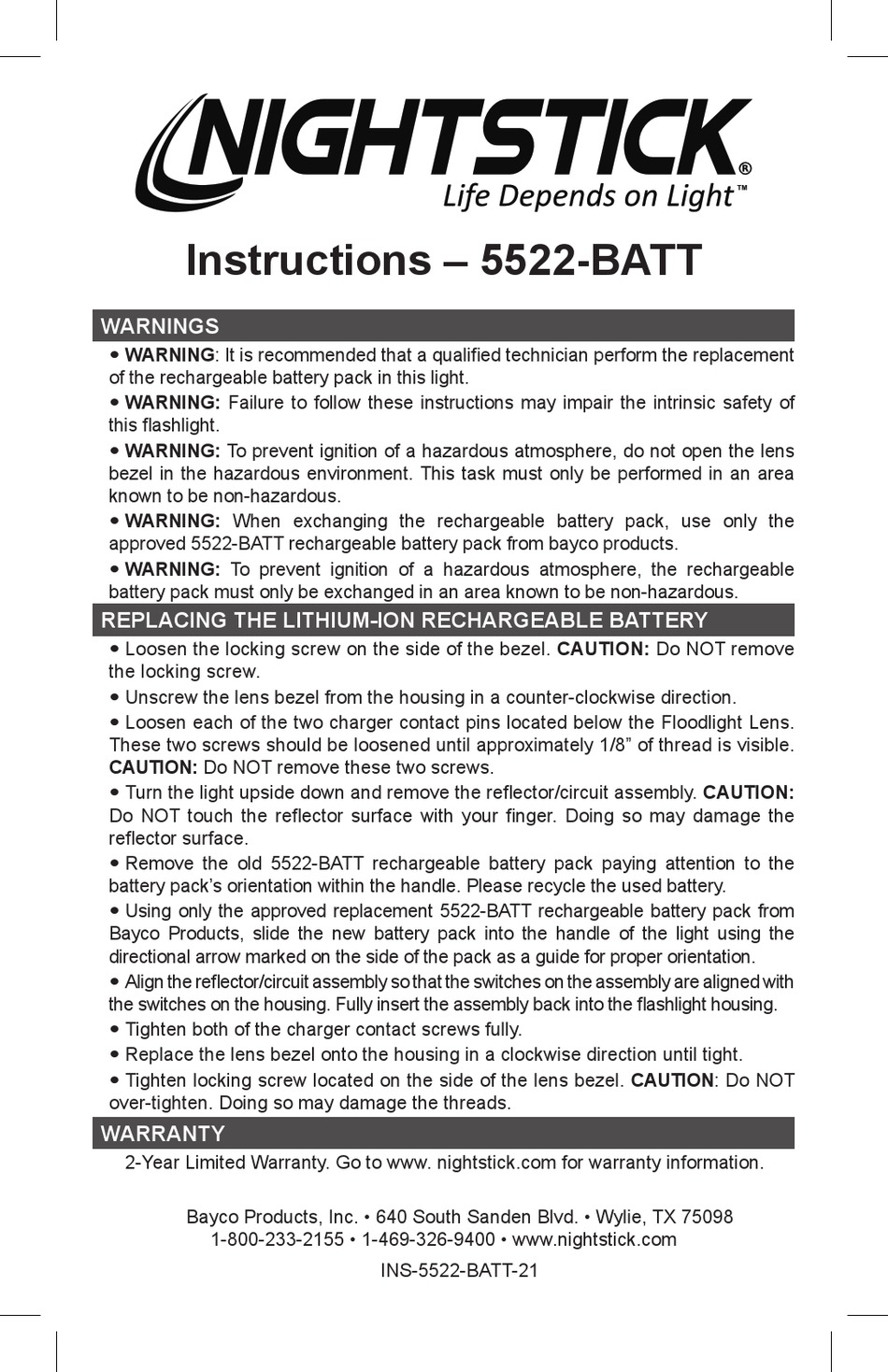

Instructions – 5522-BATT
WARNINGS
y WARNING: It is recommended that a qualified technician perform the replacement
of the rechargeable battery pack in this light.
y WARNING: Failure to follow these instructions may impair the intrinsic safety of
this flashlight.
y WARNING: To prevent ignition of a hazardous atmosphere, do not open the lens
bezel in the hazardous environment. This task must only be performed in an area
known to be non-hazardous.
y WARNING: When exchanging the rechargeable battery pack, use only the
approved 5522-BATT rechargeable battery pack from bayco products.
y WARNING: To prevent ignition of a hazardous atmosphere, the rechargeable
battery pack must only be exchanged in an area known to be non-hazardous.
REPLACING THE LITHIUM-ION RECHARGEABLE BATTERY

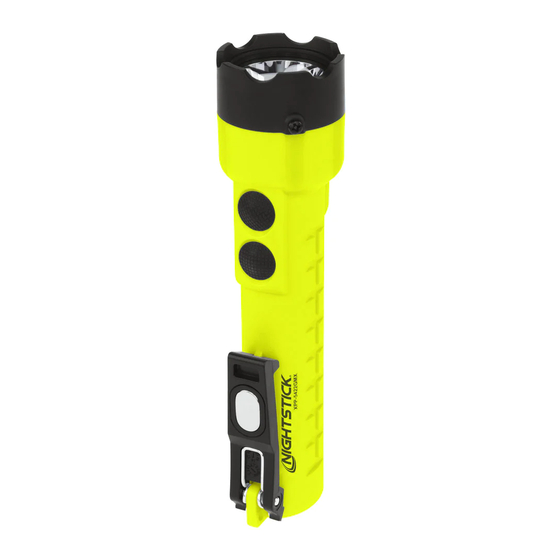

y Loosen the locking screw on the side of the bezel. CAUTION: Do NOT remove
the locking screw.
y Unscrew the lens bezel from the housing in a counter-clockwise direction.
y Loosen each of the two charger contact pins located below the Floodlight Lens.
These two screws should be loosened until approximately 1/8" of thread is visible.
CAUTION: Do NOT remove these two screws.
y Turn the light upside down and remove the reflector/circuit assembly. CAUTION:
Do NOT touch the reflector surface with your finger. Doing so may damage the
reflector surface.
y Remove the old 5522-BATT rechargeable battery pack paying attention to the
battery pack's orientation within the handle. Please recycle the used battery.
y Using only the approved replacement 5522-BATT rechargeable battery pack from
Bayco Products, slide the new battery pack into the handle of the light using the
directional arrow marked on the side of the pack as a guide for proper orientation.
y Align the reflector/circuit assembly so that the switches on the assembly are aligned with
the switches on the housing. Fully insert the assembly back into the flashlight housing.
y Tighten both of the charger contact screws fully.
y Replace the lens bezel onto the housing in a clockwise direction until tight.
y Tighten locking screw located on the side of the lens bezel. CAUTION: Do NOT
over-tighten. Doing so may damage the threads.
WARRANTY
2-Year Limited Warranty. Go to www. nightstick.com for warranty information.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098
1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
INS-5522-BATT-21
