Owner's Manual — Humiport 10/20
The Phoenix Humiport line of ThermoHygrometers offers
the restoration professional the optimum balance between
cost, accuracy and response time.
The Phoenix Humiport 10 and 20 feature 2 point
calibration and offer 2% accuracy for relative humidity and
have the largest display in the industry. They also include
a backlit display option and auto-off feature. The Phoenix
Humiport 20 has a detachable probe with a coiled cord
that extends over four feet to eliminate problems reaching
difficult areas or reading the meter display when the probe
is recording areas over your head or near the floor.
Each Humiport Meter offers a large display for easy
reading, and all of the important restoration information
including, temperature (either F or C), relative humidity (%),
dew point (F or C) and the popular "grains per lb" mixing
ratio. There is even an "altitude" input that makes sure
the grains calculation is extremely accurate. A listing of
altitudes by state and (some) cities is available at www.
usephoenix.com, so you can set the meter to your specific
area.
The Phoenix Humiport meters record conditions, calculate
data and can display: MIN (minimum), MAX (maximum),
AVG (average) and HOLD. The Phoenix Humiport 05 offers
3% accuracy for relative humidity between 5% – 95% and a
temperature range of -4 to 122 degrees Fahrenheit.
The Phoenix Humiport 10/20
• Fast response
• Accurate +/- 2% RH
• Grains/lb display
• Dew point
• Large display
• Min/Max/Avg. and Hold functions
• Altitude input for gpp calculation
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
1
www.UsePhoenix.com • sales@UsePhoenix.com

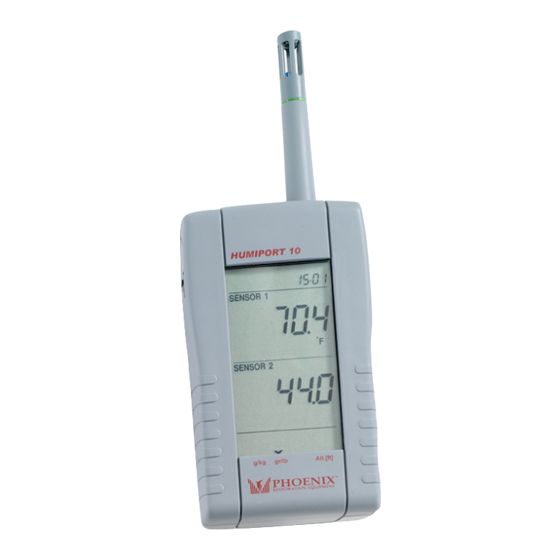

Humiport 10
Displaying
temperature and
mixing ratio in grains
per pound.
Humiport 20
TS-382
12/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Therma-Stor Humiport 10
Summary of Contents for Therma-Stor Humiport 10
- Page 1 The Phoenix Humiport 10 and 20 feature 2 point calibration and offer 2% accuracy for relative humidity and have the largest display in the industry. They also include a backlit display option and auto-off feature.
- Page 2 Dealer’s Name ___________________________________ • Rugged and easy to handle enclosure • High accuracy The Humiport 10 is equipped with a fixed probe whereas the Humiport 20 consists of a flexible probe connected to the main body through a cable. 3 The Humiport 10/20 Display Read the operation and maintenance instructions carefully before using this the Humiport 10/20.
- Page 3 4 Operation 5 Upper Menu The Humiport can be adjusted using the three-way “Thumb The following functions can be selected in the upper menu: Wheel” on the left hand side of the device. HOLD MAX MIN AVG Up and down movement of the wheel is used to navigate Hold MAX MIN AVG through different menu items on the screen.
- Page 4 Unit1: This selects display value of CAL2: This selection gives the user the possibility to adjust SENSOR 1 temperature on the upper numeric an offset for sensor 2 (rel. humidity). This is a single 20.0 display. You have a choice of °C and point calibration.
- Page 5 Alt. (ft) label on the case. calibrated to another recently calibrated humidity sensor. Move the wheel up and down to adjust the altitude. You Phoenix Restoration (Therma-Stor LLC) offers calibration can adjust the altitude with and confirm by services for all types and makes of hand held temperature and humidity monitors.
- Page 6 11 Warranty And Repair The Humiport is warranted against defects in material of workmanship for a period of one year. The warranty does not cover calibration drift, use beyond the stated specifications or mishandling resulting in damage to the unit. If you believe your Humiport has a defect in workman- ship, contact Phoenix Restoration to arrange for a replacement unit.
- Page 7 Phoenix Humiport 05/10/20 Limited Warranty Warrantor: Therma-Stor LLC 4201 Lien Rd Madison, WI 53704 Telephone: 1-800-533-7533 Phoenix Restoration (Phoenix) warrants this unit to be free of defects in materials and workmanship for a period of 12 months from date of purchase. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of being damaged as a result of excessive corrosion;...
