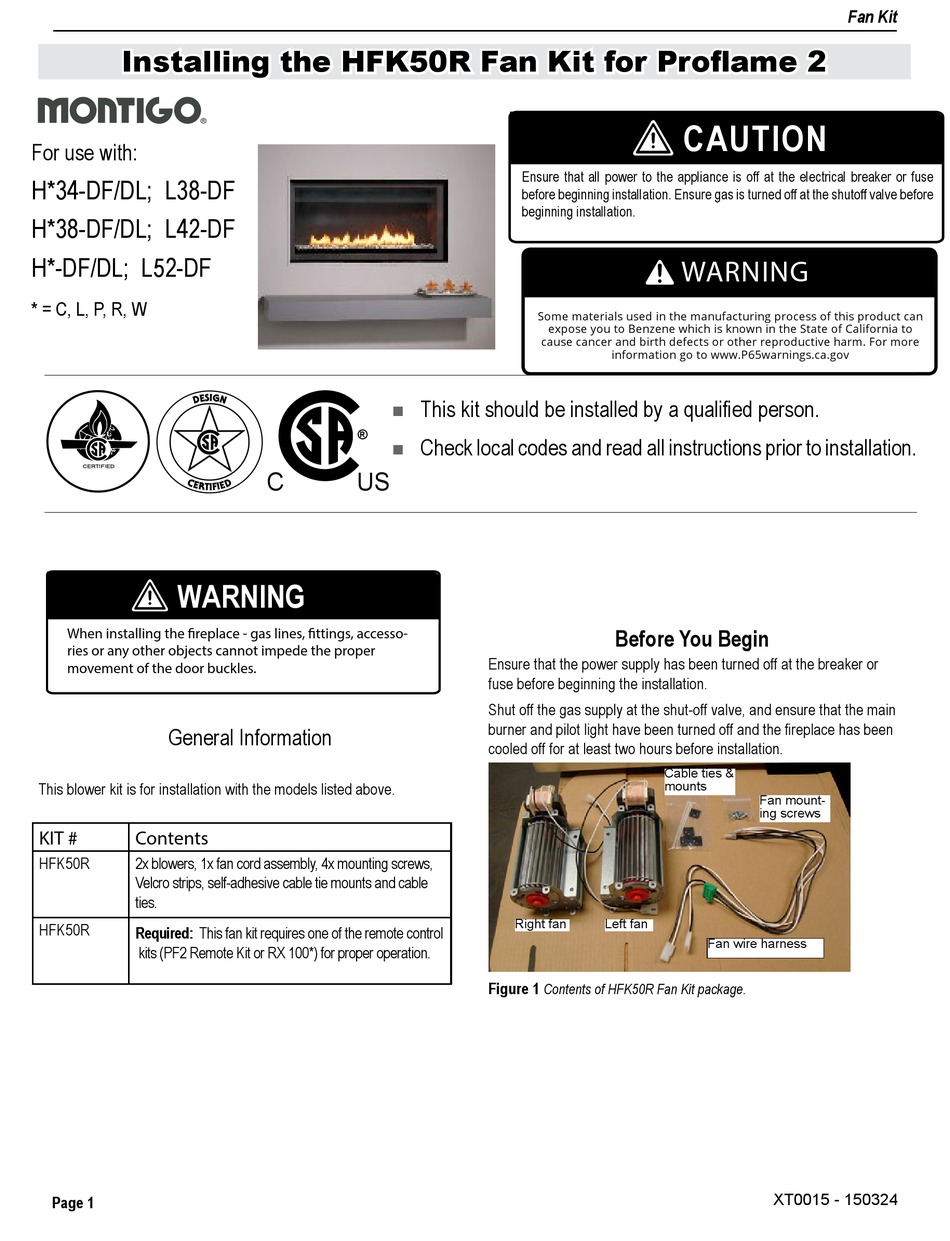

Installing the HFK50R Fan Kit for Proflame 2 Installing the HFK50R Fan Kit for Proflame 2
For use with:
H*34-DF/DL; L38-DF
H*38-DF/DL; L42-DF
H*-DF/DL; L52-DF
* = C, L, P, R, W
WARNING
When installing the replace - gas lines, ttings, accesso-
ries or any other objects cannot impede the proper
movement of the door buckles.

General Information

This blower kit is for installation with the models listed above.
KIT # Contents

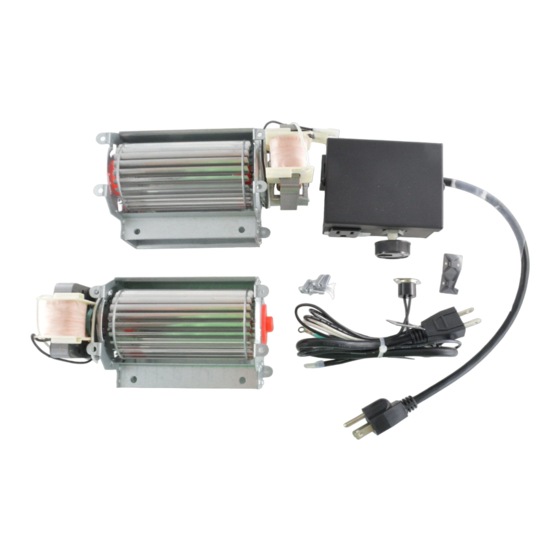

HFK50R 2x blowers, 1x fan cord assembly, 4x mounting screws,
Velcro strips, self-adhesive cable tie mounts and cable
ties.
HFK50R
Required: This fan kit requires one of the remote control
kits (PF2 Remote Kit or RX 100*) for proper operation.
Page 1
This kit should be installed by a qualified person.

®
Check local codes and read all instructions prior to installation.

C US
Ensure that all power to the appliance is off at the electrical breaker or fuse
before beginning installation. Ensure gas is turned off at the shutoff valve before
beginning installation.
Some materials used in the manufacturing process of this product can
expose you to Benzene which is known in the State of California to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov

Before You Begin

Ensure that the power supply has been turned off at the breaker or
fuse before beginning the installation.
Shut off the gas supply at the shut-off valve, and ensure that the main
burner and pilot light have been turned off and the fireplace has been
cooled off for at least two hours before installation.
Cable ties &
mounts
Right fan Left fan
Figure 1
Contents of HFK50R Fan Kit package.
Fan Kit
CAUTION
WARNING
Fan mount-
ing screws
Fan wire harness
XT0015 - 150324
