- Page 1 START GUIDE 3D MOTION PLATE swingcatalyst...
-
Page 2: Table Of Contents
Feet on the floor....................8 Connect the 3D Motion Plate...............9 Part 2: Install on computer Install drivers......................10 Part 3: In software Hardware settings....................12 Verify the data....................14 Troubleshooting....................15 Checklist.......................16 Support........................17 Start Guide 3D Motion Plate 2017 2006-2017 © Initial Force AS Swing Catalyst®... -
Page 3: Introduction

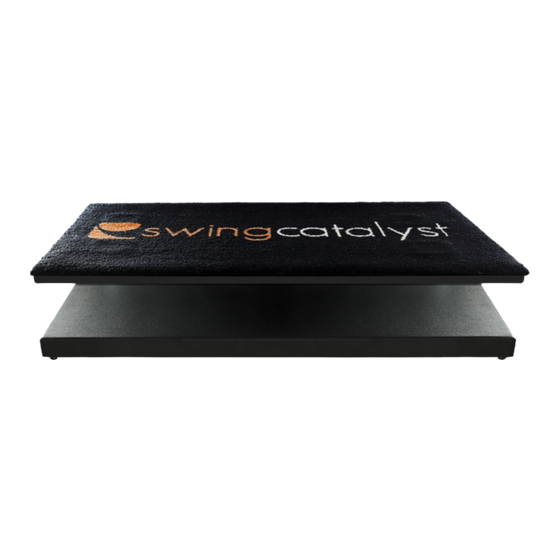

The patented Swing Catalyst 3D Motion Plate is a combination of a sophisticated force plate and pressure plate technology. Please refer to the 3D Motion Plate data guide for more detailed information about the technology and the data measurements. This guide will get you started with the installation of the 3D Motion Plate. -
Page 4: Part 1: Studio Installation Flat And Level Floor
STUDIO INSTALLATION FLAT AND LEVEL FLOOR Place the 3D Motion Plate on a flat and level floor to ensure accurate data readings. Part 1 Studio installation Part 1 Studio installation... -
Page 5: Feet On The Floor
Connect both cables to your PC. Please use the provided extension cables if necessary. All electronics connected to the 3D Motion Plate must have ground. The power grid should have adequate grounding. We recommend using surge protectors to prevent damage to your electronics. -
Page 6: Part 2 Install On Computer
Motion Plate. First locate the Balance Plate drivers on your Balance Plate drivers on Windows 7: hard drive and follow the install instructions. Balance Plate Click on the Windows Start Menu -> Swing Catalyst -> Version 2 (64x32) drivers may also be downloaded from Drivers folder: www.swingcatalyst.com/drivers... -
Page 7: Part 3 In Software
HARDWARE SETTINGS Start up the Swing Catalyst software. Verify that the sensor plate is shown as connected. Click the “Configure...” button to open the configuration Go to Settings in the Main Menu and select Hardware. dialog and select the “Stance Sensor” tab. -
Page 8: Verify The Data
Select Swing Analysis in the Main Menu, set up a new golfer and click Start session. Select Capture in the Quick Correct Start menu and step on the 3D Motion Plate. Your toes should now be pointing Important: You need to have a supported camera to be able upwards, while the white dot (CoP) to go in capture mode. -
Page 9: Checklist
All 4 feet in contact with the floor Check electrical grounding Connect both USB cabels to your PC Install the drivers Enable the 3D Motion Plate in the software Verify the data If you have any questions, please contact support: support@swingcatalyst.com Information may also be found in our Help Center: www.swingcatalyst.com/help... - Page 10 Follow Swing Catalyst to receive the latest updates: swingcatalyst...
