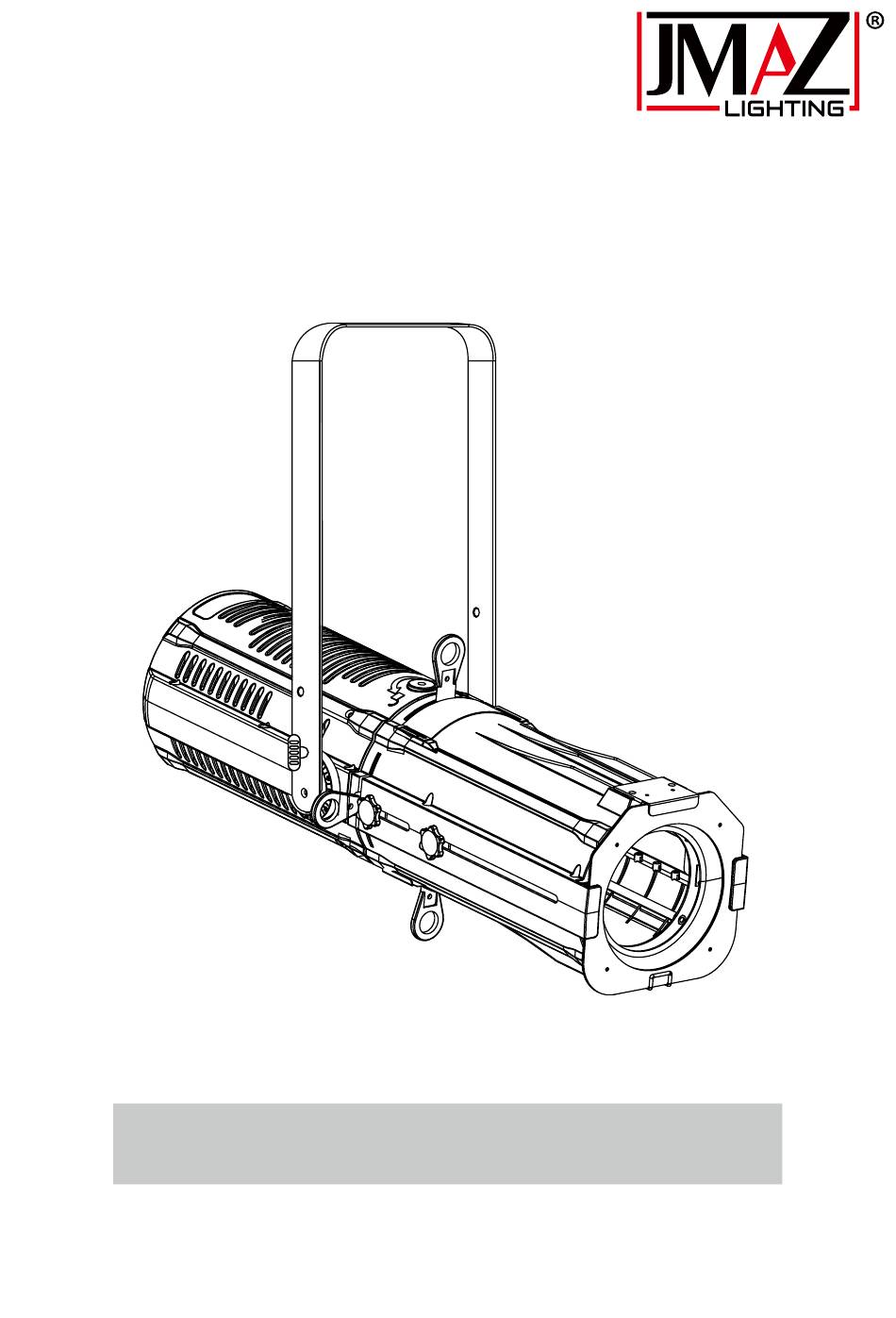

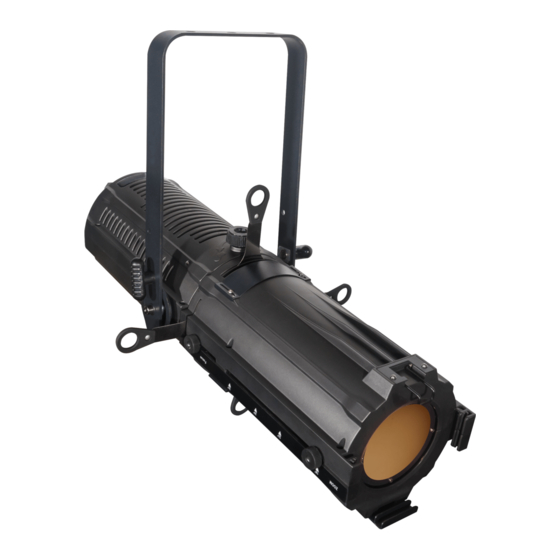

- Page 1 VISION PROFILE 300Z USER MANUAL ● Be sure to read the USER MANUAL carefully before using this product ● Be sure to keep the USER MANUAL properly for future needs ● Use this product correctly when you can fully understand the user manual...
-
Page 2: Table Of Contents
Table of contents Caution! ........................3 Introduction ......................3 Safety instructions ....................3 Overview.........................4 Installation ......................5 Read ‘Safety information’ before installing the fixture................Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ......................... DMX-512 connection/connection between fixtures ................ -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen VISION PROFILE 300Z. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation. -
Page 4: Overview
VISION PROFILE 300Z Product Datasheet or before cleaning it. Keep away children and amateurs from the device! There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. Overview Yoke... -
Page 5: Installation
VISION PROFILE 300Z Product Datasheet Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. -
Page 6: Securing With A Safety Cable
VISION PROFILE 300Z Product Datasheet Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. -
Page 7: Power Connection
Earth(Ground) Operation The VISION PROFILE 300Z zoom can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differ- ences in the operating modes. -
Page 8: Control Menu
VISION PROFILE 300Z Product Datasheet Curve 0.3-3.0 Dimmer curves adjustment Standard Dimmer mode, Standard Stage Dimmer mode, Stage Dimmer mode, TV Architecture Dimmer mode, Architecture Dimmer Mode Theatre Dimmer mode, Theatre Studio Studio power mode, silent (200W) Fade in (150 ms~2230 ms) -
Page 9: Main Menu
That means changing the settings of one channel will affect only the selected fixture. In the case of the VISION PROFILE 300Z zoom, which is 1/2/3 channels fixture. If you set, for example, jmazlighting.com... -
Page 10: Universal Dmx Control
Dimmer Advance Rotary Knob function The knob in the rear panel of the VISION PROFILE 300Z act as multi function. Including rotary control of dimmer, up/down/enter function function. Dimmer & strobe function: 1. Press the MENU button to enter the main menu. -
Page 11: Set Dimmer Curves
VISION PROFILE 300Z Product Datasheet 3. Press DOWN menu and select Manual sub menu. 4. Press ENTER and select Brightness or Strobe in third menu. 5. Rotate the rotary knob to control the dimmer(right stop = maximum output, left stop = zero output), or strobe(right stop = maximum strobe, left stop = no strobe). -
Page 12: Zoom
VISION PROFILE 300Z Product Datasheet 4. Select disired dimmer mode. Custom dimmer curves: 1. Press the MENU button to enter the main menu. 2. Press the UP or DOWN button to select Dimmer menu and press ENTER. 3. Press DOWN menu and select Mode sub menu. -
Page 13: Fixture Cleaning
VISION PROFILE 300Z Product Datasheet 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Dimmer fine 000-255: 16 bit dimmer Strobe 000-255: Strobe with speed increasing... -
Page 14: Technical Specifications
VISION PROFILE 300Z Product Datasheet Technical specifications Model VISION PROFILE 300Z Power supply: AC100-240V, 50/60Hz Light source: 300W COB LED Color temperature: 3200K / 5600K optional Color Rendition: CRI 97, R9≥90, TLCI 98(3200K), TLCI 96(5600k) Zoom scale: 18°-38° manually Power connection: PowerCON in &... - Page 15 VISION PROFILE 300Z Product Datasheet jmazlighting.com Ver 1.4...
