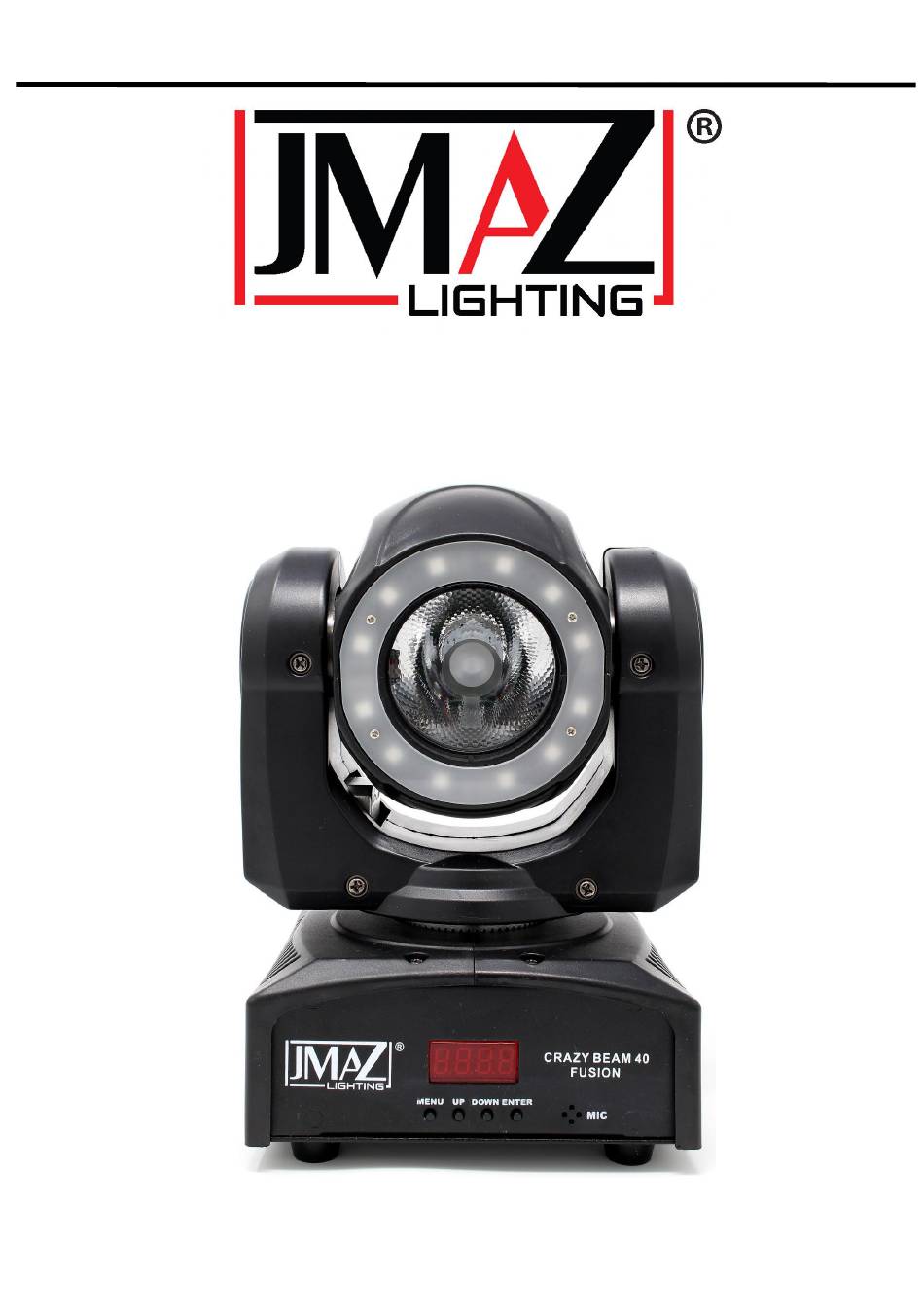

- Page 1 User Manual CRAZY BEAM 40 FUSION WWW.JMAZLIGHTING.COM...
- Page 2 Congratulations to the purchase of this light. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock.
-
Page 3: Unpacking Instruction
UNPACKING INSTRUCTION CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. -
Page 4: Operation
Operation: Menu display Instruction Menu Sub Menu Function Addr DMX address DMX Address (1-512) 16/21 CH setting DMX channerl model Chnd Channel mode Slnd Mast Master-setting SL1/SL2 Slave 1/ Slave 2 setting D512 When no DMX signal is received,no function:Blackout Show 1--4 internal programs Shnd Show model... - Page 5 000-255 Blue LED Dimmer0%~ 100% 000-255 White LED Dimmer0%~ 100% 000-255 5050 SMD Dimmer0%~ 100% 000-008 No function 009-255 5050 SMD Strobe with increasing speed 000-010 No Function SMD Section 1 011-044 045-079 Green 080-114 Blue 115-149 Red and Green 150-184 Red and Blue 185-219...
- Page 6 150-184 Red and Blue 185-219 Green and Blue 220-255 000-199 No function 200-209 Reset 210-239 No function 240-255 Sound Active 21 Channel: Channel DMX Value Function 000-255 Pan 0° ~ 540° 000-255 Pan Fine 000-255 Tilt 0° ~ 210° 000-255 Tilt Fine Pan&Tilt Speed with increasing speed 000-255...
- Page 7 150-184 Red and Blue 185-219 Green and Blue 220-255 000-010 No Function 011-044 5050 SMD section 2 Red 045-079 5050 SMD section 2 Green 080-114 5050 SMD section 2 Blue SMD Section2 115-149 5050 SMD section 2 Red mix Green 150-184 5050 SMD section 2 Red mix Blue 185-219...
-
Page 8: Technical Specifications
SOUND OFF: Sound mode off Customer Service The JMAZ Lighting Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact JMAZ lighting Customer Service representative via email support@jmazlighting.com or call us at (626) 380-0883.
