This product must be installed by a licensed electrician
1
Specifications
Cat No
Detection Method
Supply Voltage
Terminal Wiring Size
Standby Power
Detection / View Angle
Detection Range (ceiling height 4m)
Recommended Mounting Height
Lux Adjustment Range
Time Adjustment Range
Switching Function
IP Rating
Ceiling Cutout Size
Fascia Size
Depth into Ceiling
Weight
Colour
Cat No
Incandescent
Fluorescent
Compact Fluorescent Lamp (CFL)
LED
Fig. 1
630R01WE
Passive Infrared (PIR)
230-240V a.c. 50Hz
1 x 2.5mm
to 2 x 1.5mm
2
< 1.0W
360°
Ø6m (at ≤ 24°C)
2.2m to 4.0m
3 lux to 2000 lux
10 ± 3 sec to 15 ± 2 min
Auto Mode only
IP20
Ø40mm
Ø50mm
50mm
56g
White
630R01WE
800W
400VA
300VA
300VA
Max:3m

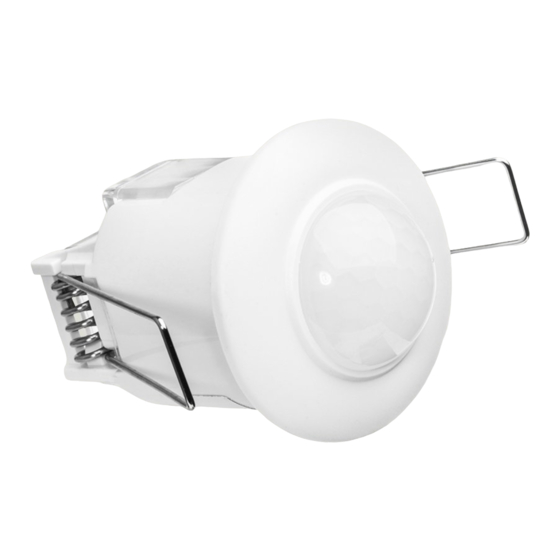

PIR Movement Sensors
Instruction Manual
Cat. 630R01WE, 630R01BL
630R01BL
2
Black
630R01BL
360˚
Max:3m
Fig. 1
Advertisement
Related Manuals for LEGRAND HPM 630R01WE
Summary of Contents for LEGRAND HPM 630R01WE

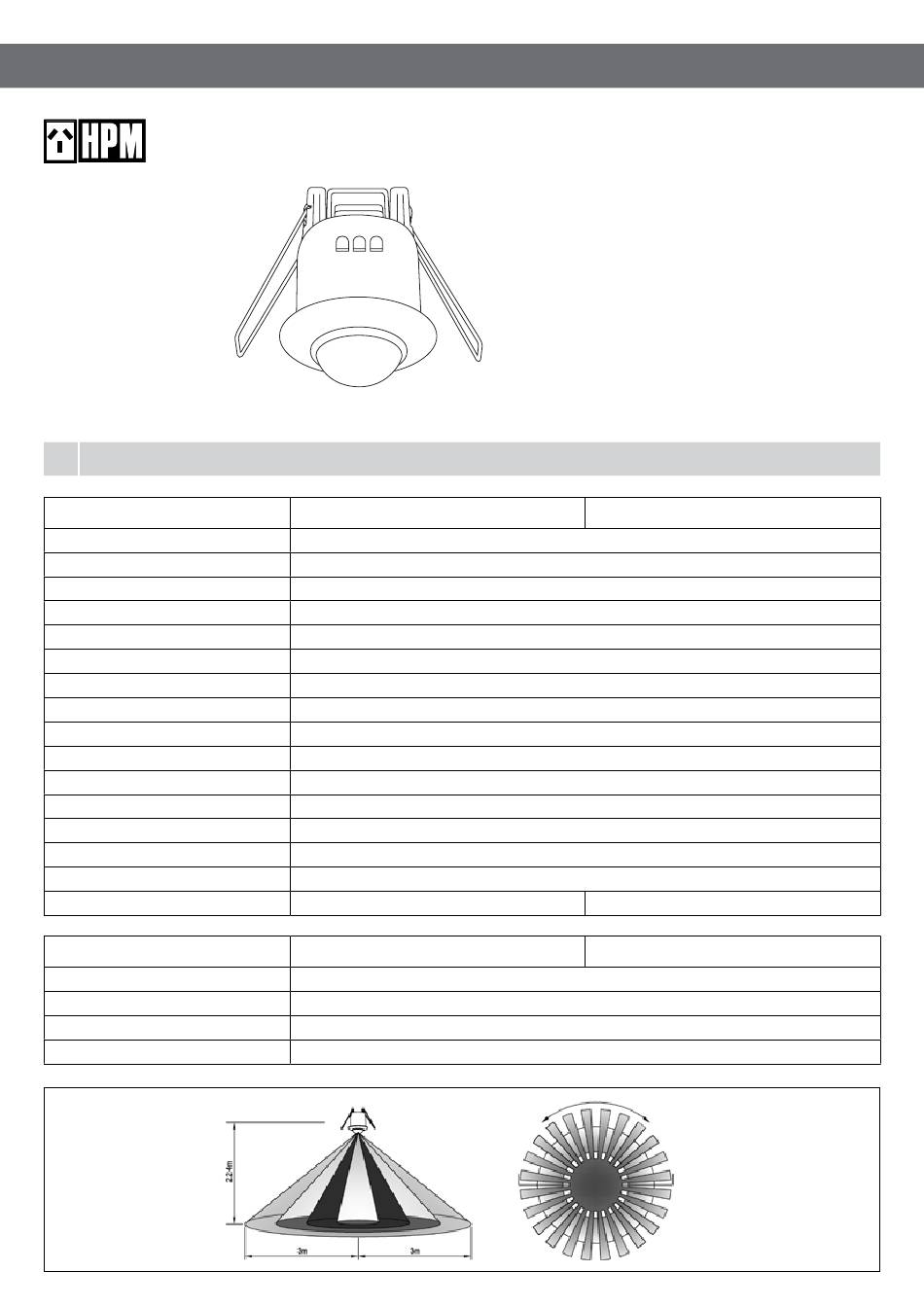

- Page 1 PIR Movement Sensors Instruction Manual Cat. 630R01WE, 630R01BL This product must be installed by a licensed electrician Specifications Cat No 630R01WE 630R01BL Detection Method Passive Infrared (PIR) Supply Voltage 230-240V a.c. 50Hz Terminal Wiring Size 1 x 2.5mm to 2 x 1.5mm Standby Power <...
