USB® Fob Interface
EchoPod communicates with WebCal through a USB® interface called a Fob.
Before plugging your Fob into your computer's USB® port, be sure that you
have installed WebCal on your computer.

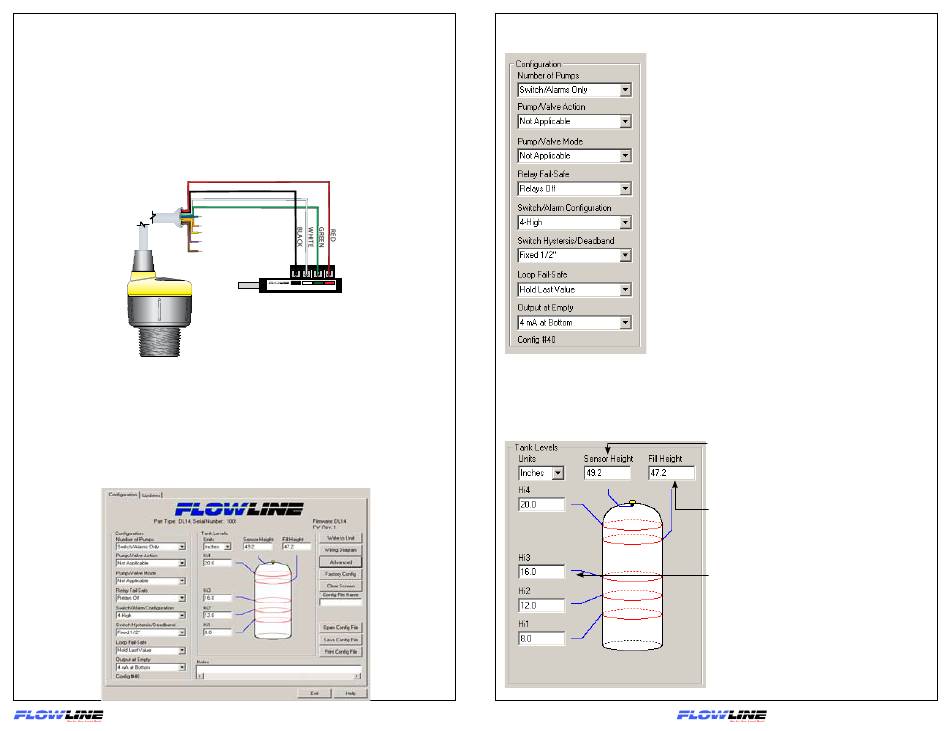

Connect the red, green, white and black wires from EchoPod into the correct
terminals on the Fob. Tighten the screws on the terminals and plug your Fob
into the USB® port of your computer.
WebCal
With EchoPod connected to your computer, open the WebCal software. Fol-
low steps 1-3 (pg. 4-5) to configure EchoPod. Click "Help" in the lower right
hand corner and open the help menu of WebCal. If you need additional as-
sistance using WebCal, please contact a Flowline Applications engineer.
We Do Your Level Best
PART NO.: LI99-1001
* Once the unit has been configured, the
White and Green wires must be isolated
from the active power to prevent a
shorting of the configuration circuit.
3
WebCal Step 1: Configuration
This section of WebCal is where you select the
application's configuration settings. Start from
the top and work to the bottom, choosing the
selections that are applicable to your configura-
tion. "Not Applicable" will automatically show
when a selection doesn't apply to your configu-
ration settings, and you may move on. All con-
figuration settings must be selected or have "Not
Applicable" before you can continue to step 2.
Right click on any menu that you may have ques-
tions on to open the help menu.
WebCal Step 2: Tank Levels
This section of WebCal is where you enter application measurement values.
All values must be filled in before moving to step 3.
Sensor Height: Distance from the bot-
tom of the tank to the bottom of the
transducer.
Fill Height: Distance from the bottom
of the tank to the maximum liquid
height.
Relay Set Points: Distance from the
bottom of the tank to set-points.
Right click on any value you may have
questions on to open the help menu.
