Summary of Contents for Excel VCMB42

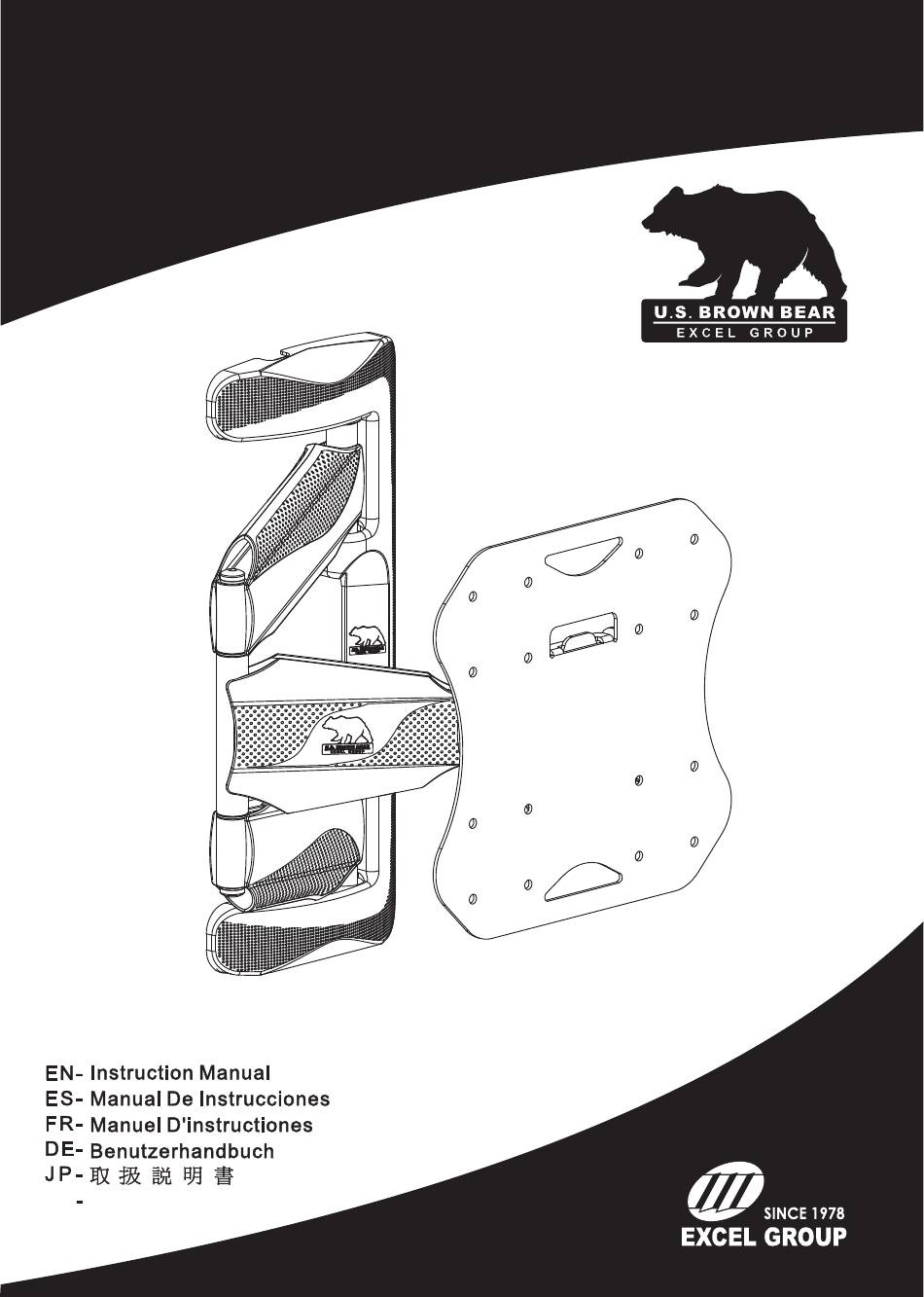

- Page 1 Full-Motion Mount With Tilt VCMB42 說 明 手 冊...
- Page 3 or brick wall. CAUTION:The maximum loading weight is 66lbs, Use heavier than that may cause injury see apparatus instructions. Este producto ha sido diseñado para su uso en una pared vertical interpretarse de albañilería (cemento sólido) o vigas de madera o pared de ladrillo. Los postes de madera deben tener un mínimo de 2x4 pulgadas.Para una instalación segura en la pared se va a instalar debe ser compatible con 4 veces el peso de la carga total, si no, la superficie debe ser reforzada para cumplir con esta norma.
- Page 4 需要的工具 Power Drill Phillips Screwdriver Hammer Pencil Stud Finder Socket Wrench 電鑽 十字螺絲起子 鐵鎚 鉛筆 木條感應器 六角板手 內容 Wall Bracket Flat Screen Bracket Extenders Concrete/Brick Wall Anchors Washers...
- Page 5 *Recommended use with Wood Stud & Concrete Wall/Brick wall 建議在木立柱與水泥牆/磚牆上使用 50” 30kg 66lbs Max. Screen Size Max. Screen Weight Do not exceed the maximum weight capacity for this product. Use with products larger than suggested maximum weight and size may result in instability causing possible injury or damage.
- Page 6 Remove cover from Wall Bracket. Align Wall Bracket to marked Flat Screen 拆下牆板保護蓋 center point. 將牆板件的中心位置對正於螢幕中心線 Screen center Use Wall Bracket as template to mark drilling Drill pilot holes at marked locations (x4). 使用電鑽在標記位置鑽４個孔 locations with pencil (x4). Use level to insure proper alignment. 使用牆板標記鑽孔位置，並利用水平儀確保水平...
- Page 7 Secure W-A Lag Bolt and W-C Washer into Place Wall Bracket on W-A Lag Bolts and pilot holes(x4). Leave 0.6" (1.5 cm) visible. tighten (x4). 0.6”(1.5cm) 將牆板對準螺絲掛上，並將４顆螺絲鎖緊。 將牆板螺絲套上墊片，鎖入牆孔，預留 螺絲長度。 0.6”(1.5cm) * Option For Drywall Only: Gently Hammer Drywall Anchors (Not Included), into pilot holes (x2). Caution: Do Not Use Wall Anchors in Wood Studs.
- Page 8 Wall Bracket Installation Steps For Concrete/Brick 牆板安裝步驟－水泥牆／磚牆 Select viewing height. Measure the width and length of your Flat Screen. Mark top and side center of screen Remove cover from Wall Bracket. dimensions with tape or pencil (x4). Determine screen 拆下牆板保護蓋 center point and mark with pencil.
- Page 9 Drill pilot holes at marked locations (x4). Gently hammer Wall Anchors into pilot holes (x4). 使用電鑽在標記位置鑽４個孔 使用鐵鎚將膨脹管輕輕捶入孔內（ｘ４） Drill Pilot Hole Size 0.39”( 10 mm) Pilot Hole Depth 2.4”( 60 mm) Secure W-A Lag Bolt and W-C Washer into pilot Place Wall Bracket on W-A Lag Bolts and holes (x4).
- Page 10 Place cover back on Wall Bracket. Wall Bracket installation complete. 蓋上牆板保護蓋 牆板安裝完成，螢幕背板安裝步驟請參考下方 面板安裝步驟 Flat Screen Bracket Attachment Steps 安裝平板電視不要太過用力旋緊螺絲，並確保螺絲長度不要超過面板孔深! 墊片 襯套 Not Included...
- Page 11 Identify your VESA pattern on the back of Flat Screen. Use appropriate configuration to match. 了解螢幕背孔孔距，以下為面板延伸片排列組合方式。 *Use Only Flat Screen Bracket for VESAhole patterns 200x200mm or smaller. ＊螢幕背孔距離為２００ｘ２００ｍｍ請直接使用背板安裝。 400 X 300 400 X 400 400 X 300 400 X 200 (Screen up) 400 X 200 (Screen down) 300 X 300 300 X 200 (Screen up)
- Page 12 Attach Extenders for VESA patterns larger than 200 x 200. 組合螢幕背板與延伸片。 Screws and Washers from Monitor Kit. 螢幕配件裡的螺絲與墊片 Align Flat Screen Bracket with VESA hole pattern and secure with appropriate screw size and washers from Monitor Kit. 依螢幕背孔大小挑選螺絲，套上襯套，將螢幕背板固定。 Be sure to carefully align the holes of the brackets with the mounting holes on the flat screen. 請務必確保將面板鎖固於螢幕的背孔。...
- Page 13 螢幕背板安裝步驟 Flat Screen Bracket to Wall Mount Attachment Steps To secure bracket into place, Lift and hang Flat Screen with attached bracket tighten nuts on mounting plate with open-end (A) onto mounting plate (B) connected to the wrench M-P (x2). Wall Bracket.
- Page 14 To adjust Tilt or Alignment of Flat Screen use open-end wrench (M-P). 若螢幕面板部份不平整，請使用開口扳手（Ｍ－Ｐ）鬆開螺帽，調整面板角度至水平後，再將螺帽旋緊。 Tighten nuts to secure Adjust tilt or angle of Flat Screen. Loosen nuts on 調整面板角度至水平 into place (x2). mounting plate (x2). 將螺帽旋緊（ｘ２）。 鬆開螺帽（ｘ２）...
- Page 15 U.S. Brown Bear warrants its products to be free of defects in material and workmanship for the product's Warranty Period. The Warranty Period commences on the original purchase date of the product. The U.S. Brown Bear warranty Period is: Five (5) years for Flat Panel Mounts.
- Page 16 THANK YOU FOR PURCHASING U.S. BROWN BEAR PRODUCTS. GRACIAS POR ADQUIRIR UN PRODUCTO U.S. BROWN BEAR. 感謝您購買 的產品。 North Carolina São Paulo, Brazil Come h a ng w i th u s...
