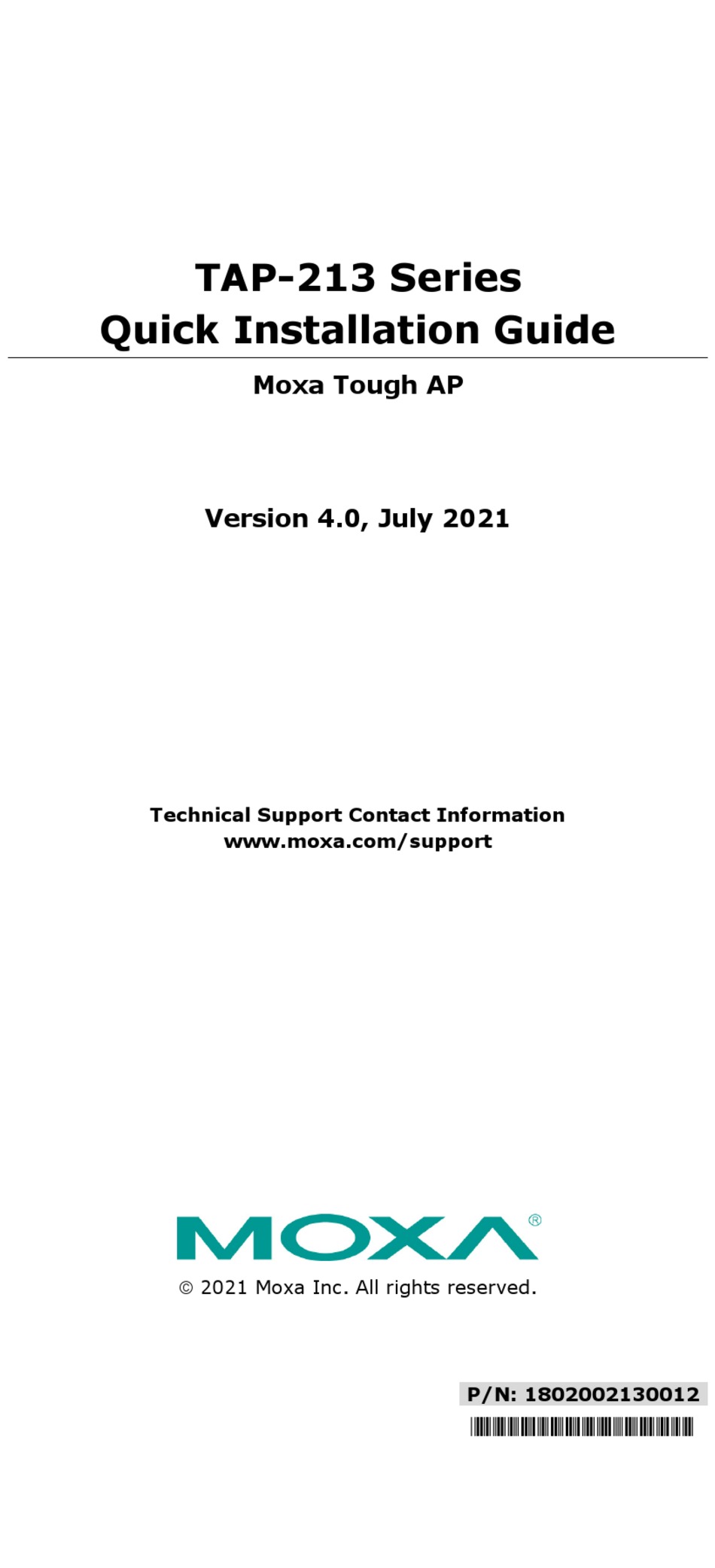

- Page 1 TAP-213 Series Quick Installation Guide Moxa Tough AP Version 4.0, July 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802002130012 *1802002130012*...
-
Page 2: Package Checklist
Overview The TAP-213 outdoor wireless AP/client is the ideal ruggedized wireless solution for railway onboard and train-to-ground applications such as CCTV and CBTC communications. It can provide speeds of up to 300 Mbps with IEEE 802.11n technology. The TAP-213’s dust- tight/weatherproof design is IP68-rated, and it can operate at temperatures ranging from -40 to 75°C, allowing you to extend wireless networks to outdoor... - Page 3 Step 3: Set up the computer’s IP address Set an IP address for the computer so that it is on the same subnet as that of the TAP-213. Since the TAP-213’s default IP address is 192.168.127.253, and the subnet mask is 255.255.255.0, set the IP address of the computer in the 192.168.127.xxx IP range and subnet mask to 255.255.255.0.
- Page 4 Panel Layout of the TAP-213 1. 1A N-type antenna port 2. 1B N-type antenna port 3. Model name 4. LEDs for PWR, FAULT, STATE, WLAN, LAN1, and LAN2 5. 4-pin male M12 A-coded connector for PWR-1 and PWR-2 6. 10/100/1000BaseT(X) 8-pin M12 X-coded female connector for LAN1 7.
-
Page 5: Mounting Dimensions
Mounting Dimensions Unit: mm (inch) Wall Mounting In most applications, wall mounting the TAP-213 is the most commonly used method, which makes installation easier as illustrated below: STEP 1: Attach the wall-mounting plates with M4 screws. - 5 -... -
Page 6: Din-Rail Mounting (Optional)
STEP 2: Mounting the TAP-213 to a wall requires 4 screws. Use the TAP-213 device, with wall-mounting plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be 6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as shown in the figure at the right. - Page 7 STEP 1: Attached the DIN-rail mounting plates to the TAP-213 using M3 screws. STEP 2: STEP 3: Insert the top of the DIN rail into The DIN-rail attachment unit will the slot just below the stiff metal snap into place as shown in the spring.
- Page 8 Pole Mounting (Optional) You might find it more convenient to mount the TAP-213 on a pole for some applications, as illustrated below. The edges of the iron rings that are part of the pole-mounting kit are sharp. We suggest that you wear gloves to protect your hands during the installation process.
-
Page 9: Wiring Requirements
WARNING • This equipment is intended to be used in a Restricted Access Location, such as a dedicated computer room where access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the fact that the metal chassis of the equipment is extremely hot and may cause burns. -
Page 10: Connecting The Power Supplies
ATTENTION This product is intended to be supplied by a Listed Power Unit marked “Class 2” or “LPS” and rated O/P: 24 to 110 VDC, 15 W (max.) ATTENTION Make sure the external power adapter (includes power cords and plug assemblies) provided with the unit is certified and suitable for use in your country. -
Page 11: Communication Connections
ATTENTION Before connecting the TAP-213 to the DC power inputs, make sure the DC power source voltage is stable. Communication Connections 10/100/1000BaseT(X) Ethernet Port Connection The TAP-213 has a 10/100/1000BaseT(X) Ethernet port (LAN1 8-pin shielded M12 X-coded connector). The 10/100/1000TX port located on the front panel is used to connect to Ethernet-enabled devices. -
Page 12: Led Indicators
NOTE When using a fiber optic small-form pluggable (SFP) module, ensure it is a IEC 60825-1 certified and Class 1 Laser Product. USB Storage Connection The TAP-213 has one USB storage port (5-pin female M12 A-coded) on the front panel. Use the Moxa ABC-02-USB-T automatic backup configurator to connect to the TAP's USB storage port for configuration backup, firmware upgrade, or system log file backup. - Page 13 Color State Description STATE Green System startup is complete and the system is in operation Blinking (fast AeroLink Protection is enabled at 0.5-sec and is currently in “Backup” state intervals) Blinking (slow Device has been located by at 1-sec Wireless Utility intervals) System is booting up WLAN...
-
Page 14: Specifications
Specifications WLAN Interface Standards IEEE 802.11a/b/g/n for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT IEEE 802.3at for Power-over-Ethernet IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Spread Spectrum and •... - Page 15 Transmitter Power 802.11b: • Typ. 26±1.5 dBm @ 1 Mbps • Typ. 26±1.5 dBm @ 2 Mbps • Typ. 26±1.5 dBm @ 5.5 Mbps • Typ. 25±1.5 dBm @ 11 Mbps 802.11g: • Typ. 23±1.5 dBm @ 6 to 24 Mbps •...
- Page 16 802.11n (5 GHz): • Typ.23±1.5 dBm @ MCS0 20 MHz • Typ.20±1.5 dBm @ MCS1 20 MHz • Typ.20±1.5 dBm @ MCS2 20 MHz • Typ.20±1.5 dBm @ MCS3 20 MHz • Typ.19±1.5 dBm @ MCS4 20 MHz • Typ.18±1.5 dBm @ MCS5 20 MHz •...
- Page 17 802.11n (2.4 GHz): • -89 dBm @ MCS0 20 MHz • -85 dBm @ MCS1 20 MHz • -85 dBm @ MCS2 20 MHz • -80 dBm @ MCS3 20 MHz • -76 dBm @ MCS4 20 MHz • -73 dBm @ MCS5 20 MHz •...
- Page 18 802.11n (5 GHz): • -88 dBm @ MCS0 20 MHz • -85 dBm @ MCS1 20 MHz • -82 dBm @ MCS2 20 MHz • -79 dBm @ MCS3 20 MHz • -76 dBm @ MCS4 20 MHz • -71 dBm @ MCS5 20 MHz •...
- Page 19 Installation Wall mounting (standard), DIN-rail mounting (optional), pole mounting (optional) Environmental Limits Operating -40 to 75°C (-40 to 167°F) Temperature Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative 5% to 95% (non-condensing) Humidity Power Requirements Input Voltage 24 to 110 VDC, dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3at compliant) Input Current 0.65 A @ 24 VDC;...
- Page 20 ATTENTION Use the antennas correctly: The 2.4 GHz antennas are needed when the TAP-213 operates in IEEE 802.11b/g/n. The 5 GHz antennas are needed for IEEE 802.11a. Make sure your antenna installation is within a safe area, which is covered by a lightning protection or surge arrest system.
