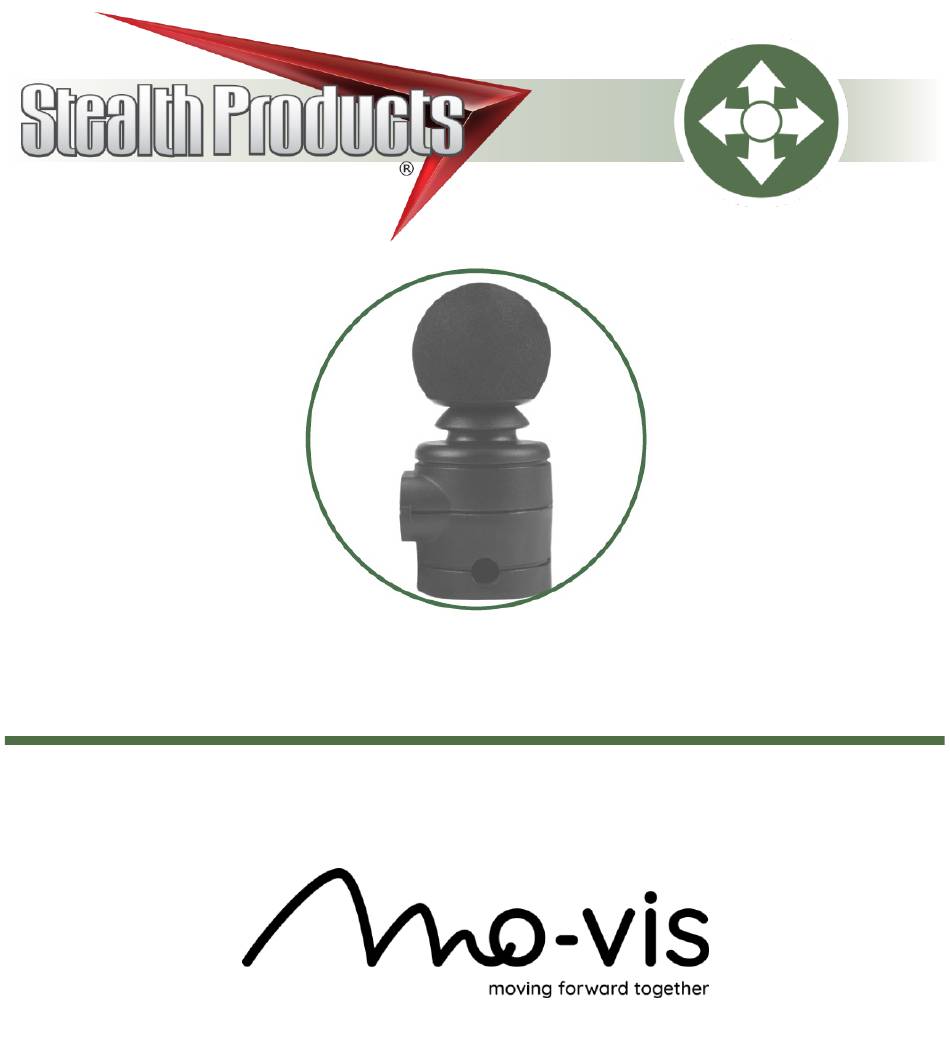

- Page 1 Multi Joystick Owner's Manual mo-Vis Multi Joystick for R-Net...
-
Page 2: Table Of Contents
14.0 Error Codes and Fault Logs .... 21 6.3 Mounting ............1 14.1 Error Codes ..........21 7.0 Parts and Accessories ......2 14.2 Fault Logs ..........23 7.1 Multi Joystick Package ........2 15.0 Technical Data ......... 24 7.2 Multi Joystick Accessories ......2 7.3 Multi Joystick Protective Covers 15.1 Technical Data........24 ..................3... -
Page 3: Customer Satisfaction
Customer Satisfaction Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or to suggest changes that may help us improve the quality and usability of our products. You may reach us at:... -
Page 4: Important Information
Important Information Important Information All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ▪... -
Page 5: Introduction
The fitting, application, CAUTION and/or installation by a non-qualified individual could result in serious injury. Ordering Documentation Additional copies of this manual may be downloaded by accessing the Stealth Products website: https://stlpro.site/stealth-docs and searching "mo-Vis Multi Joystick"... -
Page 6: Warranty
Stealth Products, LLC. Any lack or alteration of serial number, where applicable, will automatically void this warranty. Stealth Products, LLC is liable for replacement parts only. Stealth Products, LLC is not liable for any incurred labor costs. -
Page 7: Warning Labels
Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. -
Page 8: Design And Function
R-net compatibility. Mounting The Multi Joystick can be mounted at any location on the wheelchair. By attaching the Power Chin Boom to the chair, the Multi Joystick can be used as a chin joystick*. The Multi Joystick is compatible with Stealth joystick mounts, including: ▪... -
Page 9: Parts And Accessories
Parts and Accessories Multi Joystick Package The following is included in the Multi Joystick package: Product Description: Part Number: Multi Joystick Set, with IDM-MULTI-R integrated cabling and interface. Multi Joystick Accessories For mounting and further personalization, the following accessories are available:... -
Page 10: Multi Joystick Protective Covers
Before inserting a connector into the joystick, remove the NOTICE protective cover from the desired input port. Not all items in the Multi Joystick will be used to mount the Joystick NOTICE onto a Stealth product. All of these items are compatible with the mo-Vis Power Chin Boom. -
Page 11: Functioning
Users should not use the Multi Joystick as the only support for a hand WARNING or limb, as irregular movements may disrupt controls. -
Page 12: Joystick Safety
Functioning Joystick Safety Do not use the Multi Joystick if any of the following conditions apply: ▪ The joystick handle is damaged, cracked, or missing. ▪ The joystick does not return to its default (center) position independently. ▪ The joystick does not move to and from its default (center) position smoothly. -
Page 13: Connection Options
Connection Options The Multi Joystick can connect one or two switches to either the joystick or the interface. One connection is to power the on/off function and the other is to act as an input or user switch for the wheelchair. -
Page 14: Installation Instructions
Check the condition of the device. Tools Use the proper tools to install and adjust the Multi Joystick to the desired mounting hardware. The use of improper tools may damage the device. CAUTION... -
Page 15: Installation Plan
Any connection must always be secured with all the delivered screws. CAUTION Only use the screws provided with the device. Users should not use the Multi Joystick as the only support for a hand or WARNING limb, as irregular movements may disrupt controls. -
Page 16: Joystick Installation
Installation Instructions Joystick Installation The Multi Joystick can be mounted on your wheelchair using several different mounting systems. Please refer to the installation section of the manual for your specific mounting system to learn how to install the Micro Joystick properly.. -
Page 17: Connection Cable Installation
Installation Instructions Connection Cable Installation Insert the connector into its mate and push firmly. The connector is inserted correctly if the yellow pins are completely invisible. To disconnect the cable, firmly hold the connector housing and pull the connectors apart. Before inserting a connector, remove the input's protective cover. -
Page 18: Configuration Software
Configuration Software 10.0 Software Capabilities 10.1 The Multi Joystick is adjustable with the mo-Vis Configurator Software. ▪ The mo-Vis Configurator Software is compatible with Windows 7, Windows 8, and Windows 10 operating systems. ▪ The mo-Vis Configurator Software is not compatible with Android or iOS systems. -
Page 19: R-Net Settings
R-net Settings 11.0 R-net Setup 11.1 For mo-Vis R-net joysticks to operate properly, some R-net parameters need to be set. information about R-net parameters, please refer to the Curtiss-Wright manual SK77981-14 | R-net Technical Manual | Chapter 3 -- Programming. - R-net Profile Management >... - Page 20 R-net Settings 11.0 CHANGING THE THROW SETTINGS Plug the R-net programming dongle into an available port in the R-net system. Power on the chair. Connect the PC to the Programming Dongle with the USB cable. Start the R-net PC Programming Software on your PC. Select Read from Controller to load the information from the R-net system to the Configurator software.
-
Page 21: R-Net Parameter Settings
R-net Se�ngs 11.0 R-net Parameter Settings 11.3 With the mo-Vis Configurator software you can change the parameters of the Micro Joystick. In the dealer level, you will be able to change a number of parameters. Global parameter Supported Version Solutions Momentary screens enabled Change profile while... - Page 22 R-net Settings 11.0 Global parameter Supported Version Solutions Emergency stop switch OBP keycode entry Power-up mode External profile jack function Profile/mode Jack detect On/off jack detect Profile parameter Supported Version Solutions Joystick forward V02.01 throw Joystick reverse throw V02.01 Joystick left throw V02.01 Joystick right throw V02.01...
- Page 23 R-net Settings 11.0 Profile parameter Supported Version Solutions Invert left/right JS axis V02.01 Invert fwd/rev JS axis V02.01 Use rotate Swap joystick axis function in the mo-Vis Configurator Change mode while V02.00 driving Sleep timer V02.00 Standby timer V02.00 Switch to standby V02.00 Mode selection in V02.01...
-
Page 24: Software Configuration
TILT The Multi Joystick unit is able to detect tilt (in reference to the gravitation of Earth). The wheelchair will stop driving when the Enable parameter is set to On and the joystick is tilted more than 70° in any direction. - Page 25 Software Configuration 12.0 An incorrect programming of the wheelchair or device electronics may cause CAUTION damage to the devices or injury to the user. COMPENSATION MODE Setting Description Parameters Always deactivated Defines the activation Compensation of the compensation Manual (De)activated manually by the user Mode algorithm Always activated...
-
Page 26: Testing
Testing 13.1 After installing the Multi Joystick, execute the following tests, in order, before the wheelchair is delivered or put into service. ▪ a visual check to ensure that the joystick is intact;... - Page 27 Testing 13.0 VISUAL TEST Check to ensure: ▪ the joystick is not bent or damaged; ▪ none of the joystick's housing, cabling, or connectors are damaged; and, ▪ the joystick returns to its default (center) position upon release. The device should always be tested without any person sitting in the WARNING wheelchair after every alteration of the physical installation or adjustment of the parameters.
-
Page 28: Error Codes And Fault Logs
LED flashes error code When a fault occurs, the LED of the Multi Joystick will start to flash. A long delay is followed by a number of flashes with a short delay. Count the number of flashes and look up the corresponding error... -
Page 29: Fault Logs
Error Codes and Fault Logs 14.0 Fault Logs 14.2 FAULTS The configurator software maintains a fault log with fault counters. Each time a specific fault occurs, its counter will increase by one. (The maximum count value is 254.) The fault log can be accessed by the configurator (which requires Dealer-level profile access), which is then able to clear one or all of the fault counters. - Page 30 Error Codes and Fault Logs 14.0 Fault: Reason for Fault: Required Action: A fault occurred during Field Test Failed Field test failed (Calibration). Field Testing (calibration). One or More Test flags Not Redo test(s) Test Flag Check Set. and/or Replace PCB. - Check R-net Cable, ADC Conversion error Replace PCB Interface.
-
Page 31: Technical Data
Technical Data 15.0 Technical Data 15.1 JOYSTICK CONNECTORS ▪ 1/8" (3.5mm) mono jack input (on/off) ▪ 1/8" (3.5mm) mono jack input (mode) ▪ Mini USB ▪ Rnet BUS cable JOYSTICK DIMENSIONS ▪ Joystick: 2.64 in. x 1.31 in. (67mm x 33mm) - [Height x Depth] ▪... -
Page 32: First Time Use
User Testing 16.2 It is important that the customer is fully aware of the installation of the Multi Joystick, how to use it, and how it can be adjusted to fit the client comfortably. As a dealer, proceed as follows: ▪... -
Page 33: Maintenance
Maintenance 17.0 Maintenance 17.1 The Multi Joystick is designed to be maintenance-free. Under the circumstances of regular use, the joystick, interface, and assembly parts do not require additional maintenance. Always check all mounting hardware, making sure each fastener CAUTION is properly tightened before using the Multi Joystick. -
Page 34: Notes
Notes 18.0... - Page 35 Notes 18.0...
- Page 36 © 2021, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P120D676 mo-Vis Multi Joystick Owners Manual.afpub Jun 24, 2021...
