Serial Number Location

CAUTION
Ensure all battery modules installed in any single
PWRcell Battery are the same type (EX or DCB).
Connecting different battery types can result in
equipment damage.

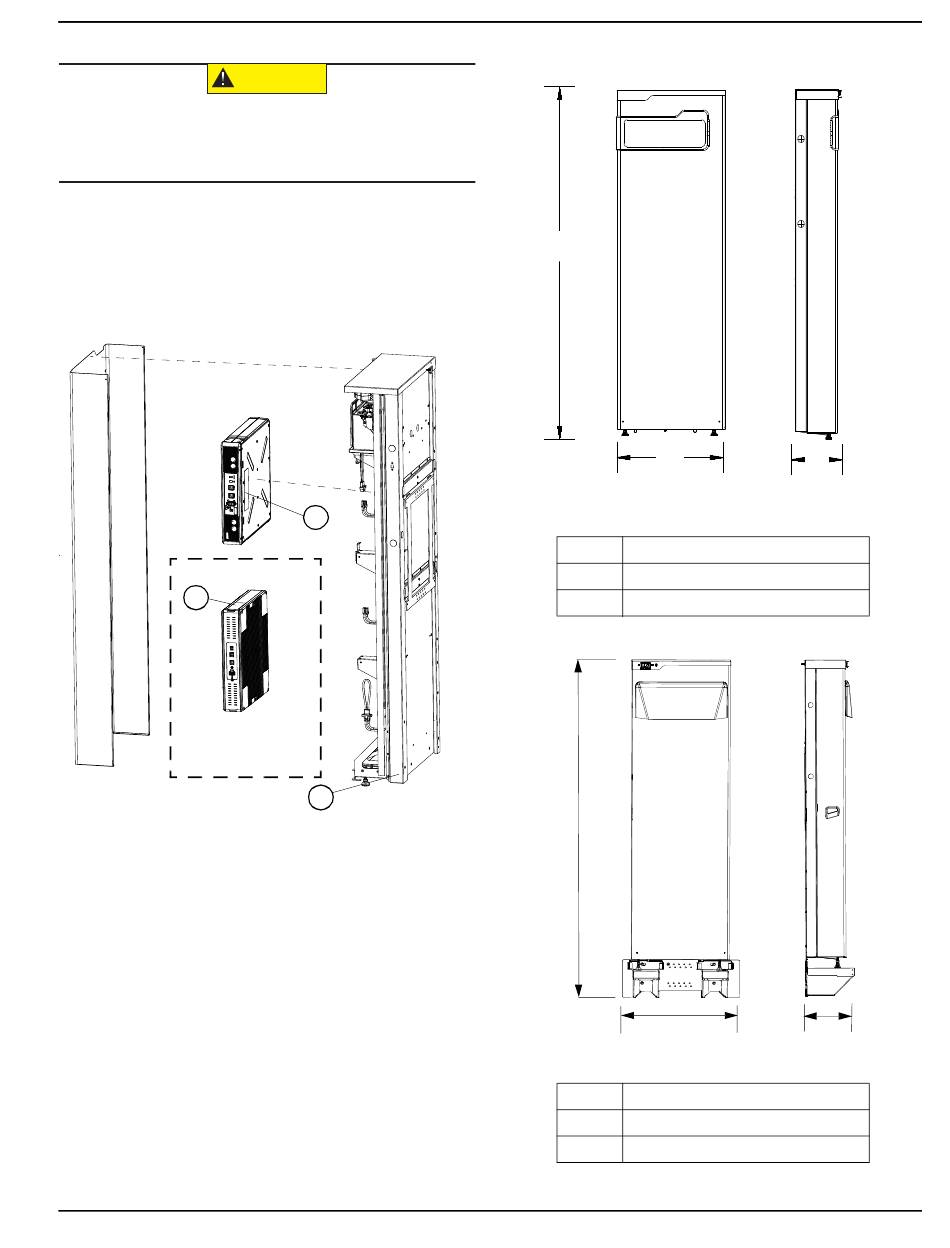

Refer to Figure 2-1 to locate serial numbers for the unit
(A) and the individual battery modules (B). Record this
information in
Table 1: Important Information
inside front cover of this manual so it is available if the
tags are lost or damaged. When ordering parts or
requesting assistance, you may be asked to provide this
information.
DCB Battery
EX Battery
B
Do Not Mix Battery
Types in a Single
Enclosure
Figure 2-1. Serial Number Location
Owner's Manual for Generac PWRcell Battery
(000731a)
on the
B
A
012306

Unit Dimensions

Indoor Rated Unit Dimensions

A
B
Figure 2-2. Unit Dimensions
A 68-3/8 in (1,737 mm)
B 22 in (558 mm)
C 9-7/8 in (251 mm)

Outdoor Rated Unit Dimensions

A
B
Figure 2-3. Unit Dimensions
A 73 3/16 in (1,859 mm)
B 26 1/8 in (663 mm)
C 11 in (279 mm)
General Information
C
009892
C
011162
