(In the UK Only)

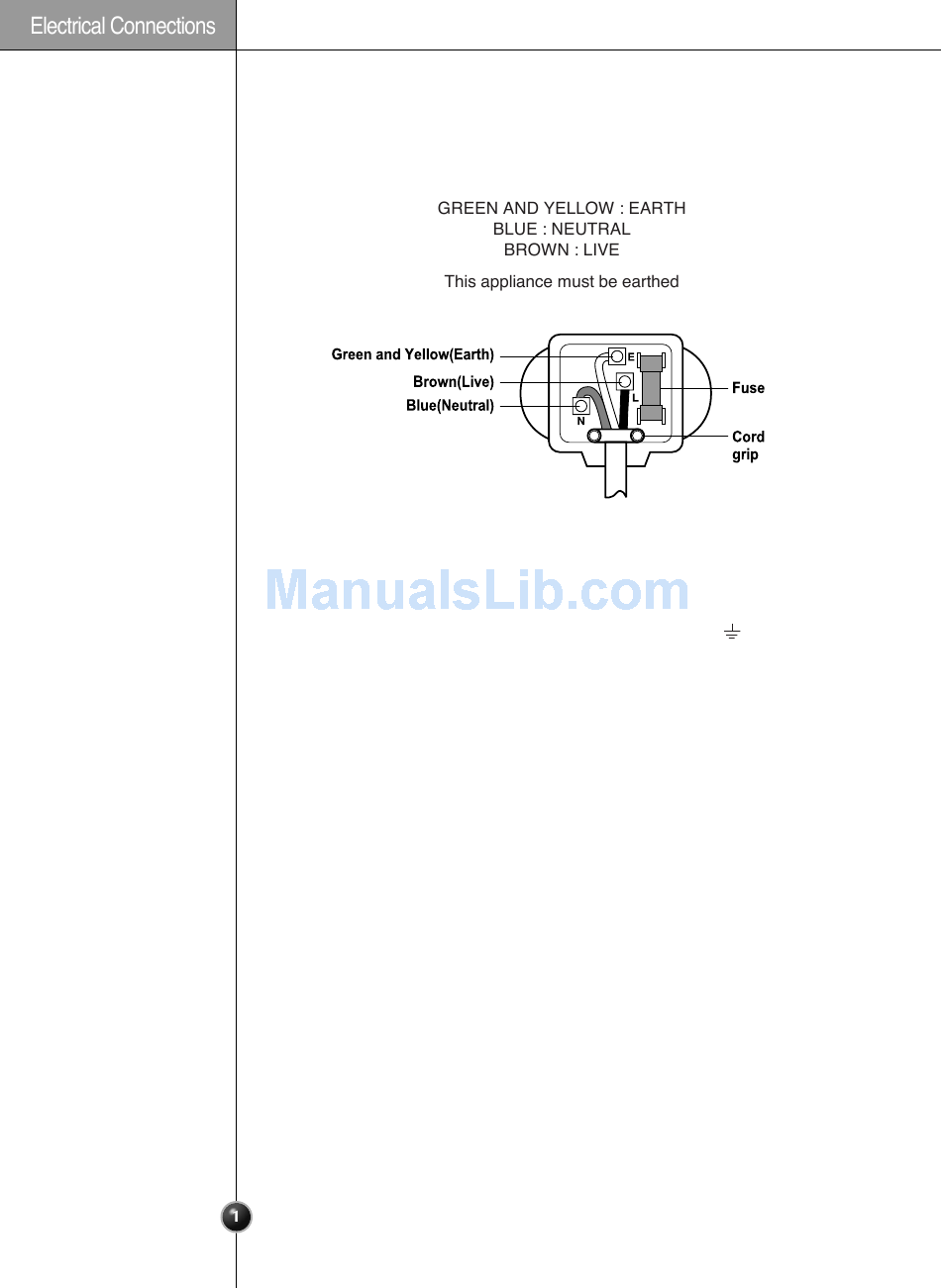

The wires in this mains lead are coloured in accordance with the following code :
Important
As the colours of the wires in the mains lead of this apparatus may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows :
The wire which is coloured Green and Yellow must be connected to the terminal in
the plug which is marked with the letter E or by the earth symbol(
) or coloured
Green or Green and Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Black.
The wire which is coloured Brown must be connected to the terminal which is
marked with the letter L or coloured Red.
If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362 fuse.
Advertisement
Table of Contents
Related Manuals for LG GRG227STGA
Summary of Contents for LG GRG227STGA
- Page 1 (In the UK Only) The wires in this mains lead are coloured in accordance with the following code : Important As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows : The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol( ) or coloured...
- Page 2 Table of contents Introduction Installation Operation Suggestion on food storage Care and maintenance...
-
Page 3: Important Safety Instruction
Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. -
Page 4: Grounding (Earthing)
Child entrapment DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: warning Take off the doors but leave the shelves in place so that children may not easily climb inside. The appliance is not intended for use by young children or infirm persons without supervision. -
Page 5: Disposal Of The Old Appliance
Where to Install 1. Place your appliance where it is easy to use. Select a good location 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall. -
Page 6: Door Removal
Door removal Electric Shock Hazard Warning Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury. If your access door is too narrow for the refrigerator to pass through, remove the refrigerator door and pass the refrigerator laterally. Remove lower Remove the lower cover by lifting upward, and cover and... -
Page 7: Door Replacement
Pass the refrigerator laterally through the access Pass the refrigerator door as shown in the right figure. Door replacement Mount them in the reverse sequence of removal after they pass through the access door. Feed water pipe installation Before Automatic ice maker operation needs water pressure of 147~834 kPa (1.5~8.5 installation kgf/cm ) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.). -
Page 8: Height Adjustment
Height adjustment If the freezer Level the door by inserting flat ( - type) driver into the groove of the left height adjusting screw and rotate it clockwise ( ). compartment door is lower than the refrigerator compartment door If the freezer Level the door by inserting flat ( - type) driver into the groove of the right height compartment door adjusting screw and rotate it clockwise ( ). -
Page 9: Connection To External Equipment
Connection to External equipment For optimum picture quality, adjust antenna direction if needed. Antenna/Cable Connection Apartment Buildings VHF antenna UHF antenna Connecting Connection a VCR / DVD 1. Connect the audio/video out sockets of the VCR to audio/video in sockets of the set. 2. -
Page 10: Adjusting The Temperatures And Functions
Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions (hidden) NOTE Your model may not include every option. -
Page 11: How To Adjust The Temperature In The Refrigerator Compartment
Display Power Saving Mode This function places the display into power saving mode until the next time the door is opened. Press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5 seconds until the Ding sounds. All LEDs will then turn ON, then OFF. When the power saving mode is activated, the display will remain off until the next time the door is opened. -
Page 12: How To Use Dispenser
How to use Select one among crushed ice, water, and cubed ice and slightly press the push switch with a glass or other container. dispenser Crushed ice Light the crushed ice indicating lamp by pressing the selection button. C rushed ice will be •... -
Page 13: Express Freezer
Ice is lumped together When ice maker does not operate When ice is lumped together, take the ice lumps out of the ice storage bin, break smoothly them into small pieces, and then place them into the ice storage bin again. When the ice maker produces too small or lumped together ice, the amount of water supplied to the ice maker need to adjusted. - Page 14 There is a replacement indicator light for the Filter condition water filter cartridge on the dispenser. (filter replacement cycle) display The water filter should be replaced every six months. function The filter light comes on to let you know when to replace filter. After replacing the filter, press and hold the filter button more than 3 seconds to reset the indicator.
- Page 15 Water is cooled while stored in the water tank in the refrigerator compartment, and How ice/cold water is supplied then sent to the dispenser. Ice is made in the automatic ice maker and sent to the dispenser divided into crushed or cubed form ice.
-
Page 16: Shelf (Applicable To Some Models Only)
Shelf (Applicable to some models only) Folding Shelf You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf. Wine holder (Applicable to some models only) Wine holder Bottles can be stored laterally with... -
Page 17: Egg Box (Applicable To Some Models Only)
Egg box (Applicable to some models only) You can move the egg box to wherever you want. [Type-1] NOTE Never use the egg box as an ice storage bin. It can be broken. • Never store the egg box in the freezer compartment or fresh compartment. •... -
Page 18: Convert Into A Vegetable Or Meat Compartment (Applicable To Some Models Only)
Convert into a vegetable or meat compartment (Applicable to some models only) The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer. NOTE Vegetables or fruits are frozen if the conversion switch is set to meats •... -
Page 19: Miracle Zone Temperature Transition Corner (Applicable To Some Models Only)
Miracle Zone Temperature Transition Corner (Applicable to some models only) By pressing the button, store vegetables, fruits or other types of food such as meat to be defrosted, raw fish, etc. Temperature Change at Miracle Zone (Applicable to some models only) Method to Use You can select optimum temperature range depending on... -
Page 20: Location Of Foods
Location of foods (Refer to identification of parts) Wine holder Store wine. Snack drawer Store small foods such as bread, snacks, etc.. Freezer Store various frozen foods such as meat, fish, compartment ice cream, frozen snacks, etc.. shelf Store small packed frozen food. Freezer Temperature is likely to increase as door compartment... -
Page 21: Storing Foods
Storing foods Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food which goes bad easily at low temperatures, such as bananas, and melons. -
Page 22: How To Dismantle Parts
How to dismantle parts NOTE Dismantling is done in the reverse sequence of assembly. • Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged. Freezer Separate the lamp by pulling it out (➂) while compartment slightly striking (➀) and rotating (➁) the lamp cover. - Page 23 Lamp in Insert the tool into the marked area ( ) and push the refrigerator tool to disconnect. compartment Use the tool with the flat tip such as (-) screw driver. Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center.
-
Page 24: General Information
General information During average length vacations, you will probably find it best to leave the refrigerator Vacation time in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation. -
Page 25: Troubleshooting
Trouble shooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Occurrence Possible cause Runing of refrigerator Refrigerator control is off. - Page 26 Occurrence Possible cause Refrigerator Thermostat is keeping the refrigerator compressor at a constant temperature. does not run. Temperatures are too cold Temperature in the Freezer control is set too cold freezer is too cold but the refrigerator temperature is satisfactory. Temperature in the Refrigerator control is set too cold.
- Page 27 Occurrence Sound and noise Louder sound Today’s refrigerators have increased levels when storage capacity and maintain more refrigerator is on. even temperatures. Louder sound Refrigerator operates at higher pressures levels when during the start of the ON cycle. compressor comes on. Vibrating or Floor is uneven or weak.
- Page 28 Occurrence Odors in refrigerator Interior needs to be cleaned. Food with strong odor is in the refrigerator. Some containers and wrapping materials produce odors. Opening/Closing of doors/Drawers Door(s) will not Food package is keeping door open. close. Door(s) will not Door was closed too hard, causing other close.
- Page 29 Occurrence Possible cause Ice has melted and frozen around auger Dispenser will not dispense due to infrequent use, temperature ice. fluctuations and/or power outrages. Ice dispenser Ice cubes are jammed between the ice is jammed. maker arm and back of the bin. Ice cubes are frozen together.
