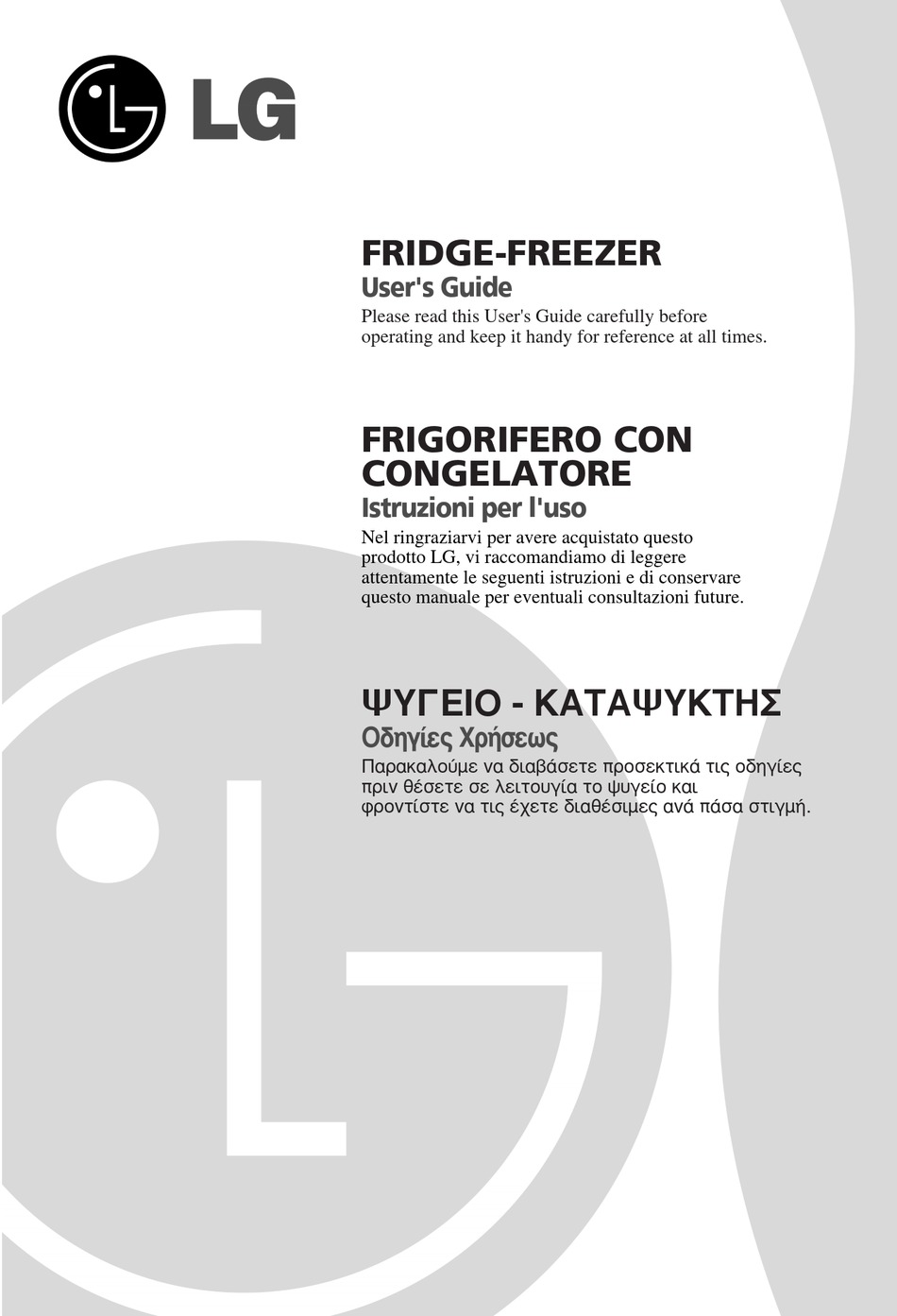

FRIGORIFERO CON CONGELATORE Istruzioni per l'uso Nel ringraziarvi per avere acquistato questo prodotto LG, vi raccomandiamo di leggere attentamente le seguenti istruzioni e di conservare questo manuale per eventuali consultazioni future. æY°∂π√ - KATAæYKTH™ √‰ËÁ›Â˜ ÃÚ‹Ûˆ˜...
Table of Contents Registration Introduction Important Safety Instruction Identification of Parts Installation Installation Starting Installation Guide Operation Temperature Control Miracle Zone Express Frz. Vacation Self Test Lock On/Off Vita Light Door Alarm Ice Making Ice Homebar Defrosting Water Dispenser Wine Rack Suggestion On Storing Food Food storage...
Introduction Registration Introduction The model and serial number are found on the rear of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Page 5
Introduction Important Safety Instruction w w WARNING To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance. 1. When connecting the power The dedicated outlet should be used.
Page 6
Introduction Important Safety Instruction Do not extend or modify the length of the power plug. It causes electric shock or fire by the electric damage of the power cord or others. Unplug the power plug when cleaning, handling or replacing the interior lamp of the fridge-freezer. •...
Page 7
Introduction Important Safety Instruction Make sure of grounding. Consult a qualified electrician or service person if the grounding instructions are not completely Ground Wire understood, or if you have doubts on whether the appliance is More than Copper 30 inches properly grounded or not.
Page 8
Introduction Important Safety Instruction Prevent children from entering the product. It may endanger the life of a child if the child enters the refrigerator. Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.
Page 9
Introduction Important Safety Instruction Do not store the medicine or the academic materials at the fridge-freezer. When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk. The Academic Medicine Do not use the combustible spray near the fridge-...
Page 10
Introduction Important Safety Instruction Use the submerged fridge-freezer after checking it. It may cause electric shock or fire. When gas is leaked, do not touch the fridge-freezer or the outlet and ventilate the room immediately. • The explosion by spark may cause fire or burn.
Page 11
Introduction Important Safety Instruction Do not allow any person except the qualified engineer to disassemble, repair or alter the fridge- freezer. It may cause injury, electric shock or fire. Do not use the fridge-freezer for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).
Page 12
Introduction Important Safety Instruction Install the fridge-freezer on the solid and level floor. Installing it on the unstable place may cause death by falling down the fridge-freezer when opening or closing the door. Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the fridge- freezer, the heatproof grill (exhaust hole) at the backside.
Page 13
Introduction Important Safety Instruction Do not put bottle in the freezer. It may freeze the contents to break the bottle to cause injury. Do not insert the hands into the bottom of the fridge-freezer. The iron plate of the bottom may cause injury.
Page 14
Introduction Important Safety Instruction w w Warning • This fridge-freezer must be properly installed and Precaution located in accordance with the Installation Instruction before it is used. • Never unplug your fridge-freezer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
Page 15
Introduction Important Safety Instruction w w Warning w w Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. w w Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Page 16
Introduction Important Safety Instruction • If the wall socket is loose, do not insert the power w w Caution plug. It may cause electric shock or fire. • Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.
Introduction Identification of Parts Dairy Corner (Optional) Lamp Egg Tray Removable Basket Door Glass Shelf Wine Rack (Optional) Water Tank (Optional) Snack Bin (Optional) Bottle Vegetable Drawer Basket Door Used to keep fruits and vegetables, etc. fresh and crisp. Miracle Zone (Optional) Water Tank Ice Tray...
Installation Installation Select a good location. Place your fridge-freezer where it is easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
Installation Installation Guide Push (Stopper) to the part of until the end. (Refer to Fig. 3,4) Front Back After attaching , push the refrigerator to the end of the wall. Reference: Part is located at the R room refrigerator door basket. w w Caution This part must be installed for efficiency of refrigerator...
Operation Temperature Control Your fridge-freezer has controls that let you regulate the temperature in the fridge and freezer compartments. Display Panel For Temperature Control Adjusting the temperatures and functions Temperature Adjustment Button for Temperature Miracle Zone Adjustment Compartment Button for Freezer Compartment Temperature...
Page 21
Operation All adjust function of LCD Model is operated after Note pressing any button. How to adjust the • The initial Temperature of the Freezer and Refrigerator temperature in the Compartment is -20°C and 3°C respectively. You can refrigerator and now adjust the temperature of the compartments as you want.
Operation Miracle Zone • By pressing the button, store vegetables, fruits (at Temperature relatively low conservation temperature) or other types of food such as meat to be defrosted, raw fish, etc. Transition Corner (Optional) Method to Use • You can select optimum temperature range depending on types of food stored.
Operation Express Frz. • Please select this function for prompt freezer. • This function is used when you want to freeze the foods quickly. Press the Express Frz. button once, and then the quick freeze operation starts with the lamp it. •...
Operation Vacation • This function makes the fridge-freezer work in a power saving mode which is useful for when you are away on holiday, by reducing energy consumption as much as possible. Pressing ‘VACATION’ starts operation with lamp ON and pressing it again stops the operation. In selecting In selecting "On"...
Operation Lock For LED Model • Pressing this button stops operation of other buttons. • ”Locking” or “Un-Locking” is repeated whenever pressing the LOCK button. (For “Locking” press the “LOCK” button for 3 secs. For “Un-Locking” press the “LOCK” button for 1 secs.) •...
Operation Door Alarm • When the door of the fridge is left opened for a while, the alarm sounds. Please contact with the local service center if warning continue to sound even after closing the door. Ice Making • Take out the water container, fill it up and put it back to it’s original location.
Operation • Push the upper point of Homebar until ‘click’ Sound is Ice Homebar produced. (Optional) • After opening Ice Homebar, It is possible to use ice, making compartment and ice storage bin. w w Caution • Never place heavy items on the ice homebar door or allow children to hang it on.
Operation Water Dispenser (Optional) Features DISPENSER PAD GRILLE HANDLE TANK COVER BUCKET CAP TANK WATER TANK DECOR PANEL VALVE ASSEMBLY Install • Please assemble the VALVE ASSEMBLY after correctly adjusting it with a DOOR HOLE.
Page 29
Operation Filling of After turning the HANDLE Tank backward with the WATER TANK WATER TANK installed at the DOOR, Open the COVER BUCKET and then fill water using a kettle etc. * Fill water while watching a sight glass on the front of the WATER TANK.
Operation Drinking Press the Dispenser Pad with a cup. If pressing the Pad, water inside of the Dispenser is supplied. If slowly removing a cup from the Pad, water will not fall down. Do not use other beverage (milk, juice, carbonated w w Caution beverage etc) than spring water.
Suggestions on food storage Storing Food • Do not store food which goes bad easily at low w w Caution temperature, such as banana, and melon. • Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
Page 32
Suggestions on food storage • f you want to quick freeze new food, you put it middle w w Caution drawer of freezer compartment, and then press the Express Frz. button. • To ensure good air circulation in the appliance, insert the freezer drawers all the way.
Care and Maintenance General Information Power Failure • 1~2 hour power failure does no harm to the foods stores. Try to avoid opening and closing the door too frequently. If You Move • Take out foods from the fridge-freezer and firmly fix the loose items with tape.
Care and Maintenance Lamp Unplug the power Replacement cord from the outlet. Remove the room lamp lid by taking down while pulling its back projection. Remove the lamp by turning it counterclockwise and replace new one. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.
Care and Maintenance Cleaning Before Cleaning Be sure to unplug the power. Exterior Clean the outside of the fridge-freezer with a soft cloth soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth. Interior As above.
Page 36
Care and Maintenance GRILLE and DRIP Remove the HOLE part of the GRILLE with the finger. TRAY Wipe moisture out around the DOOR part and the DRIP TRAY using a clean cloth. Wipe moisture etc out outside of Dispenser and on the Exterior Dispenser Dispenser Pad using a cloth.
Trouble Shooting Before calling for service, check this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Possible Causes • Power plug may be unplugged from the electric Fridge-Freezer outlet.
Page 38
Trouble Shooting Problem Possible Causes • Too frequent or too long door openings. Moisture collects inside • In humid weather, air carries moisture into fridge when doors are opened. • Foods with strong odors should be tightly covered or Fridge has odor wrapped.
