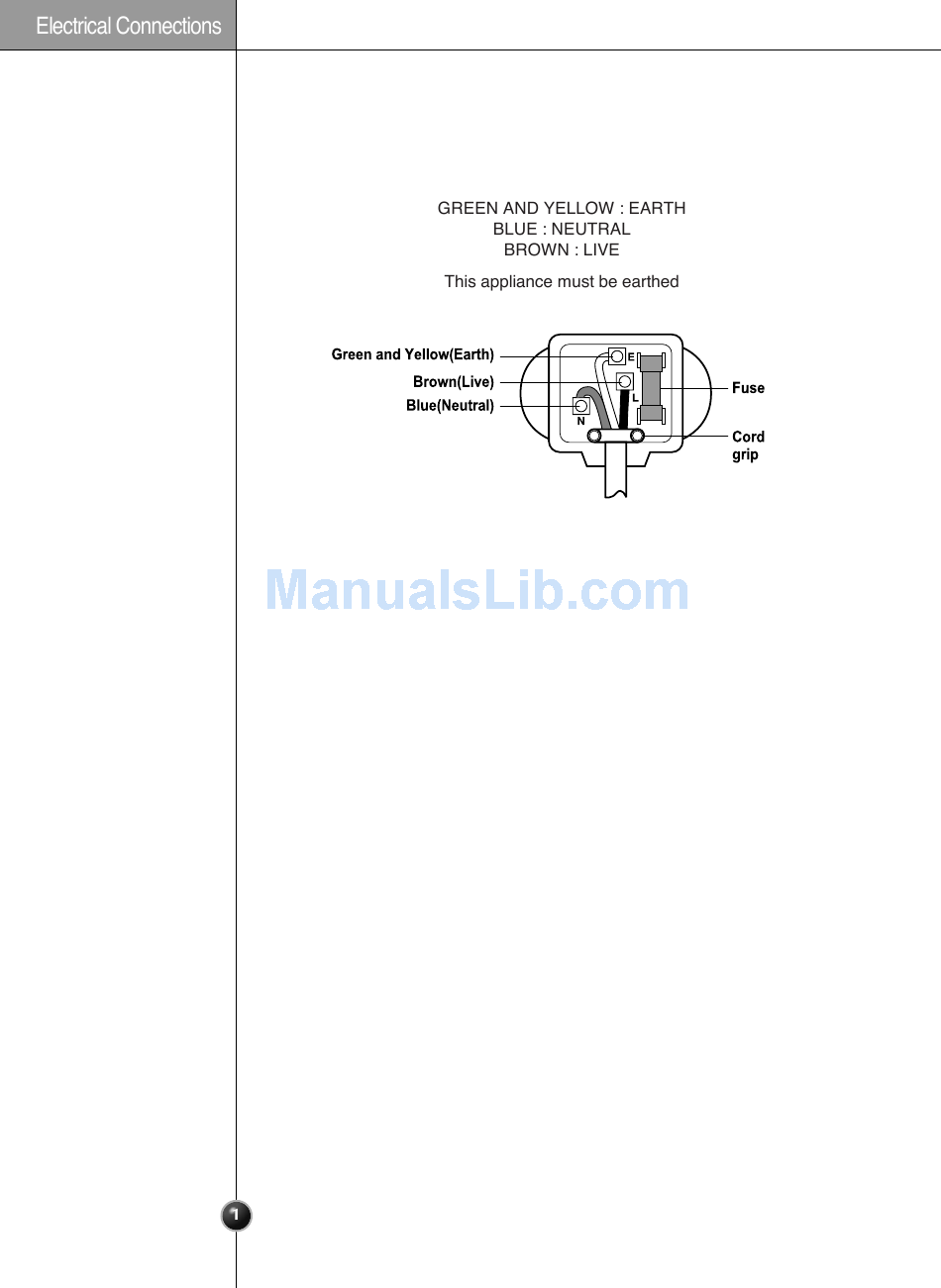

The wires in this mains lead are coloured in accordance with the following code :
Important
As the colours of the wires in the mains lead of this apparatus may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows :
The wire which is coloured Green and Yellow must be connected to the terminal in
the plug which is marked with the letter E or by the earth symbol(b) or coloured
Green or Green and Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Black.
The wire which is coloured Brown must be connected to the terminal which is
marked with the letter L or coloured Red.
If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362 fuse.
Advertisement
Table of Contents
Related Manuals for LG GRL207TVJA
Summary of Contents for LG GRL207TVJA
- Page 1 (In the UK Only) The wires in this mains lead are coloured in accordance with the following code : Important As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows : The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol(b) or coloured Green or Green and Yellow.
- Page 2 Table of contents Introduction Installation Operation Suggestion on food storage Care and maintenance...
-
Page 3: Important Safety Instruction
Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. -
Page 4: Grounding (Earthing)
Child entrapment DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: warning Take off the doors but leave the shelves in place so that children may not easily climb inside. The appliance is not intended for use by young children or infirm persons without supervision. -
Page 5: Disposal Of The Old Appliance
Where to Install 1. Place your appliance where it is easy to use. Select a good location 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall. -
Page 6: Door Removal
Door removal Electric Shock Hazard Warning Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury. If your access door is too narrow for the refrigerator to pass through, remove the refrigerator door and pass the refrigerator laterally. Remove lower Remove the lower cover by lifting upward, and cover and... -
Page 7: Door Replacement
Pass the refrigerator laterally through the access Pass the refrigerator door as shown in the right figure. Door replacement Mount them in the reverse sequence of removal after they pass through the access door. Feed water pipe installation Before Automatic ice maker operation needs water pressure of 147~834 kPa (1.5~8.5 installation kgf/cm ) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.). -
Page 8: Height Adjustment
Height adjustment If the freezer Level the door by inserting flat ( - type) driver into the groove of the left height adjusting screw and rotate it clockwise ( ). compartment door is lower than the refrigerator compartment door If the freezer Level the door by inserting flat ( - type) driver into the groove of the right height compartment door adjusting screw and rotate it clockwise ( ). -
Page 9: Adjusting The Temperatures And Functions
Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions... -
Page 10: How To Adjust The Temperature In The Refrigerator Compartment
You can adjust temperature of and freezer room and refrigerator room. How to adjust the temperature in the freezer compartment How to adjust the temperature in the refrigerator compartment ❇ Whenever pressing button, setting is repeated in the order of (Middle) ➔ (Middle Strong) ➔... -
Page 11: Automatic Icemaker
The icemaker can automatically make 8 pieces of ice cubes at anyone time, Automatic ice approximately 80 pieces per day. However these quantities may vary according to maker certain conditions. E.g. the duration and amount of times the refrigerator door is opened. -
Page 12: How To Use Dispenser
The other Door open warning functions 3 times of warning sounds at the interval of 30 seconds if a minute passes with the door of refrigerator and the hombar door opened or completely closed. Please contact with the local service center if warning continue to sound even after closing the door. - Page 13 As demonstrated below, it displays the months left in units of 30 days until the filter 6 Filter condition replacement is required, starting from when the refrigerator power usage is (filter replacement authorized. cycle) display After 6 months, the following sentence and function part of the LED.
-
Page 14: Refreshment Center (Applicable To Some Models Only)
Refreshment center (Applicable to some models only) How to use Open the refreshment center door. You can access the refreshment center without opening refrigerator door and thus saving electricity. Inner lamp is lit in refrigerator compartment when the refreshment center door opens. Thus it is easy to identify the contents. -
Page 15: Shelf (Applicable To Some Models Only)
Shelf (Applicable to some models only) Folding Shelf You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf. Wine holder (Applicable to some models only) Wine holder Bottles can be stored laterally with... -
Page 16: Humidity Control In The Vegetable Compartment
Humidity control in the vegetable compartment The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetables or fruits. High humidity HIGH Low humidity Convert into a vegetable or meat compartment (Applicable to some models only) The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment The meat compartment maintains the temperature at a lower point than the... -
Page 17: Miracle Zone Temperature Transition Corner (Applicable To Some Models Only)
Miracle Zone Temperature Transition Corner (Applicable to some models only) By pressing the button, store vegetables, fruits or other types of food such as meat to be defrosted, raw fish, etc. Temperature Change at Miracle Zone (Applicable to some models only) Method to Use You can select optimum temperature range depending on... -
Page 18: Location Of Foods
Location of foods (Refer to identification of parts) Wine holder Store wine. Snack drawer Store small foods such as bread, snacks, etc.. Freezer Store various frozen foods such as meat, fish, compartment ice cream, frozen snacks, etc.. shelf Store small packed frozen food. Freezer Temperature is likely to increase as door compartment... -
Page 19: Storing Foods
Storing foods Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food which goes bad easily at low temperatures, such as bananas, and melons. -
Page 20: How To Dismantle Parts
How to dismantle parts NOTE Dismantling is done in the reverse sequence of assembly. • Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged. Freezer Separate the lamp by pulling it out (➂) while compartment slightly striking (➀) and rotating (➁) the lamp cover. -
Page 21: Refreshment Center
To remove the lamp cover, press the protrusion under the lamp cover to the front and Lamp in then pull the lamp cover out. refrigerator Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be compartment purchased at a service center. -
Page 22: General Information
General information During average length vacations, you will probably find it best to leave the refrigerator Vacation time in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation. -
Page 23: Troubleshooting
Trouble shooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Occurrence Possible cause Runing of refrigerator Refrigerator control is off. - Page 24 Occurrence Possible cause Refrigerator Thermostat is keeping the refrigerator compressor at a constant temperature. does not run. Temperatures are too cold Temperature in the Freezer control is set too cold freezer is too cold but the refrigerator temperature is satisfactory. Temperature in the Refrigerator control is set too cold.
- Page 25 Occurrence Sound and noise Louder sound Today’s refrigerators have increased levels when storage capacity and maintain more refrigerator is on. even temperatures. Louder sound Refrigerator operates at higher pressures levels when during the start of the ON cycle. compressor comes on. Vibrating or Floor is uneven or weak.
- Page 26 Occurrence Odors in refrigerator Interior needs to be cleaned. Food with strong odor is in the refrigerator. Some containers and wrapping materials produce odors. Opening/Closing of doors/Drawers Door(s) will not Food package is keeping door open. close. Door(s) will not Door was closed too hard, causing other close.
- Page 27 Occurrence Possible cause Ice has melted and frozen around auger Dispenser will not dispense due to infrequent use, temperature ice. fluctuations and/or power outrages. Ice dispenser Ice cubes are jammed between the ice is jammed. maker arm and back of the bin. Ice cubes are frozen together.
