PNI Safe House HS540
WIFI smart valve / Valva inteligenta WIFI
User manual / Manual de utilizare

1. Product description

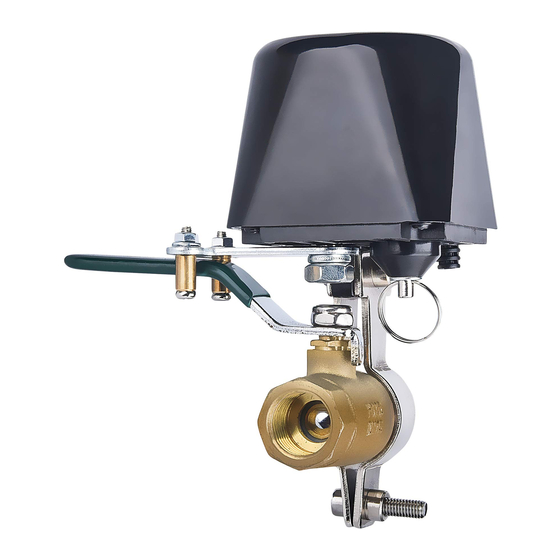

Thank you for choosing PNI HS540 WIFI smart valve
controller. This product can be controlled remotely from dedicated
smartphone app. and it helps you to close/open any gas/water source.
It's WIFI international technology fully compatible : 2.4 Ghz WIFI
network.
2. Product specifications
Power supply voltage
Communication technology
Frequency of communication
Power
Valve pressure
Valve specifications
Close valve time
Open valve time
Torque
Application System Application

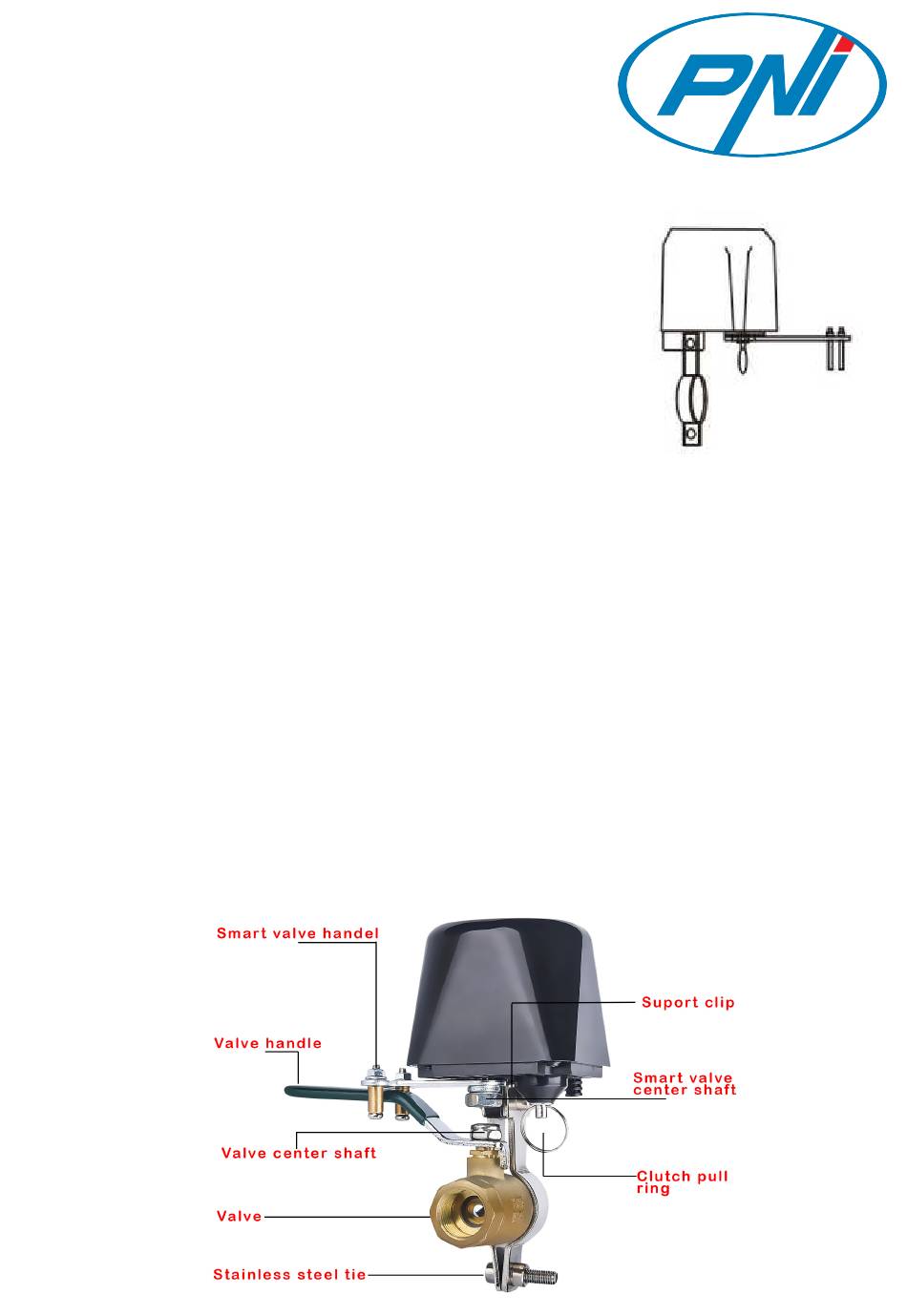

2. Installation Guide

Install the bracket on the installation ear of the smart valve controller (screw is not tightened first).
①
Fix the mounting bracket on the water pipe or gas pipe (as shown in the figure).
②
Adjust the position of the smart valve controller, so that the output axis of the smart valve
③
controller is in line with the axis of the "water/gas pipe" valve handle. (Fig.) Then tighten the screw
at both ends of the mounting bracket. After the installation of the smart valve controller, Manually
pull down the clutch pull ring, Swing The smart valve controller Transfer handle,Check if the valve
switch is in place.
Tighten the screw of the smart valve controller handle clip according to the diagram
④
Connect the power adapter of 12V/1A.
⑤
12V/1A ( adapter included)
WIFI b/g/n
2.4Ghz
0.1W
1.6 mpa
1/2, 3/4, 1 inch, 1.25 inch
5-10 seconds
5-10 seconds
30-60 kgf.cm
IOS/android
Handle valve
