CipherLab RS50 Quick Start Manual

RS50 Charging & Comm. Cradle
Quick Start Guide
Basics
Open Your Box
a
RS50 Charging & Communication Cradle
a
Micro USB Cable
a
Adapter plus power cord
a
Quick Start Guide
The RS50 Charging & Communication Cradle allows charging and data transmission of the RS50
Mobile Computer. Aside from a main charging station, the Cradle is equipped with a spare battery
chamber, which helps maintain a charged spare battery for your convenient use.

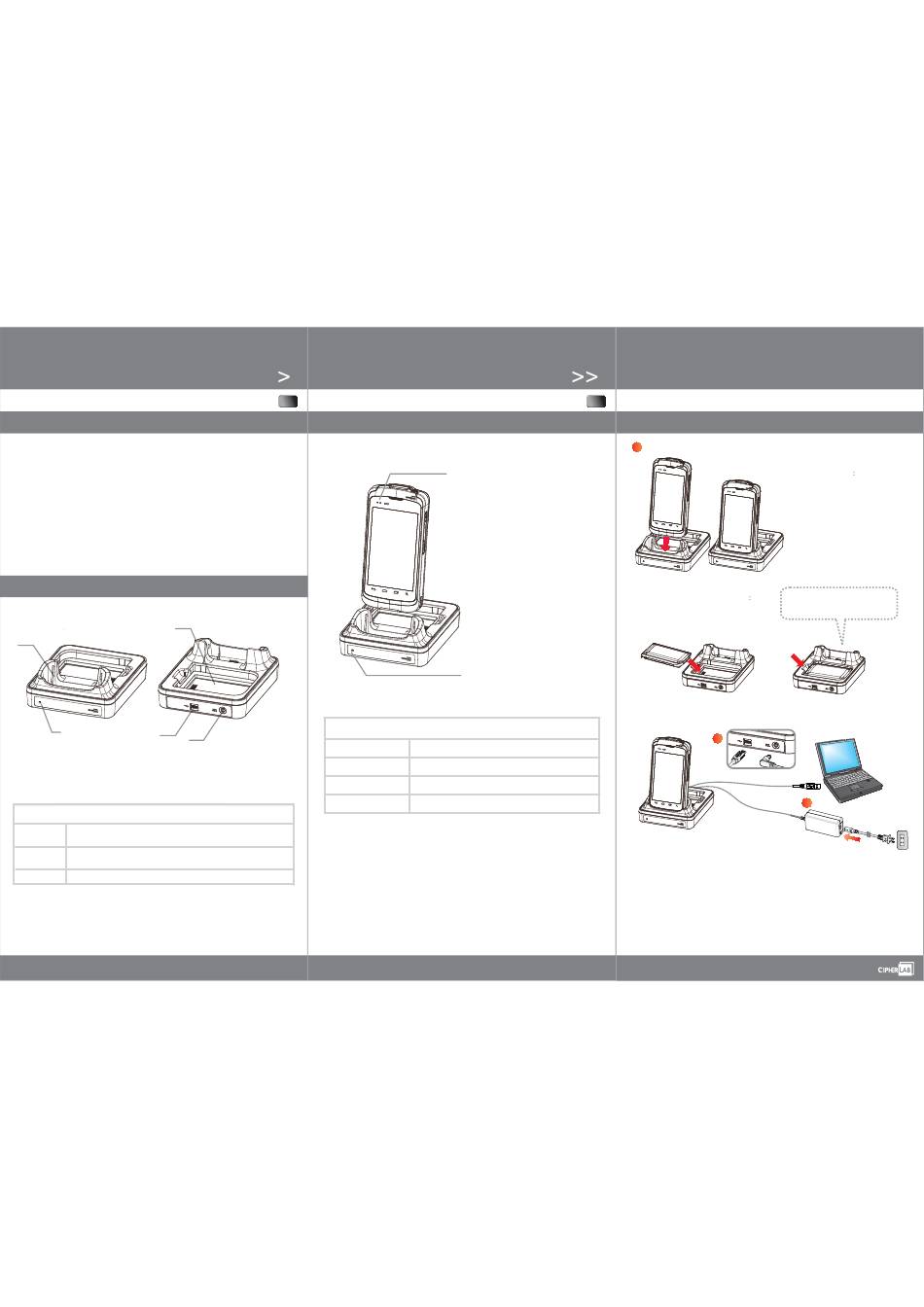

Overview
3
1
2
4
1. Main Charging Station (for RS50 Mobile Computer) 3.
2. Spare Battery Charging Station Status LED 4.
5.
Important Charging Information
Power Supply Input: AC 100-240V, 50-60Hz; output: 5V/4A
CipherLab approved
Battery Pack 3.8V, 4000 mAh /3.75V, 5300mAh (Standard/Extended) rechargeable
(optional) Li-ion, CipherLab proprietary
Charging Time Approx. 5 hours/6 hours (Standard/Extended battery)
www.cipherlab.com
EN
LED Indicators
LED Indicator
5
Green, solid
Spare Battery Charging Station
Red, solid
Micro USB Receptacle
Red, blinking
Power Jack
Red, blink once
EN
For charging status of main charging station, please
see LED on mobile computer.
For charging status of spare battery charging
station, please see LED on Cradle.
Battery is fully charged
Battery is charging
Battery charging error
Adapter is plugged in but no battery
Charging and Communication
1
Main charging station
Place mobile computer onto Cradle.
Note:
To extend the endurance of the connector
pin, please plug and unplug the device
smoothly, with a vertical movement.
Spare battery charging station
To remove battery:
Pull the latch to remove the battery
Insert battery with contact pins facing
down and press upper end in.
2
Step 1: Place RS50 Mobile Computer in the main charging station.
Insert battery in the spare battery charging station.
Step 2: Plug in USB connecter for data transmission and/or adapter plug for charging.
(To charge both RS50 Mobile Computer and the spare battery at the same time, be sure
to have the adapter plugged in.)
Step 3: For data transmission, connect USB cable to PC.
For charging, connect power cord to adapter and plug power cord to electrical outlet.
LED on Cradle or Mobile Computer will light up in green or red depending on the battery
level at the moment.
3
