Brizo TALO Series Manual

Brizo TALO Series Manual

High-rise pull-down kitchen and bar / prep faucets
Hide thumbs Also See for TALO Series:

Advertisement

Quick Links

ASME A112.18.1 / CSA B125.1
ICC/ANSI A117.1
Models/Modelos/Modèles
63003LF & 63903LF
Series/Series/Seria
®
TALO
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.

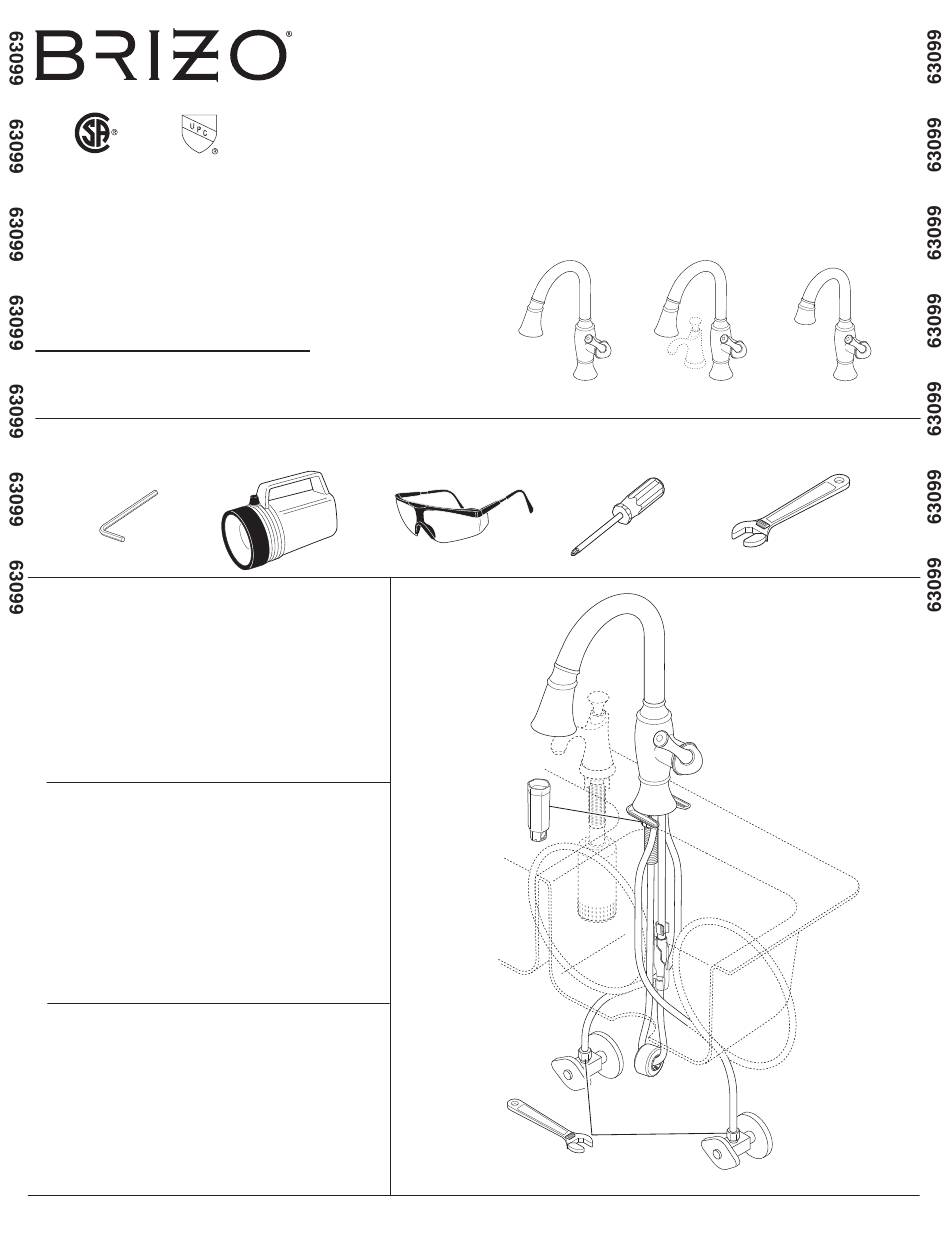

You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your
®
Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
Para instalación fácil de su llave
®
Brizo
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet
®
Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
HIGH-RISE PULL-DOWN KITCHEN
AND BAR / PREP FAUCETS
LLAVES DE AGUA ELEVADAS,
DESLIZABLES HACIA ABAJO,
PARA COCINAS Y BARES / PREP
ROBINET À COL DE CYGNE ET
BEC-DOUCHETTE POUR ÉVIER
DE BAR OU D'ÎLOT DE CUISINE
1
9/8/10
Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the TALO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Brizo TALO Series

  • Page 1 Inscrivez le numéro de modèle ici. You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin: For easy installation of your ® Brizo faucet you will need: • To READ ALL the instructions completely before beginning. • To READ ALL warnings, care, and maintenance information.
  • Page 2 RP60266▲ Bar Spout Assembly with Magnet Ensamble del Tubo de Salida RP60265▲ Kitchen Spout Assembly with Magnet Ensamble del Tubo de Salida RP60269 RP60268▲ RP60267▲ Friction Ring Bar Sprayer Assembly Kitchen Sprayer Assembly Anillo de la fricción Ensamble de rociador Ensamble de rociador Boucle de frottement Pulvérisateur...
  • Page 3 Plunger Embolo Plongeur Sistema de protección contra el contraflujo Su llave de agua tipo deslizable Brizo ® tiene un sistema de protección para el contraflujo, incorpora, que ha sido probado para cumplir con los requisitos de ASME A112.18.3 y ASME A112.18.1 / CSA B125.1. Este incorpora dos válvulas de retención o checadoras certificadas en una...
  • Page 4 OPTIONAL Mount Faucet to Deck Optional Escutcheon Installation Remove adhesive backing on base gasket (1) and Install the mounting bracket (1) and nut (2) onto the For optional installations using the 10" press into place on faucet base (2). Insert faucet mounting shank (3) using wrench (4).
  • Page 5: Hose Installation

    Hose Installation Press fit hose guide (1) into end of hose (2) as shown. Thread the spray head (3) Turn spout opposite handle to aid hose installation. Feed hose (1) up through onto the hose fitting (4) to prevent the hose from being pulled into the spout until spout (2).
  • Page 6 Soap Dispenser Installation - Accessory Order Only Separate head (1) from body assembly (2). Make sure gasket (3) is properly seated in the base of the body assembly. Insert body Insert check-valve adapter (1) into pull-out hose fitting (2). Ensure weight does not assembly through selected hole in sink.
  • Page 7: Water Line Connections

    Water Line Connections Potential Problems and Remedies acceptable installation, be sure to read the instructions and plan ahead. When cutting the ● Tubing is not cut perpendicular to the axis of the Ensure all fittings and end connections are free of debris. supply tubing the installer accepts the responsibility tube: carefully make an additional cut, being careful Faucet fittings (1) are 3/8"...
  • Page 8 Correct method Incorrect Installation Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve Ensure cut is straight. upside down. No instale la manga Asegúrese que el corte boca abajo. esté recto. Custom Fit Connections - Plastic Sleeve Installation Instructions 1.
  • Page 9 Turn on hot and cold water supplies (1). Pull the hose assembly (2) out of Sprayer will lock into position when brought into proximity of the the spout and remove the sprayer (3). Be sure to hold the end of the hose spout magnet.
  • Page 10 Maintenance Cleaning and Care If faucet exhibits very low flow – bonnet nut (6) by rotating counterclockwise with a Care should be given to the cleaning of this product. Unscrew hose from spray head and clean wrench. Remove cartridge (7) by pulling directly back Although its finish is extremely durable, it can be on stem.
  • Page 11 (Discard) (Descarte) (Mis dans le détritus) Optional Temperature Indicator Ring If required, a red / blue temperature indicator ring can be installed on the faucet handle. Remove handle cover (1) and black ring (2). Remove red / blue ring (3) from adhesive sheet and replace black ring as shown.
  • Page 12 This warranty excludes all industrial, commercial & business usage, whose purchasers are parts may be obtained by calling 1-877-345-BRIZO (2749) (in the U.S. and Canada) or by hereby extended a five year limited warranty from the date of purchase, with all other terms of writing to: this warranty applying except the duration of the warranty.
