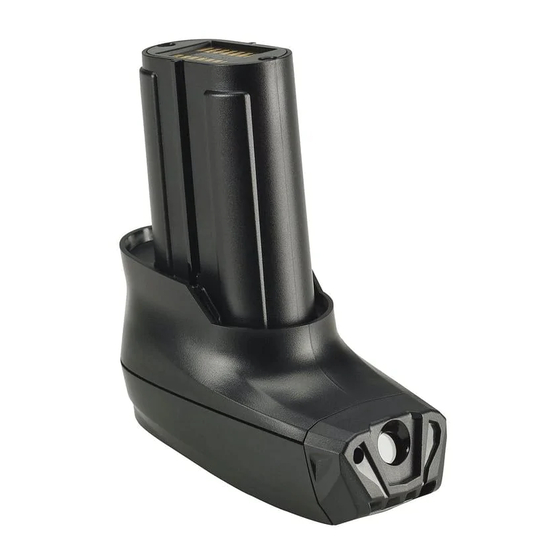

- Page 1 TASER® CAM™ HD Battery Replacement Guide Page 1 of 9...
- Page 2 Battery Safety Information Note: See the TASER CAM HD Operating Manual for complete cautions, warnings, and instructions for using the TASER CAM HD recorder. Failure to maintain the TASER CAM HD battery as instructed may cause the battery or system to malfunction or fail to function properly or optimally.
- Page 3 Static electricity can cause damage to the battery, which could result in serious injury. Replacement: The rechargeable battery in the TASER CAM HD system may be replaced by a qualified technician. Do not use any battery other than those designated by TASER. Doing so may cause battery explosion, battery leakage, system damage, injury, or fire.
- Page 4 Parts Required The TASER CAM HD replacement battery kit includes: 1 lithium ion battery 2 replacement screws You also will need a Torx T5 x 60 screwdriver (not included but pictured below). Page 4 of 9...
- Page 5 Use the Torx screwdriver to remove the two screws in the top of the unit. Using any tool not specifically designed for Torx fasteners may damage the screws and/or the TASER CAM HD recorder. Carefully remove the plastic cover. Page 5 of 9...
- Page 6 Unplug the old battery. Be careful not to pull on the wires; only pull on the connector. With the battery disconnected, remove the old battery from the unit. Page 6 of 9...
- Page 7 There is an electronic component surrounding the flexible flat cable at the bottom of the battery well. Avoid hitting it with the battery, or the battery will not seat properly. Insert the new battery in its place (make sure to insert the battery in the same orientation –...
- Page 8 Ensure the flexible flat cable connector latch is fully closed Close the top and ensure it is correctly positioned in place: Take care to ensure the flat flexible connection is not damaged or forced out of alignment during the re-assembly process. ...
- Page 9 Torx is a trademark of Acumen Global Technologies. TASER CAM is a trademark of TASER International, Inc., and TASER, © and ® are registered trademarks of TASER International, Inc., registered in the U.S. All rights reserved. © 2014 TASER International, Inc.
