RAB LOS800 Instructions

INSTRUCTIONS
LOS800 BAY SENSOR
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
SPECIFICATIONS AND FEATURES
• Indoor use only
• Operating Temperature: 32°F to 158°F (0°C to 70°C)
• Operating Humidity: 5% to 95%, noncondensing
• Line voltage for direct connection to load
• 120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation
• Power consumption: 0.2W
• Adjustable time delay and sensitivity
• Adjustable hold-off daylighting level
• Weight: 6.4 oz (181 g)
• UL listed snap-in mounting hardware
• Easy mounting using knockout at end of fluorescent high
bay luminaire
• Flexible mounting options
• UL listed
OPTICAL
• Lens (attached) designed for mounting heights from 15
to 40 feet
• Snap-on rotatable mask for aisleway applications (included)
• Covers a 100-foot diameter area when mounted at a height
of 40 feet
PIR Sensor , with IR remote capability

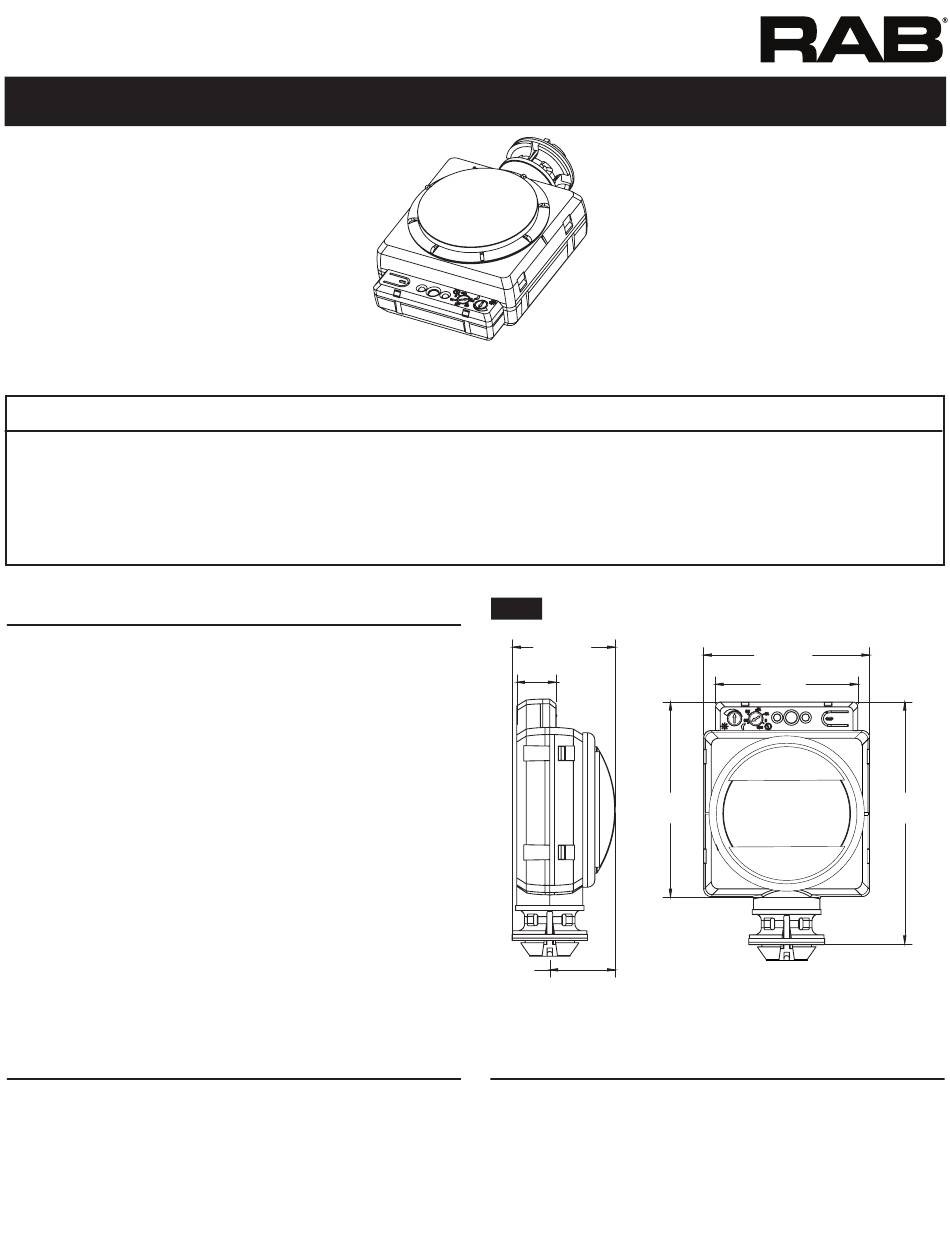

Fig. 1
1.09in
27.7mm
FACTORY DEFAULTS
• Time Delay: 15 minutes
• Sensitivity: Max
• Light Level: 300 footcandles
1.64in
41.8mm
.66in
16.7mm
3.23in
82mm
2.76in
70mm
2.36in
60mm
4.28in
108.7mm
