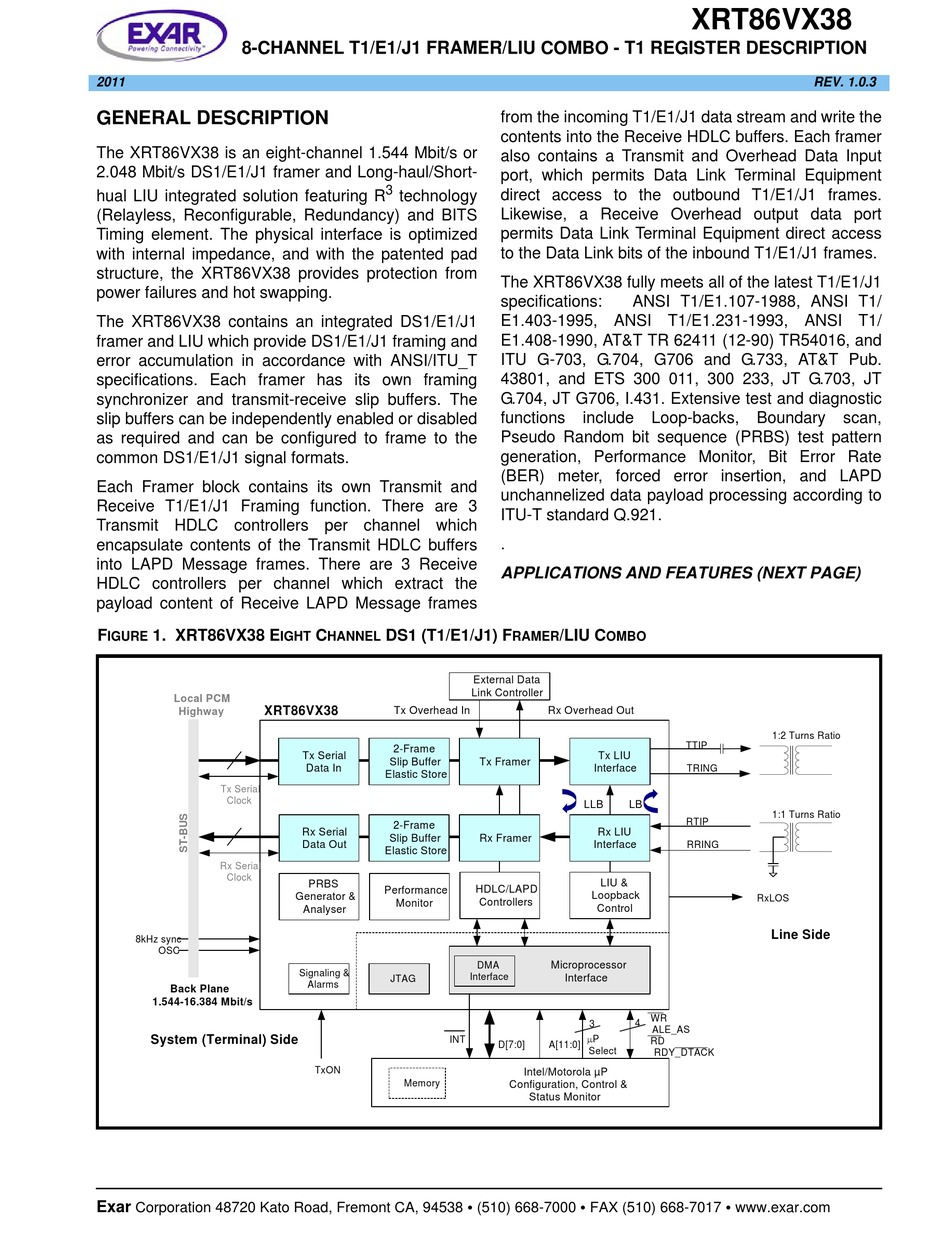

8-CHANNEL T1/E1/J1 FRAMER/LIU COMBO - T1 REGISTER DESCRIPTION
2011
GENERAL DESCRIPTION
The XRT86VX38 is an eight-channel 1.544 Mbit/s or
2.048 Mbit/s DS1/E1/J1 framer and Long-haul/Short-
hual LIU integrated solution featuring R
(Relayless, Reconfigurable, Redundancy) and BITS
Timing element. The physical interface is optimized
with internal impedance, and with the patented pad
structure, the XRT86VX38 provides protection from
power failures and hot swapping.
The XRT86VX38 contains an integrated DS1/E1/J1
framer and LIU which provide DS1/E1/J1 framing and
error accumulation in accordance with ANSI/ITU_T
specifications. Each framer has its own framing
synchronizer and transmit-receive slip buffers. The
slip buffers can be independently enabled or disabled
as required and can be configured to frame to the
common DS1/E1/J1 signal formats.
Each Framer block contains its own Transmit and
Receive T1/E1/J1 Framing function. There are 3
Transmit HDLC controllers per channel which
encapsulate contents of the Transmit HDLC buffers
into LAPD Message frames. There are 3 Receive
HDLC controllers per channel which extract the
payload content of Receive LAPD Message frames
F
1. XRT86VX38 E
IGURE
Local PCM
XRT86VX38
Highway
Tx Serial
Clock
Rx Serial
Clock
8kHz sync
OSC
Back Plane
1.544-16.384 Mbit/s
System (Terminal) Side
Exar
Corporation 48720 Kato Road, Fremont CA, 94538
3
technology
C
DS1 (T1/E1/J1) F
IGHT
HANNEL
Tx Overhead In
2-Frame
Tx Serial
Slip Buffer
Data In
Elastic Store
2-Frame
Rx Serial
Slip Buffer
Data Out
Elastic Store
PRBS
Performance
Generator &
Monitor
Analyser
Signaling &
JTAG
Alarms
INT
TxON
Memory
from the incoming T1/E1/J1 data stream and write the
contents into the Receive HDLC buffers. Each framer
also contains a Transmit and Overhead Data Input
port, which permits Data Link Terminal Equipment
direct access to the outbound T1/E1/J1 frames.
Likewise, a Receive Overhead output data port
permits Data Link Terminal Equipment direct access
to the Data Link bits of the inbound T1/E1/J1 frames.
The XRT86VX38 fully meets all of the latest T1/E1/J1
specifications:
ANSI T1/E1.107-1988, ANSI T1/
E1.403-1995, ANSI T1/E1.231-1993, ANSI T1/
E1.408-1990, AT&T TR 62411 (12-90) TR54016, and
ITU G-703, G.704, G706 and G.733, AT&T Pub.
43801, and ETS 300 011, 300 233, JT G.703, JT
G.704, JT G706, I.431. Extensive test and diagnostic
functions
include
Pseudo Random bit sequence (PRBS) test pattern
generation, Performance Monitor, Bit Error Rate
(BER) meter, forced error insertion, and LAPD
unchannelized data payload processing according to
ITU-T standard Q.921.
.
APPLICATIONS AND FEATURES (NEXT PAGE)
/LIU C
RAMER
OMBO
External Data
Link Controller
Rx Overhead Out
Tx LIU
Tx Framer
Interface
LLB
LB
Rx LIU
Rx Framer
Interface
LIU &
HDLC/LAPD
Loopback
Controllers
Control
Microprocessor
DMA
Interface
Interface
4
3
P
D[7:0]
A[11:0]
Select
Intel/Motorola µP
Configuration, Control &
Status Monitor
•
•
(510) 668-7000
FAX (510) 668-7017
XRT86VX38
REV. 1.0.3
Loop-backs,
Boundary
1:2 Turns Ratio
TTIP
TRING
1:1 Turns Ratio
RTIP
RRING
RxLOS
Line Side
WR
ALE_AS
RD
RDY_DTACK
•
www.exar.com
