- Page 1 10 INCH LCD DIGITAL FISH FINDER OPERATION MANUAL Model：DF SERIES Doc No:：NLT-DFXXXX-SSEN Version：V160106...
-
Page 2: Table Of Contents
CONTENTS CONTENTS................ 2 SYSTEM DESCRIPTION ............1 Specifications ..............2 Performance ..............2 Environment ..............2 Operation ................3 Keyboard ................ 3 Operation ................4 Fixed key functions ............4 POWER ..............4 RANGE ..............4 SHIFT ..............4 GAIN & GAIN 1 & GAIN 2 ..........4 Color (single-freq fish finder) ........... - Page 3 Pic Speed ..............8 Auto Range ............... 8 Max A-Range ............. 8 Zoom ............... 8 Fish Alarm ..............8 Back Ground .............. 9 Pulse Width ............... 9 TVG ..............10 Noise Rej..............10 Echo Color .............. 10 Palette ..............10 Depth Alarm .............
-
Page 4: System Description
SYSTEM DESCRIPTION We thank you very much for your purchasing our fish finder. Please be sure to read this operation manual carefully and understand what it describes before operating this unit. Your fish finder will perform to the utmost of its ability only if it is operated and maintained in accordance with the correct procedures. -
Page 5: Contents
Specifications Performance Dimension: 264(H) x 270(W) x 93(D) mm Power: DC24V (19~36V) Fish finder will automatically shut down when overhigh voltage. Consumption: <24W Frequency & DF612 50/200kHz 600/600W Output power DF1011 50kHz 1500W DF2022 50/200kHz 700/700W DF5068 50/200kHz 1800/600W DF5088 50/200kHz 2000/1000W DF5099... -
Page 6: Operation

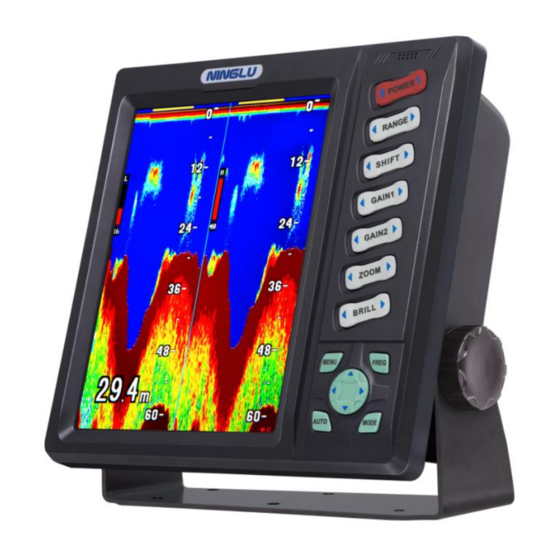

Operation Keyboard POWER Turn power off/on. RANGE Set depth range. Shift initial position of depth SHIFT range. GAIN 1 Adjust sensitivity of frequency 1. GAIN 2 Adjust sensitivity of frequency 2. Move the expanded area toward ZOOM sea surface or sea bottom. BRILL Adjust the brightness of display. -
Page 7: Operation
Operation Fixed key functions POWER 【POWER】button is used to turn on/off the system. “0” is off and “1” is on. RANGE 【RANGE】 button sets the depth range(how deep from the surface) showed on the screen: 5 10 20 30 40 50 60 80 100 120 150 180 200 250 300 400 500 600 800 1000 1500 2000m (22 optional values). -
Page 8: Operation
Operation Bottom-Z Bottom contour is indicated as a straight line and expansion view of certain area from its contour is shown. Zoom rate is set in MENU 1 Seabed Zoom: ×2.5, ×5, ×10. BRILL 【BRILL】key is used to adjust the LCD brightness. MENU 【MENU】button facilitates selection of MENU 1, MENU 2 and EXIT. -
Page 9: Arrows (Up▲/Down▼/Left / Right )
Expansion display a certain area. Arrows (UP▲/DOWN▼/LEFT / RIGHT ) UP▲/DOWN▼: Select the item of the MENU and adjust Pic speed. LEFT / RIGHT : Set values of item selected and adjust the echo color. MENU contents and factory setting Note: In the following MENU list, the factory setting is marked with grey back color, such as 100m. -
Page 10: Menu <2
MENU <2> Back Ground Grey Blue D-Blue Black Palette 0 1 2 3 4 5 Fish Alarm Off Small Big Depth Alarm Off Upper Zone Lower 1m ～ （Lower Limit-10）m Upper Limit （Upper Limit -10 ）m ～ 501m Lower Limit Pulse Width Short Standard Long Unit... -
Page 11: Setting On Menu
Setting on MENU Pic Speed On fish finder, the newest display (display just under the boat) is shown on the right edge of screen. At the same time previous display moves leftward. Display of fish finder is formed by repeating such movement. Pic speed is speed that display forwards. -
Page 12: Back Ground
Back Ground Reflected echo is indicated in different colors according to its strength. Visual image of display differs from surrounding brightness. It becomes easy to see the display by selecting different the background color. Select Back Ground color in MENU 1: Grey, Blue, D-Blue, Black. Pulse Width Normally pulse width is set to short automatically according to set displayed depth range. -
Page 13: Tvg
This function suppresses sensitivity shallower than approx. 100m and eliminates reflected signal form plankton and air bubble. Stronger TVG is set, sensitivity near sea surface decreases. When you make TVG too strong, response near sea surface disappears. On the other hand, when you make TVG too weak, response near sea surface becomes strong and you can not judge the image in some case. -
Page 14: Depth Alarm
Depth Alarm Depth alarm goes off within the 3 depth ranges. Set depth alarm on MENU 2: Upper Off, Upper, Zone, Lower. Zone Upper depth and Lower depth are set in MENU 2: Upper limit and Lower limit. Lower Upper Limit Set Upper depth alarm value. -
Page 15: How To Get The Steady Data
How to get the steady data The key to getting the steady data lies in the correct adjustment of GAIN & Color Del.. 【GAIN 1】/ 【 GAIN 2】 are used to adjust the sensitivity of signal received. GAIN may be adjusted from the min value to max value and you can get the appropriate sensitivity at one time point which comes before the time point of showing littery wave on screen. -
Page 16: Installation
Installation Operating unit installation Installation mode: Table Unit：mm... -
Page 17: Installation
Installation Connection Power Supply Wiring method: Positive → Pin 1 of 2-pin plug 1. DC+ Negative → Pin 2 of 2-pin plug 2. DC- VGA interface realizes external 15-32 inch LCD to display the echo graphics. -
Page 18: Transducer Wiring
Transducer wiring When using double channel, Channel 1 is connected with 50kHz and Channel 2 is connected with 200kHz. When using single channel, connect with Channel 1. DF612 -- BP60-200-15L DF1011 -- TGM60-50B-15L, wiring method: Shielded wire → Pin 1 of 5-pin plug Other signal wires →...
