Summary of Contents for LINET Combinea

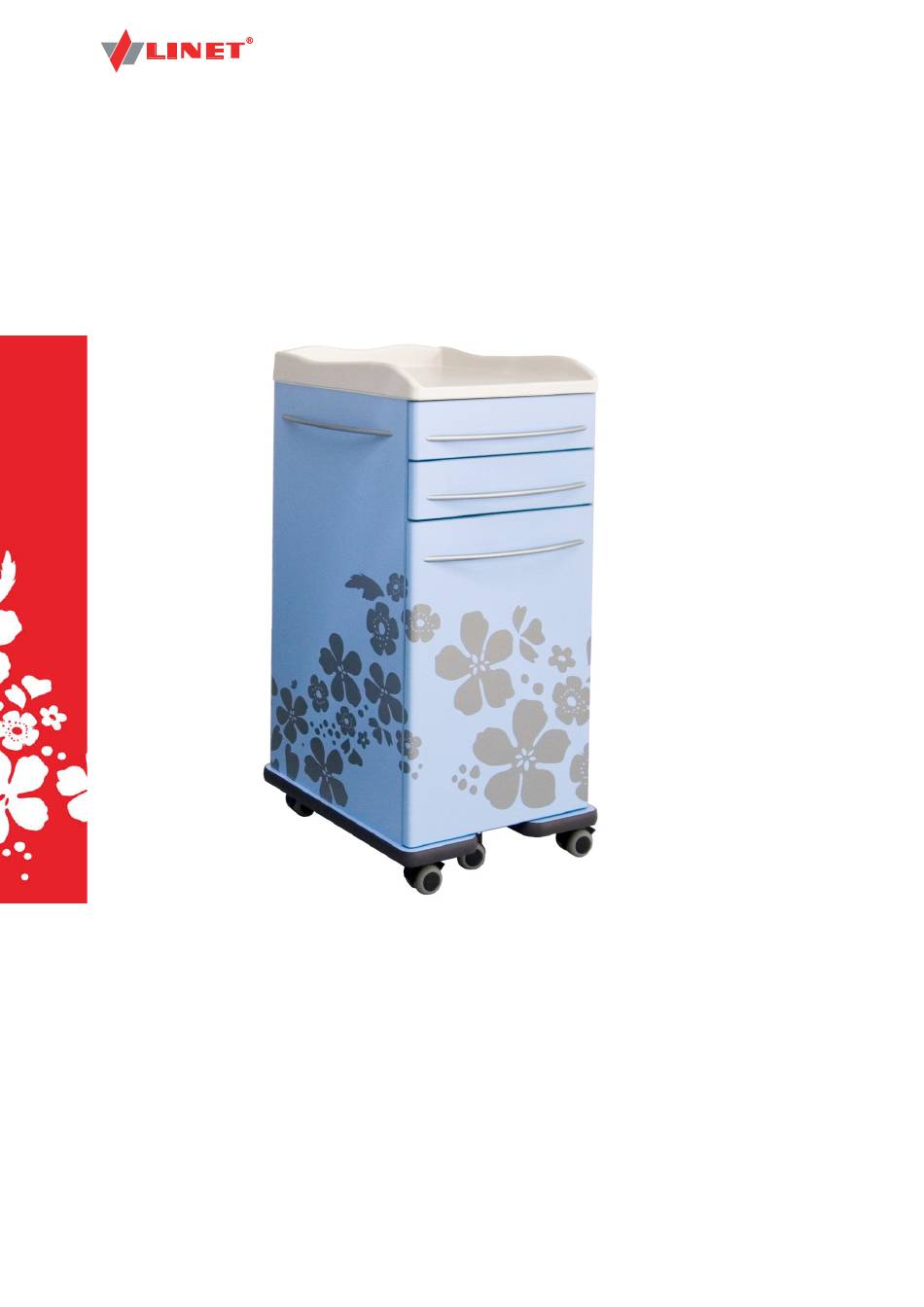

- Page 1 User manual Combinea, Combinea Plus Bedside cabinets 9200-0673 Version: 01 Printdate: 03/2015...
- Page 2 Manufacturer: Linet spol. s r. o. Želevčice 5 274 01 Slaný Czech Republic Tel.: +420 312 576 111 Fax: +420 312 522 668 E-mail: info@linet.cz http://www.linet.cz Combinea, Combinea Plus Bedside cabinets Author: LINET, s.r.o. Related links: www.linet.cz Version: 01 Print date: 03/2015 Copyright ©...
-
Page 3: Table Of Contents
Scope of Delivery and Cabinet Variants ................. 7 Scope of Delivery ..........................7 Cabinet Variants ..........................7 5 Combinea Cabinet Description ..................11 6 Operation ......................... 12 Drawers and Doors ........................... 12 Eating board ............................12 ... -
Page 4: Symbols
Result, if necessary. 1.2.2 Lists Structure of bulleted lists: List level 1 List level 2 Structure of numbered lists: List level 1 List level 1 List level 2 List level 2 Product: Combinea, Combinea Plus 4/20 Version:... -
Page 5: Symbols And Labels On The Product
(bed, furniture or devices), Bedside cabinets Combinea may be operated by hospitalized persons or with help of qualified personnel. Basic training how to operate the cabinet is done by manufacturer, distributor or qualified person. Training ... -
Page 6: Conditions Of Use
LINET®’s efforts in research, design and manufacture ensure LINET® products are of the highest quality and fit for their intended purpose. However, LINET® can take no responsibility for any damage to the products or any harm to patients, staff or other individuals resulting from: ... -
Page 7: Scope Of Delivery And Cabinet Variants
The cabinets are standardly delivered completely assembled and packed in protective PE foil in carton box. Cabinet Variants Variants of the Combinea cabinets with model number 4RA (for model number see product label) 4RA55121211E3 High cabinet, both-sided ... - Page 8 4RA6F011011D3 High cabinet, single sided with fridge Metal gallery Upper drawer Middle drawer Fridge – Dometic DS400 Removable shelf Dimensions: 54 x 54 x 94 cm Product: Combinea, Combinea Plus 8/20 Version:...
- Page 9 Variants of the Combinea Plus cabinets with model number 4RA (for model number see product label) 4RA55121111B1 High cabinet, both-sided Plastic, pressed top Upper drawer (accessible from both sides) Opened storage area (nika) Doors on both sides (opening angle: 100°) ...
- Page 10 High cabinet, single sided with fridge Metal gallery Upper drawer Middle drawer Fridge – Dometic DS400 Removable shelf Dimensions: 53 x 54 x 94 cm Castors Double castors Ø 50mm Product: Combinea, Combinea Plus 10/20 Version:...
-
Page 11: Combinea Cabinet Description

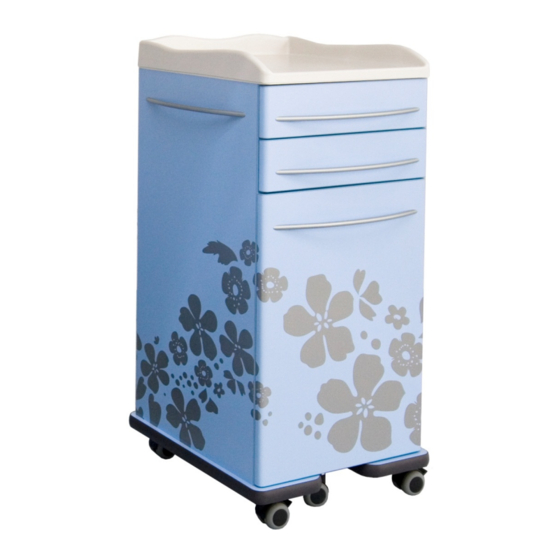

5 Combinea & Combinea Plus Cabinet Description Fig. 1 Combinea with eating board 1. Plastic pressed top 2. Height adjustment of the eating board mechanism 3. Eating board 4. Upper drawer 5. Opened storage area (nika) 6. Bottom drawer 7. Castor 50mm with individual brake 8. -
Page 12: Operation
It is necessary to brake the castors before operating the drawers. Drawers and Doors Combinea cabinets are equipped with different number of drawers depending on the model. Upper drawer is designed for storage of common daily usage things (glasses, phone, wallet etc.) and its maximum load is 5 kg. -
Page 13: Transport
Prior to table moving the castors should be unbraked. While moving the cabinet hold the metal handles at the upper desk or at the plastic pressed top of the upper desk (depending on the model). For movement is better to set eating board into the basic position inside the table body. Product: Combinea, Combinea Plus 13/20 Version:... -
Page 14: Cleaning And Disinfection
Do not use abrasive cleaning detergents as cleaning sand or steel wool. Avoid use of corrosive or caustic substances Do not use detergents forming lime Do not use chemicals changing structure and adhesion of plastics (solvents as acetone, toluene, gasoline) Product: Combinea, Combinea Plus 14/20 Version:... -
Page 15: 10 Troubleshooting
Ensure maintenance is performed by a LINET service engineer service or trained hospital technicians only. Service documentation and electrical schemes are available for qualified service organisation trained by Linet. Ensure the following maintenance work is performed every 24 months by the manufacturer or by a ... -
Page 16: 13 Disposal
Dispose of the cabinet or its components in accordance with local laws and regulations: After using the cabinet Following maintenance and installation work Hire an approved waste disposal company for disposal. Product: Combinea, Combinea Plus 16/20 Version:... -
Page 17: 14 Warranty
14 Warranty LINET® will only be held responsible for the safety and reliability of products that are regularly serviced and used in accordance with the safety guidelines. Should a serious defect arise that cannot be repaired during maintenance: Do not continue to use the cabinet. -
Page 18: 15 Technical Specification
Maximum load of top drawer 5 kg Maximum load of bottom drawer 10 kg Environmental Conditions Temperature +15 °C — +40 °C Humidity 30 — 75 % Atmospheric Pressure 795 — 1060 hPa Product: Combinea, Combinea Plus 18/20 Version:... -
Page 19: 16 Log
16.1 Delivery Log Order number: Customer: Model number: Serial number: Delivery date: Delivered by: I hereby confirm personnel have been trained to correctly operate the cabinet. Date: Customer‘s Signature and Seal: Supplier’s Signature and Seal: Product: Combinea, Combinea Plus 19/20 Version:... -
Page 20: Service And Maintenance Log
16.2 Service and Maintenance Log Description of Service Date Performed By 20/20 Product: Combinea, Combinea Plus Version:...
