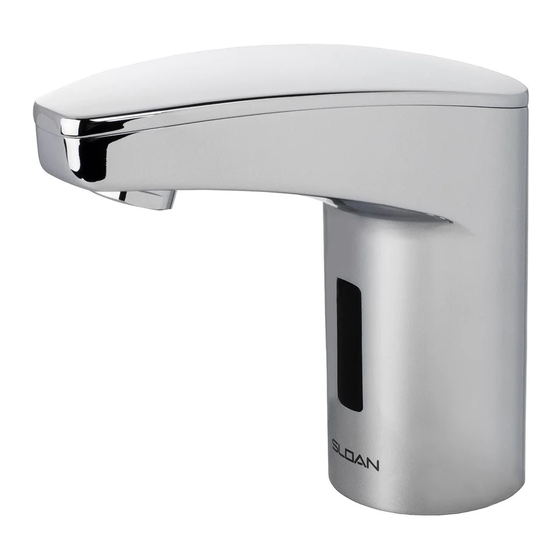

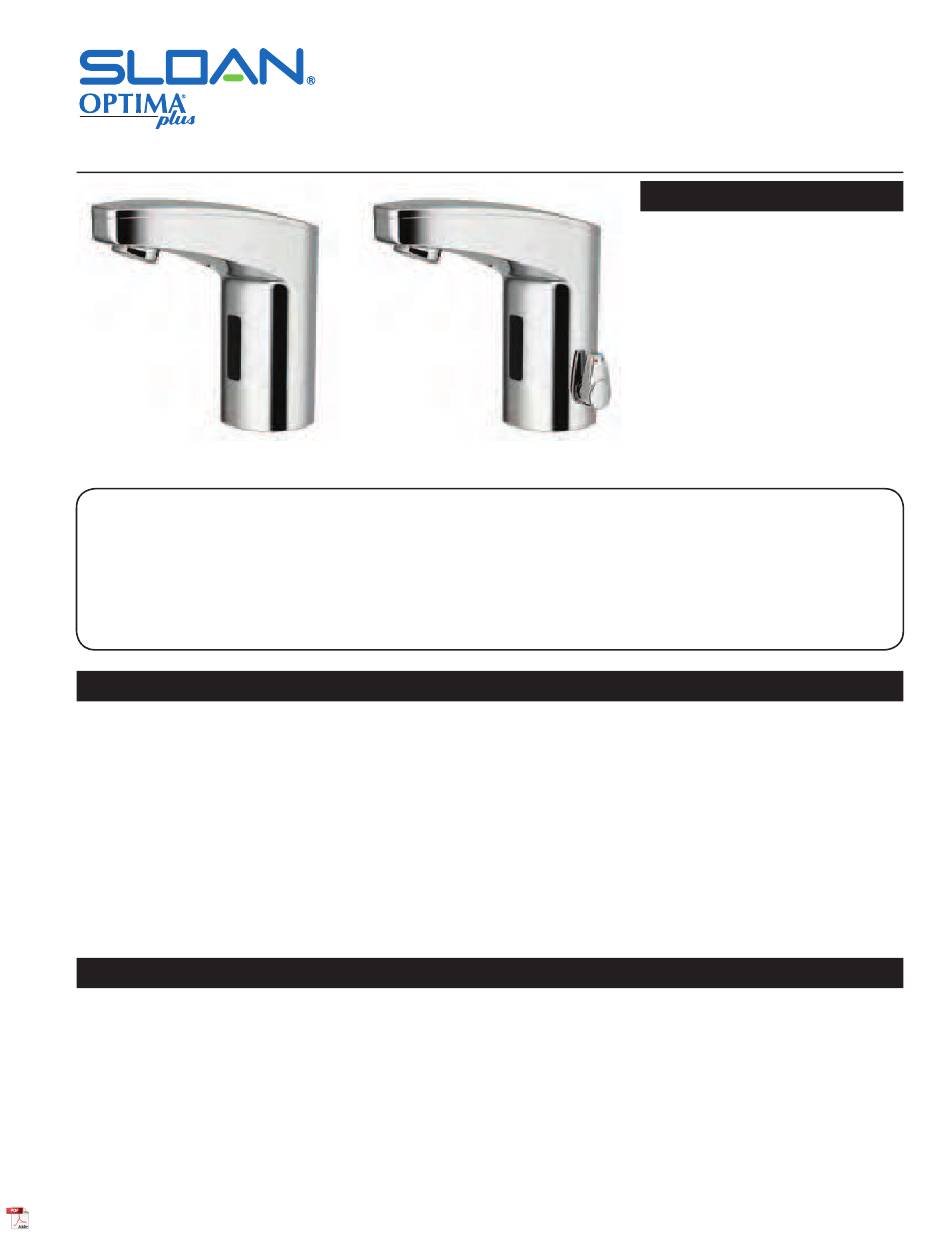

INSTALLATION INSTRUCTIONS FOR EAF-350 SERIES ELECTRONIC,
BATTERY-POWERED, SENSOR-ACTIVATED LAVATORY FAUCETS
Unless otherwise noted, Sloan Valve Company warrants its products, manufactured and sold for commercial or industrial uses, to be free from defects of material
and workmanship for a period of three (3) years (one (1) year for SF faucets, special fi nish and PWT electronics and 30 days on PWT software) from the date of
fi rst purchase. During this period, Sloan Valve Company will, at its option, repair, replace, or refund the purchase price of any produce which fails to confom with
this warranty under normal use and service. This shall be the sole and exclusive remedy under this warranty. Products must be returned to Sloan Valve Company,
at customer's cost. No claims will be be allowed for labor, transportation or other costs. This warranty extends only to persons or organizations that purchase
Sloan Valve Company's products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY
CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
PRIOR TO INSTALLATION
Prior to installing the Sloan OPTIMA Plus® EAF-350 Series faucets, install the
items listed below. Also, refer to rough-in illustrations.
• Lavatory/sink
• Drain line
• Hot/Cold water supply lines or pre-tempered water supply line
IMPORTANT:
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH APPLICABLE
CODES AND REGULATIONS.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO PREVENT
COMPONENT PART DAMAGE! DO NOT USE ANY SEALANT ON
COMPRESSION FITTINGS.
Tools Required for Installation
• 13mm open wrench or nut driver for faucet retainer nut
• 3/4" open end wrench for female end of fl ex hose
Limited Warranty
Trim Plates
When the EAF faucet is installed on a sink that has three (3) hole punchings,
a trim plate should be used. Trim plates must be specifi ed and ordered
separately.
ETF-312-A Trim Plate for 4" (102 mm) Centerset Sink
ETF-510-A Trim Plate for 8" (203 mm) Centerset Sink
Code No: 0816654
Faucet Variations
-ISM
Integral Spout Temperature Mixer
Rev. 3 (04/15)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sloan OPTIMA plus EAF 350 Series
Summary of Contents for Sloan OPTIMA plus EAF 350 Series
- Page 1 (3) years (one (1) year for SF faucets, special fi nish and PWT electronics and 30 days on PWT software) from the date of fi rst purchase. During this period, Sloan Valve Company will, at its option, repair, replace, or refund the purchase price of any produce which fails to confom with this warranty under normal use and service.
- Page 2 FAUCET ROUGH-IN EAF-350 EAF-350-ISM Side View 1.5 gpm (5.6 Lpm) Max. Flow or 1.5 gpm (5.6 Lpm) Max. Flow or 0.5 gpm (1.9 Lpm) Max. Flow 0.5 gpm (1.9 Lpm) Max. Flow 5-5/32” Faucets with Single Line Water Supply Faucets with Hot/Cold Water Supply 131 mm 4-3/64”...
- Page 3 2 - SLIDE GASKET OVER FLEX HOSE(S) AND SECURE FAUCET O-RING GASKET FAUCET RETAINER FLEX HOSE(S) 3 - INSTALL STRAINER AND FLEX HOSE ONTO SUPPLY STOP. OPEN SUPPLY STOPS. IMPORTANT: Flush dirt, debris, and sediment from supply line(s) before connecting flex hose(s). Install strainer and Open supply stop(s).
- Page 4 4 - REMOVE LABEL FROM SENSOR Remove Label from Sensor Window. Sensor Label 5 - ACTIVATE FAUCET Activate Faucet by holding installation instructions approximately 1-1/2” (38 mm) in front of the sensor window until red light appears, then remove instruction sheet. Faucet will run for four (4) seconds and the range will automatically adjust to its environment.
- Page 5 7 - BATTERY REPLACEMENT Note: Replace battery when RED LED indicator fl ashes each time faucet is in Insert a new 6V type CR-P2 lithium battery. use or when faucet stops functioning. The RED LED will fl ash for one (1) minute. Reinstall battery cover.
- Page 6 SENSOR RANGE ADJUSTMENT FACTORY SETTING IS APPROPRIATE FOR THE MAJORITY OF APPLICATIONS AND SHOULD NOT REQUIRE RESETTING UNLESS UNDER EXTREME SITUATIONS. IR activation (see page 5). To enter programming mode place Cover IR-Click (bottom half of sensor) until fi nger on IR-Click (covering bottom half of sensor) 1 time for LED fl ashes RED 4 times - hold IR-Click until 2 seconds and remove, GREEN light will come on.
- Page 7 Solution Rotate mixing valve handle clockwise to decrease water Water will stop fl owing, wait 10 seconds before using faucet. temperature or counterclockwise to increase water temperature. When assistance is required, please contact Sloan Technical Support at: 1-888-SLOAN-14 (1-888-756-2614)
- Page 8 Faucet Mounting Kit EAF-1008 13” (330 mm) Flexible Supply Hose (2 required for ISM models) EAF-9 Filter (2 required for ISM models) When assistance is required, please contact Sloan Technical Support at: 1-888-SLOAN-14 (1-888-756-2614) Sloan 10500 Seymour Avenue Franklin Park, IL 60131...
