Sloan TruFlush TRF 156-1.28 Installation Instructions

TRUFLUSH MANUAL CLOSET AND URINAL FLUSHOMETERS
TruFlush Models:

PRIOR TO INSTALLATION

This valve is designed for new construction or where there is easily accessed
plumbing for the fixture and the valve.This valve is designed for minimum six
inch (153 mm) wall space depth. Distance from center of the valve (inlet or
outlet pipe) to the finished surface of the wall can vary from 2"-3" (51-76 mm).

TOOLS REQUIRED FOR INSTALLATION

• Smooth-jawed wrench (at least 2") • Philips screwdriver • 5/64" hex wrench (supplied) • Wall plate depth guide- (supplied) • Adjusting tool- (supplied)

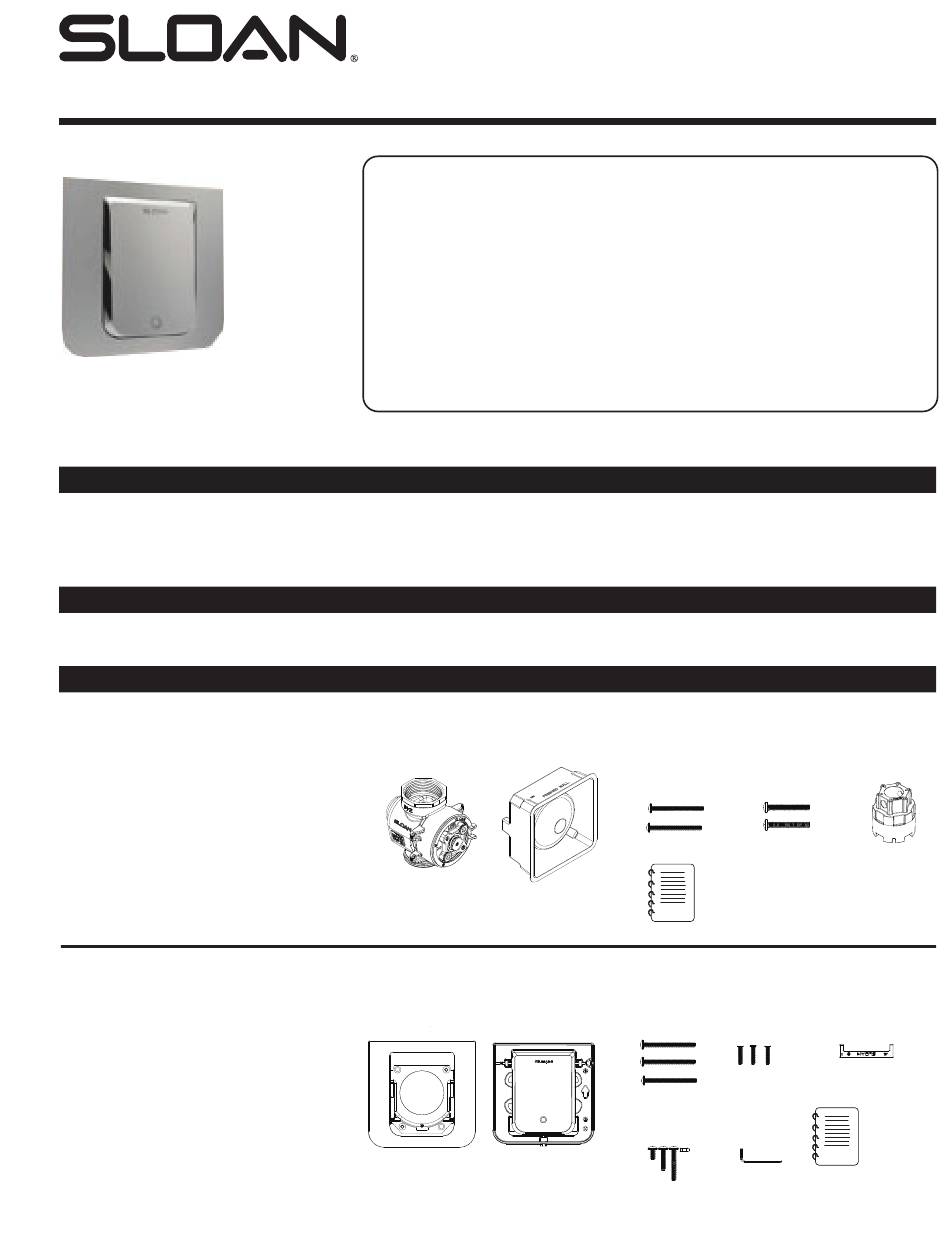

ITEMS INCLUDED WITH THE PRODUCT

VALVE BOX
1. Valve assembly
2. Mud Guard
3. (2) #10-32 x 2-1/2 screws to secure mud guard
4. (2) 1/4"-20 x 2" screws to remove activation assembly
5. Adjustment tool
6. Installation instructions
WALL PLATE BOX
1. Wall plate
2. Button and bracket assembly
3. (3) #10-32 x 2-1/2 screws to secure bracket to valve
4. (2) #8-32 x 7/8 screws to secure plate to valve
5. Depth setting tool
6. (3) #10-32 and locking nut for plunger
7. Allen Key
8. Installation instructions
INSTALLATION INSTRUCTIONS FOR
Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or
TRF 156-1.6
industrial uses, to be free from defects in material and workmanship for a period of three (3) years (one (1) year
TRF 156-1.28
for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase.
TRF 196-0.5
During this period, Sloan Valve Company will, at its option, repair, replace, or refund the purchase price of any
product which fails to conform with this warranty under normal use and service. This shall be the sole and
TRF 196-0.25
exclusive remedy under this warranty. Products must be returned to Sloan Valve Company, at customer's cost.
TRF 196-0.125
No claims will be allowed for labor, transportation or other costs. This warranty extends only to persons or
organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of
resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON
THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE
FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
1. Valve Assembly
1. Wall Plate

LIMITED WARRANTY

Wall plate opening must be minimum of 4" x 4" (102 x 102 mm) to
maximum of 4.5" x 4.5" (114 mm x 114 mm). Mud plate is provided and
must accompany valve for proper installation. Mud plate is removed after
wall is finished.
2. Mud Guard
2. Button/Bracket
Assembly
1
4. Activation Assembly
3. Mud Guard
Screws
Screws
6. Instructions
3.Bracket to Valve 4. Plate to Valve
Screws Screws
6. Locking nut for 7. Allen Key
Plunger Screws
Code No. 0816684
Rev. 5 (07/20)
5. Adjustment
Tool
5. Depth Setting Tool
8. Instructions
