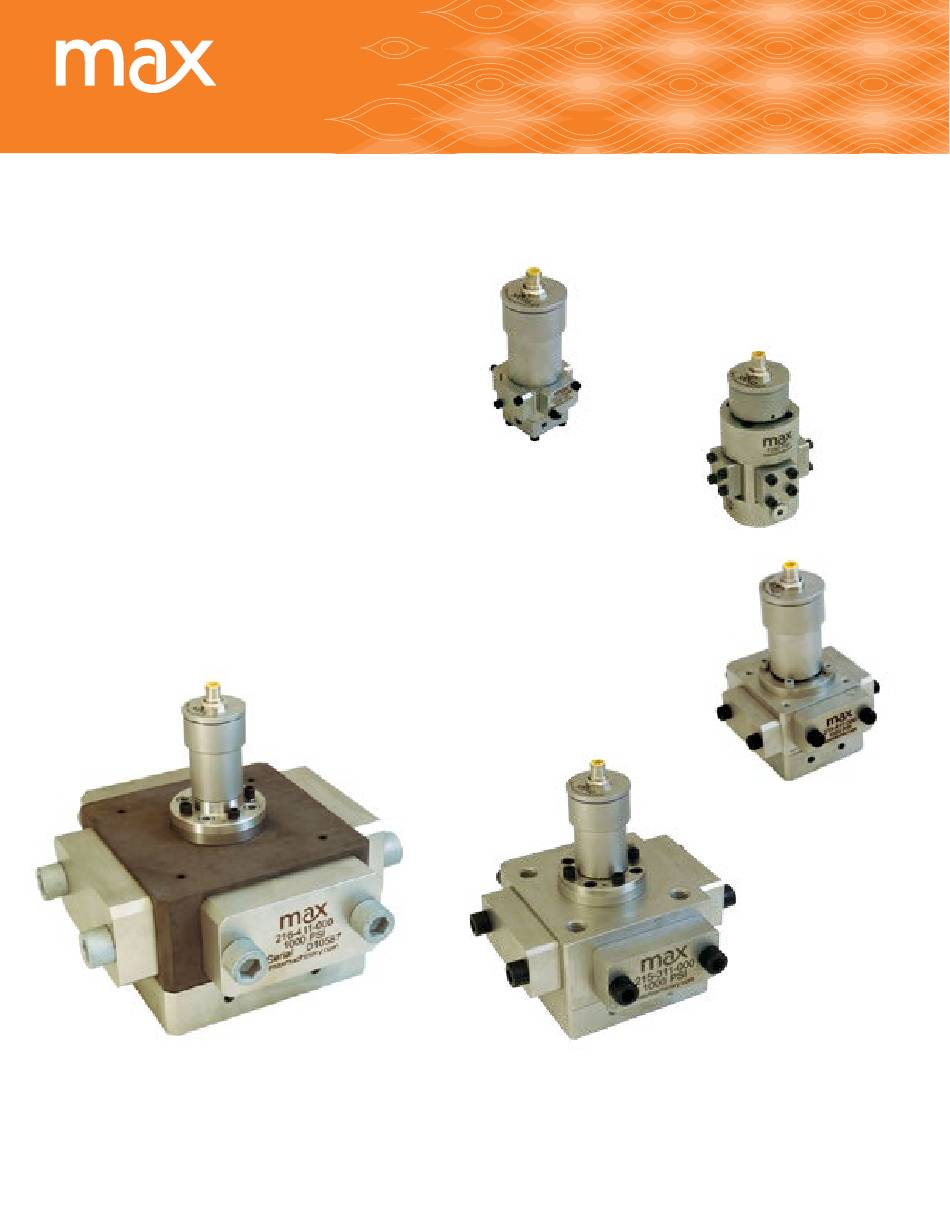

- Page 1 Positive Displacement Flowmeters Operational Manual Model Model For Models Model 213, P002, 214, 215 and 216 Model Model Model 210 Piston Series Positive Displacement Flow Meters Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4...
-
Page 2: Table Of Contents
DO NOT ATTEMPT TO INSTALL OR START FLOW METER WITHOUT READING THIS ENTIRE MANUAL Max Machinery, Inc. (MMI) reserves the right to make changes to the product in this Instruction Manual to improve performance, reliability, or manufacturability. Consequently, contact MMI for the latest available specifications and performance data. Although every effort has been made to ensure accuracy of the information contained in this Instruction Manual, MMI assumes no responsibility for inadvertent errors. -
Page 3: Before You Install
Before You Install Thank you for choosing to install a Max Machinery precision flow meter. To ensure the best experience please take a moment to read through this manual prior to installation. When you purchased this meter a flow engineer helped determine many of the factors that will be reviewed on the following pages. -
Page 4: Meter General Description
The accuracy of a piston flow meter is dependent on close tolerances in the cylinder wall and piston. Max Machinery regularly holds tolerances as fine as 0.00005 inches in the production of these meters. -
Page 5: Transmitter General Description
Reverse flow exceeding the buffer setting will result in an output proportional to reverse flow rate. The buffer quantity can be set from 1% to 100% of a revolution. 213 Standard 213 2-Part Pickup 213 Ex-Proof Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 6: Meter Specifications
For viscosities of 30 cps or more, derate per pressure drop curves for higher viscosities. Dependent on meter seal material, transmitter model, orientation and ambient temperature. See transmitter manual; consult factory. Some materials may have different filter requirements, consult factory. Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 7: Transmitter Specifications Analog
Temperature of metered fluid will affect transmitter temperature, see graph below Model 29X Transmitter Series 295 & 296 295 & 296 Standard High Ultra High temperature temperature 2 part pickup 2 part pickup Process Temperature °C Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 8: Transmitter Specifications Frequency (Pulse)
Software selectable from 1ms to 250ms time constant Full step change is subject to signal damping Temperature of metered fluid will affect transmitter temperature, see graph on previous page Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 9: Do's & Don'ts
These may be impossible to remove. If the meter needs to be removed for repair and cannot be completely cleaned. Plug the inlet and outlet ports at once. Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 10: Installation
FLOW METER VALVE 3 BYPASS FLOW METER Horizontal Two-Way Flow VALVE 3 BYPASS FLOW VALVE 1 VALVE 2 FILTER FILTER FILTER FLOW METER VALVE 3 VALVE 1 FLOW BYPASS Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 11: Operation
Open valve (#2) slightly. The flow meter may make unusual noises or bind at this point. Leave the valve at this setting until normal meter operation occurs, at which point valve (#2) can be gradually opened all the way. Slowly close the bypass valve (#3). Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 12: Electrical Installation - Wiring
** Signal output is fully isolated: If attached to a true differential input a 10K Ohm pulldown resistor should be installed between (—) and common at the receiving end. Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... - Page 13 Turck Connector Quadrature Wire Color Pin # Case Ground Case Blue Common Black Power 5-26 Vdc Brown Output Phase A Ph A White Output Phase B Ph B Grey Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4...
-
Page 14: Troubleshooting
1 revolution of reverse flow. An incorrect flow total can be reported if the pumping causes a flow and ebb of greater than 1 meter revolution. Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 15: 213 Piston Flow Meter
EX-PROOF HOUSING TOP VIEW TYPICAL PRESSURE DROP (Delta P versus Flow rate for various viscosities) —2 bar —1.5 bar —1 bar —0.5 bar 1000 2000 3000 Flow Rate (cc/min) Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 16: P002 Piston Flow Meter
BOTTOM VIEW EX-PROOF HOUSING TOP VIEW TYPICAL PRESSURE DROP (Delta P versus Flow rate for various viscosities) —2 bar —1.5 bar —1 bar —0.5 bar 1000 2000 3000 Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 17: 214 Piston Flow Meter
BOTTOM VIEW EX-PROOF HOUSING TOP VIEW TYPICAL PRESSURE DROP (Delta P versus Flow rate for various viscosities) —2 bar —1.5 bar —1 bar —0.5 bar 1000 Flow Rate (cc/min) Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 18: 215 Piston Flow Meter
BOTTOM VIEW BOTTOM VIEW TOP VIEW TYPICAL PRESSURE DROP (Delta P versus Flow rate for various viscosities) —2 bar —1.5 bar —1 bar —0.5 bar 1000 Flow Rate (cc/min) Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -

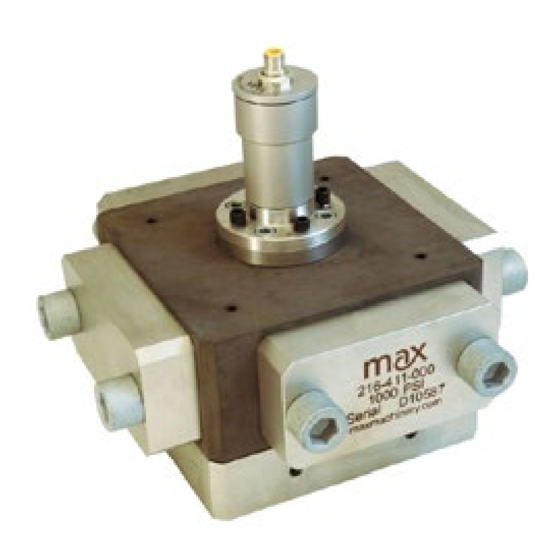

Page 19: 216 Piston Flow Meter
BOTTOM VIEW EX-PROOF HOUSING TOP VIEW TYPICAL PRESSURE DROP (Delta P versus Flow rate for various viscosities) —2 bar —1.5 bar —0.5 bar Flow Rate (L/min) Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4... -
Page 20: Contact For Repairs & Calibration Services
Max Machinery, Inc. Phone: 707-433-2662 33A Healdsburg Ave Fax: 707-433-1818 Healdsburg, CA 95448 www.maxmachinery.com Max Machinery, Inc. 210 Series User Manual © Copyright 2013 Rev. 002Q4...
